SYNERGY21 Fibre Optic Coupler LC Female to LC Female Multimode OM3 50/125µm Quad Aqua PVC

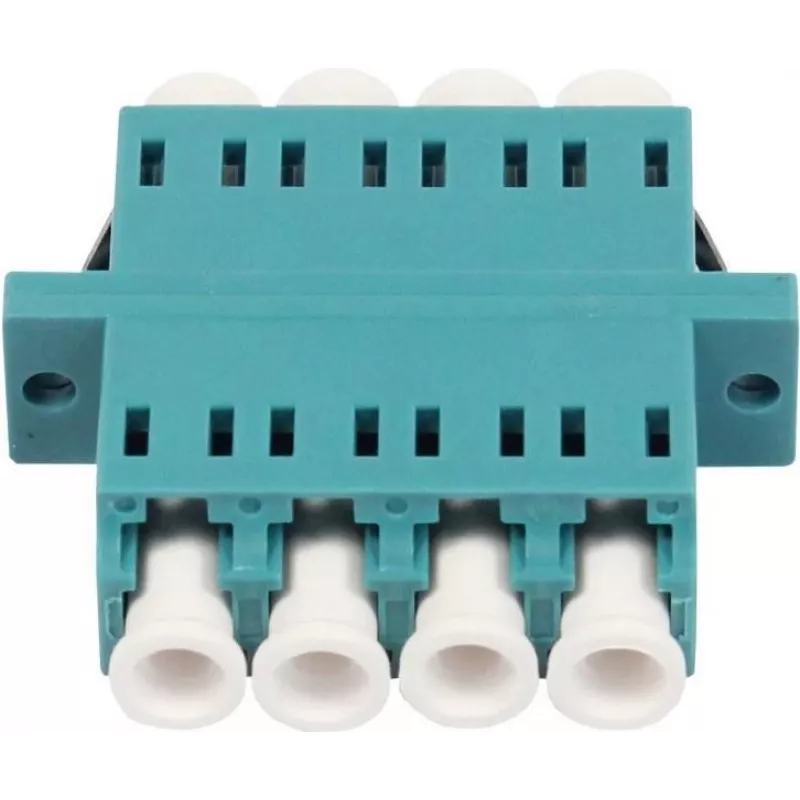

The SYNERGY21 S215690 fibre optic coupler is a high-performance LC adapter designed for reliable multimode OM3 connections. Featuring a quad configuration (duplex x 2) with four LC female ports, this coupler ensures low insertion loss and high return loss for demanding network environments. The aqua-coloured PVC housing with zirconia ceramic sleeves provides durability and stable performance over 500 mating cycles.

Advantages

This coupler offers exceptional signal integrity with typical insertion loss < 0.2 dB and return loss > 20 dB. Its compact quad design saves space in patch panels and enclosures, while the flanged mounting ensures secure installation. Compatible with all standard LC connectors, it is ideal for high-density fibre applications.

Suitable for

• Data centres requiring high-density fibre patching
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• FTTx deployments and telecommunications
• Multimode OM3 backbone cabling

Key specifications

• Connector Type: LC Female to LC Female
• Fibre Mode: Multimode OM3
• Core/Cladding: 50/125 µm
• Configuration: Quad (Duplex x 2), 4 ports
• Colour: Aqua
• Housing Material: PVC
• Sleeve Material: Zirconia Ceramic
• Insertion Loss: < 0.2 dB typical
• Return Loss: > 20 dB typical
• Durability: > 500 mating cycles
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, pair with SYNERGY21 OM3 patch cables and ensure clean fibre end-faces before mating. This coupler is a reliable choice for high-speed network infrastructure.
