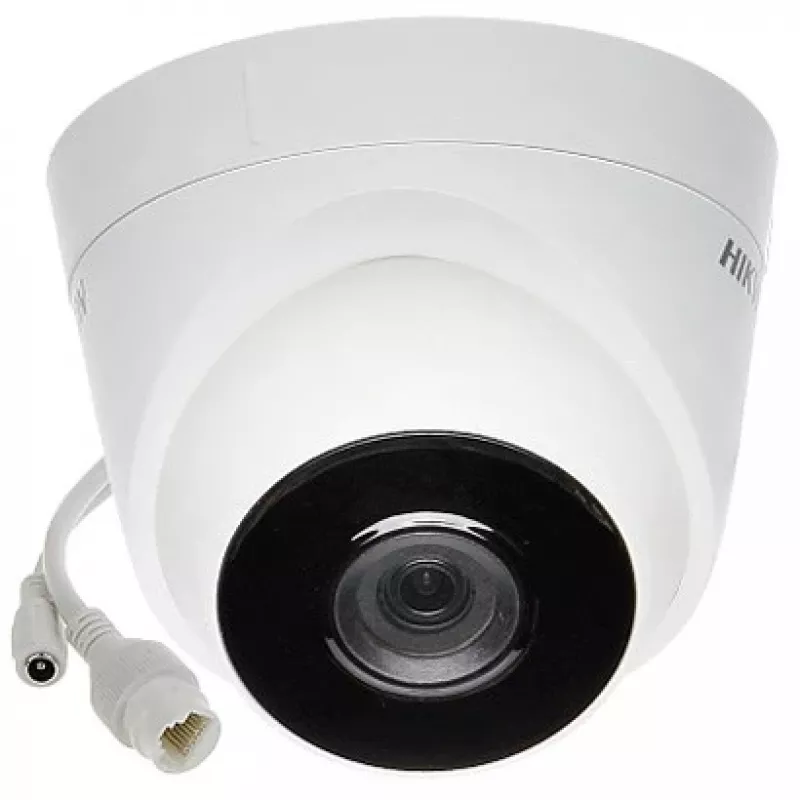

Surveillance Camera Hikvision DS-2CD1323G2-I 2.8MM 2MP IR

The Hikvision DS-2CD1323G2-I 2.8MM 2MP IR is a compact network surveillance camera that delivers 2-megapixel resolution with a fixed 2.8 mm wide-angle lens and built-in infrared illumination for low-light and night monitoring. Designed for both indoor and outdoor installations, the camera provides reliable image capture across varying light conditions and features an IP67-rated housing for protection against dust and water. Its small footprint and straightforward mounting options make it suitable for perimeter, entryway, and general area surveillance where unobtrusive monitoring is required.

Advantages

The camera offers clear 2MP video quality that balances image detail with efficient bandwidth use, while the 2.8 mm lens provides a wide field of view for broader scene coverage. Integrated infrared LEDs enable automatic transition to night mode to maintain visibility in darkness. With an IP67-rated enclosure, the unit resists dust and temporary immersion, supporting outdoor deployment. The compact design simplifies placement and makes the device adaptable to wall or ceiling mounting in diverse locations.

Suitable for

• Monitoring building entrances and small parking areas
• Indoor surveillance of offices, retail aisles, and corridors
• Outdoor perimeter observation where weather protection is required
• Supplementing multi-camera systems in residential or commercial installations

Key specifications

• Image sensor: 2 megapixels (Full HD resolution)
• Lens: fixed 2.8 mm wide-angle lens
• Night vision: built-in infrared illumination for low-light performance
• Weatherproofing: IP67-rated housing for dust and water resistance
• Mounting: compact form factor suitable for wall or ceiling installation
• Usage: suitable for both indoor and outdoor environments

How to use

Install the camera at a location that provides the desired field of view and is within reach of network and power connections. Mount the unit securely to a wall or ceiling using appropriate hardware; align the 2.8 mm lens to cover the target area and tighten the housing to maintain the IP67 rating. Connect the camera to your network recorder or PoE switch if supported, configure network settings and recording parameters through the Hikvision management interface or compatible VMS, and adjust exposure and IR settings as needed to optimize daytime and nighttime image quality.

Recommendations

For best results, position the camera to avoid direct light sources in the frame and maintain a clear line of sight free from obstructions. Regularly inspect seals and mounting points after extreme weather, and verify firmware and configuration settings to ensure consistent performance in both day and night conditions.
