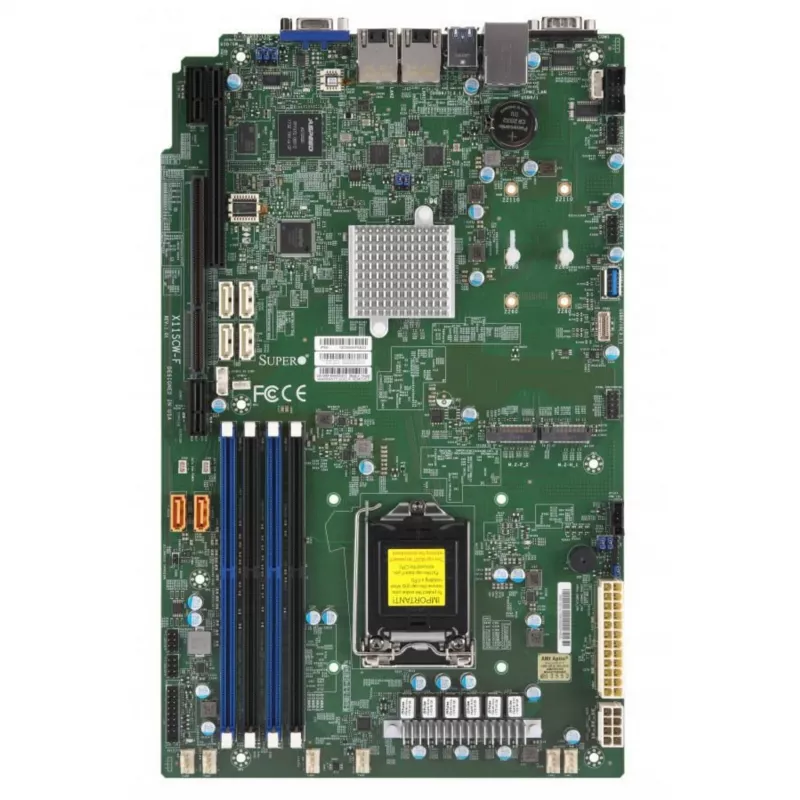

Supermicro X11SCW-F Motherboard LGA1151 Socket C246 Chipset Micro-ATX DDR4 128GB 2x Gigabit LAN IPMI Retail Pack

The Supermicro X11SCW-F is a high-performance Micro-ATX motherboard designed for Intel Xeon E-2100/E-2200 and 8th/9th Gen Core processors. Built on the Intel C246 chipset, it offers robust features for server and workstation applications, including dual Gigabit Ethernet, IPMI 2.0 remote management, and extensive storage options.

Advantages

Reliable and stable platform with enterprise-grade management capabilities. Supports ECC memory for data integrity, multiple PCIe 3.0 slots for expansion, and 8 SATA3 ports for storage. The integrated ASPEED AST2500 BMC provides remote KVM and virtual media support.

Suitable for

• Small business servers
• Workstations
• Network attached storage (NAS) builds
• Virtualization environments

Key specifications

• CPU Socket: LGA1151
• Chipset: Intel C246
• Form Factor: Micro-ATX
• Memory: 4x DDR4 DIMM slots, up to 128GB ECC UDIMM, 2666/2400/2133 MHz
• LAN: 2x Gigabit Ethernet (Intel I210-AT)
• USB: 2x USB 3.1 Gen 2 Type-A (rear), 2x USB 3.1 Gen 1 Type-A (rear)
• Storage: 8x SATA3 (6Gbps), 1x M.2 (M-key, PCIe 3.0 x4 / SATA)
• Expansion: 1x PCIe 3.0 x16, 1x PCIe 3.0 x8 (in x16), 1x PCIe 3.0 x4 (in x8), 1x PCIe 3.0 x1
• Graphics: ASPEED AST2500 BMC, 1x VGA
• RAID: Intel RSTe (SATA RAID 0, 1, 5, 10)
• Management: IPMI 2.0 with KVM over IP, Virtual Media over LAN
• Power: 24-pin ATX, 8-pin EPS

Recommendations

Ideal for users requiring a compact yet powerful motherboard with remote management. Pair with Intel Xeon E-2200 series and ECC memory for maximum reliability.
