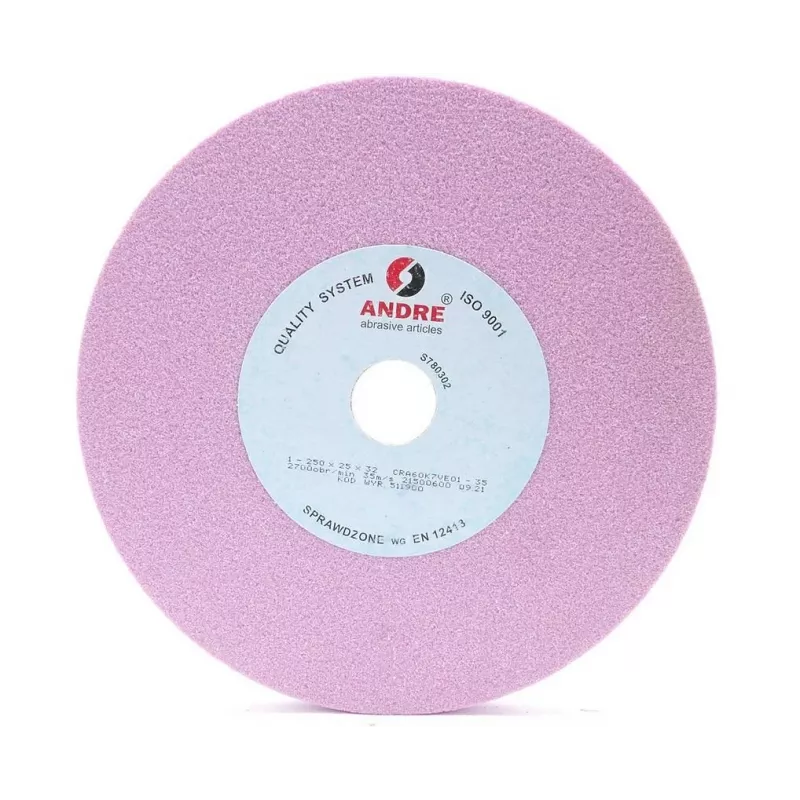

Flat Grinding Wheel 250mm x 25mm CRA60K7VE01-35, Corundum Grit 60, Vitrified Bond, 32mm Bore, 35 m/s

In a busy metalworking shop, a machinist mounts this 250 mm flat grinding wheel on a bench grinder to sharpen high-speed steel lathe tools and remove burrs from freshly cut steel plate. The wheel’s balanced construction and medium hardness deliver consistent stock removal without excessive loading, making it a dependable choice for daily maintenance and light production grinding.

Key specifications

• Diameter: 250 mm
• Thickness: 25 mm
• Bore diameter: 32 mm
• Abrasive: Corundum (aluminium oxide), grit 60
• Hardness grade: K (medium)
• Bond: Vitrified (ceramic)
• Structure: 7
• Maximum operating speed: 35 m/s (2670 RPM)
• Safety standard: EN 12413

Why choose it

The CRA60K7VE01-35 combines a medium grit size with a vitrified bond that wears evenly and resists glazing. Its flat profile (Type 1) provides a full-width cutting face for efficient surface grinding and tool sharpening. The 32 mm bore fits common bench and pedestal grinder spindles, and the wheel is rated for 35 m/s, ensuring safe operation on compatible machines.

Ideal use cases

• Sharpening HSS and carbon steel cutting tools
• Deburring and edge blending on steel and cast iron parts
• General purpose surface grinding in workshops and maintenance departments
• Light stock removal on non-ferrous metals when wheel is dedicated to avoid contamination

Good to know

Always inspect the wheel for cracks or damage before mounting and perform a ring test. Use blotters and flanges of equal diameter, and never exceed the marked speed. A wheel dresser is recommended to maintain flatness and expose fresh abrasive. Store wheels in a dry, frost-free environment away from solvents and moisture.
