LogiLink Adapter USB 3.0 to SATA with OTB - Speicher-Controller mit Datenanzeige, Netzanzeige, OneTouchEasy-Button (OTB) - SATA 3Gb/s - 3 Gbit/s - USB

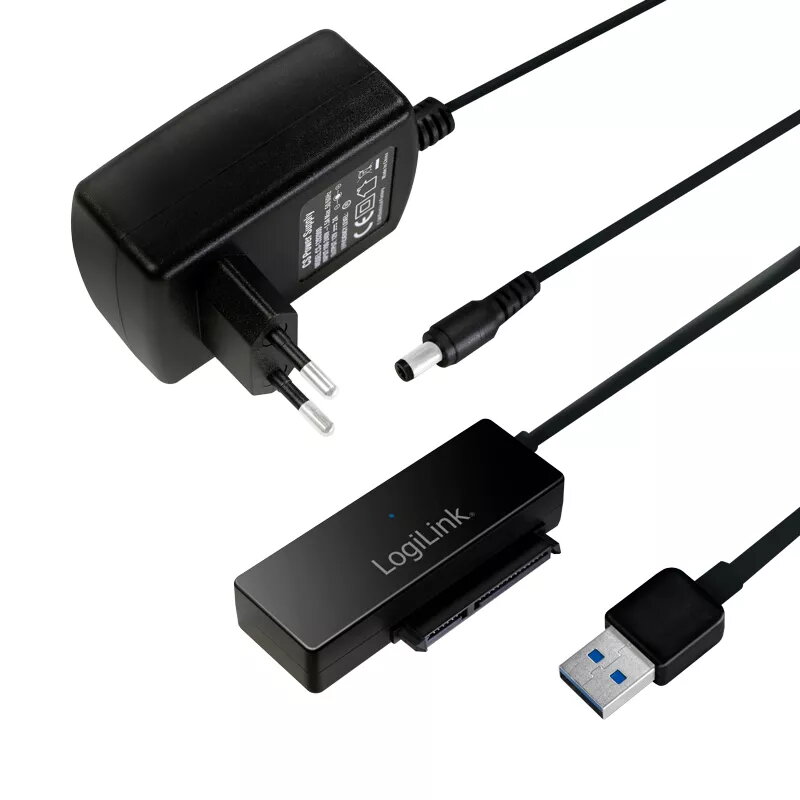

The LogiLink AU0050 is a storage drive docking station designed to provide quick access to 1.8", 2.5" and 3.5" SATA HDDs and SSDs. It supports SATA II and SATA III drives and connects to a host computer via USB 3.2 Gen 1 Type-A, delivering up to 5 Gbit/s theoretical transfer speed. The unit has a compact black housing, LED power indicators and requires a 12V, 2A external power supply. Compatibility covers common desktop and laptop environments running Windows and Mac OS X, making the AU0050 suitable for data transfer, backup and drive cloning tasks.

Advantages

The docking station accepts multiple 2.5" and 3.5" form factors plus 1.8" drives without internal adapters and supports both SATA II and SATA III standards for broad drive compatibility. The USB 3.2 Gen 1 Type-A interface enables faster data exchange compared with USB 2.0 connections, while the separate 12V, 2A power input ensures stable operation for 3.5" HDDs. LED power indicators provide basic status feedback during use. Its black exterior is designed to fit into typical office or home setups.

Suitable for

• Transferring data between SATA HDDs/SSDs and a PC or Mac
• Creating or restoring backups from standalone drives
• Short-term access to spare drives for file recovery or diagnostics
• Cloning a drive when used with cloning software on the host system
• Expanding temporary storage access for IT maintenance and testing

Key specifications

• Supported drive types: 1.8", 2.5", 3.5" SATA HDD and SSD
• SATA interface support: SATA II and SATA III
• Host interface: USB 3.2 Gen 1 Type-A
• Maximum data transfer rate: up to 5 Gbit/s (theoretical)
• Power input: 12V, 2A external adapter required
• Indicator: LED power/status indicators
• Colour: Black
• Compatible operating systems: Windows and Mac OS X

How to use

Insert a compatible SATA drive into the docking bay, ensuring the drive connector aligns with the SATA slot. Connect the supplied or appropriate 12V, 2A power adapter to the docking station and plug it into a mains outlet. Use a USB 3.2 Gen 1 Type-A cable to connect the AU0050 to the host computer; the system should detect the drive as an external storage device under Windows or Mac OS X. Perform file transfers, backups, or cloning operations using standard OS tools or third-party software. Always unmount or safely eject the drive from the operating system before removing it to avoid data corruption.

Recommendations

Use a reliable 12V, 2A adapter rated for your region, handle drives on a static-free surface, and always use the operating system's eject function before removing drives. For large transfers, connect to a USB 3.2 Gen 1 port on the host to approach the maximum throughput; keep in mind actual speeds depend on drive performance and system configuration.
