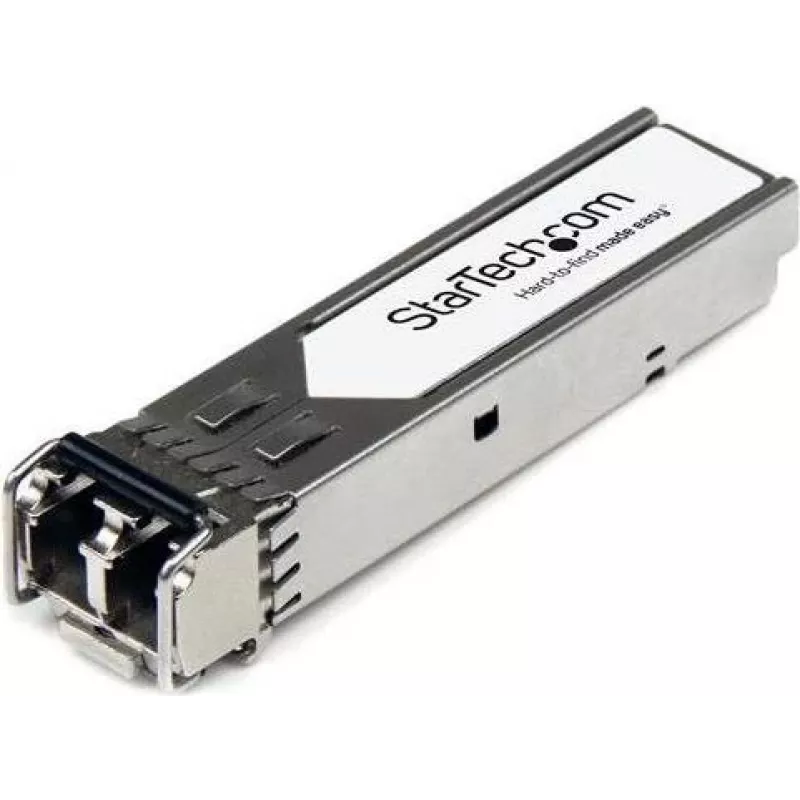

StarTech J9152A-ST SFP+ 10GBASE-LRM Transceiver Module - HP Compatible, 1310nm, LC Duplex, Multimode Fiber, 220m, DDM

In enterprise data centers and campus networks, network administrators often need to extend 10 Gigabit Ethernet over existing multimode fiber infrastructure. The StarTech J9152A-ST SFP+ transceiver module delivers reliable 10GBASE-LRM connectivity, enabling high-speed links up to 220 meters over legacy multimode fiber. It is fully compatible with HP J9152A equipment and supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

Key specifications

• Transceiver type: SFP+ (enhanced small form-factor pluggable)
• Data rate: 10 Gbps
• Interface: 10GBASE-LRM (Long Reach Multimode)
• Wavelength: 1310 nm
• Connector: LC duplex
• Fiber type: Multimode (MMF)
• Maximum transfer distance: 220 m (721 ft)
• DDM support: Yes
• Hot-swappable: Yes
• Compatibility: HP J9152A equivalent
• Operating temperature: 0°C to 70°C (32°F to 158°F)
• Power consumption: < 1.0 W
• Housing: Metal, silver

Why choose it

This transceiver is an ideal choice for upgrading existing multimode fiber plants to 10 Gigabit Ethernet without the cost of installing new single-mode cabling. Its 1310nm wavelength and LRM technology overcome modal dispersion limitations, allowing longer reach on legacy OM1, OM2, and OM3 fibers. The integrated DDM provides real-time monitoring of temperature, voltage, laser bias current, and optical power, simplifying network management and troubleshooting.

Ideal use cases

• Connecting switches and routers in enterprise campus backbones over existing multimode fiber.
• Extending 10GbE links between buildings or floors up to 220 meters.
• Upgrading legacy 1GbE multimode links to 10GbE without recabling.
• Deploying in HP networking environments requiring J9152A-compatible optics.

Good to know

The StarTech J9152A-ST is hot-swappable, allowing installation or removal without powering down the network device. It complies with IEEE 802.3ae 10GBASE-LRM standards and MSA specifications, ensuring interoperability with a wide range of HP and other compatible equipment. The metal housing provides durability and efficient heat dissipation, contributing to reliable long-term operation.
