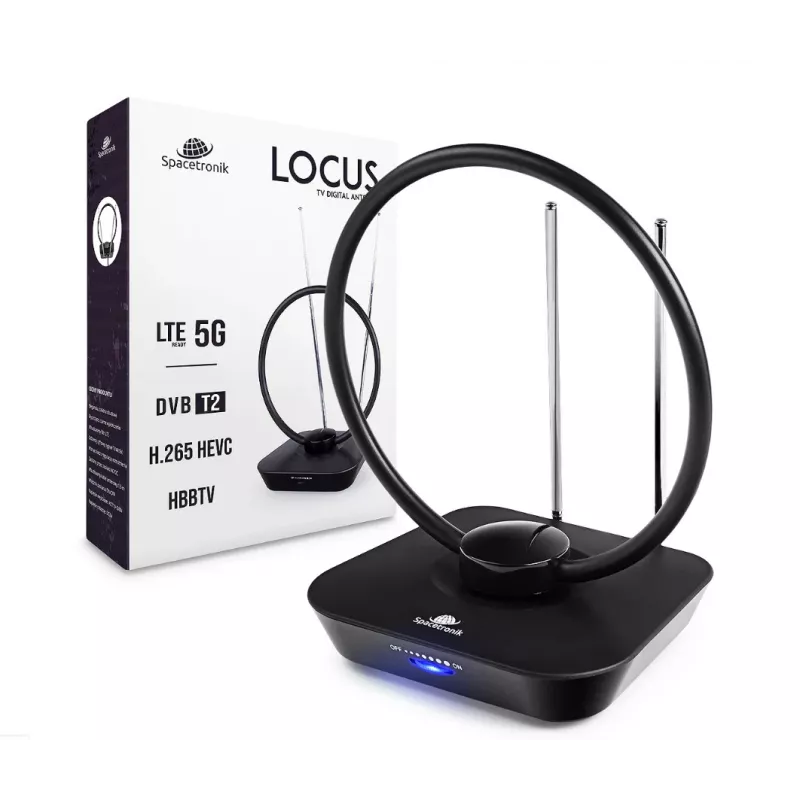

Spacetronik Locus Indoor DVB-T2 Antenna with 45dB Amplifier and Power Supply

The Spacetronik Locus is a high-performance indoor antenna engineered for crystal-clear reception of DVB-T2 and DAB+ signals, delivering a remarkable 45 dB gain to ensure stable TV and radio broadcasts even in challenging signal areas. Its active amplifier and integrated LTE/5G filter work together to minimize interference, providing a reliable viewing experience without dropouts.

Advantages

With its powerful 45 dB amplification, the Locus antenna boosts weak signals effectively, making it ideal for locations with less-than-perfect reception. The built-in LTE/5G filter (700 MHz) eliminates mobile network interference, ensuring pristine picture and sound quality. Its compact, tabletop design allows for flexible placement, and the included wall-mounting option offers additional setup versatility.

Suitable for

• Indoor use in homes, apartments, or offices
• Receiving free-to-air DVB-T and DVB-T2 television broadcasts
• Listening to digital radio (DAB and DAB+)
• Users in areas with moderate to weak signal strength

Key specifications

• Antenna type: Indoor, active (amplified)
• Frequency range: VHF 174–230 MHz, UHF 470–694 MHz
• Maximum gain: 45 dB
• Noise figure: < 3 dB
• LTE/5G filter: Yes (700 MHz)
• Output impedance: 75 Ohm
• Connector: F-type female
• Power supply: External AC/DC adapter (included)
• Adapter input: AC 230V, 50/60Hz; Output: DC 5V, 100mA
• Power consumption: < 3 W
• Polarization: Horizontal / Vertical (position dependent)
• Cable length: Approx. 1.5m coaxial
• Colour: Black
• Material: ABS plastic
• Mounting: Tabletop / wall-mountable

Recommendations

For optimal performance, position the antenna near a window or as high as possible, away from large metal objects. Re-scan channels on your TV after installation to ensure all available frequencies are detected. The included power adapter must be connected for the amplifier to function.
