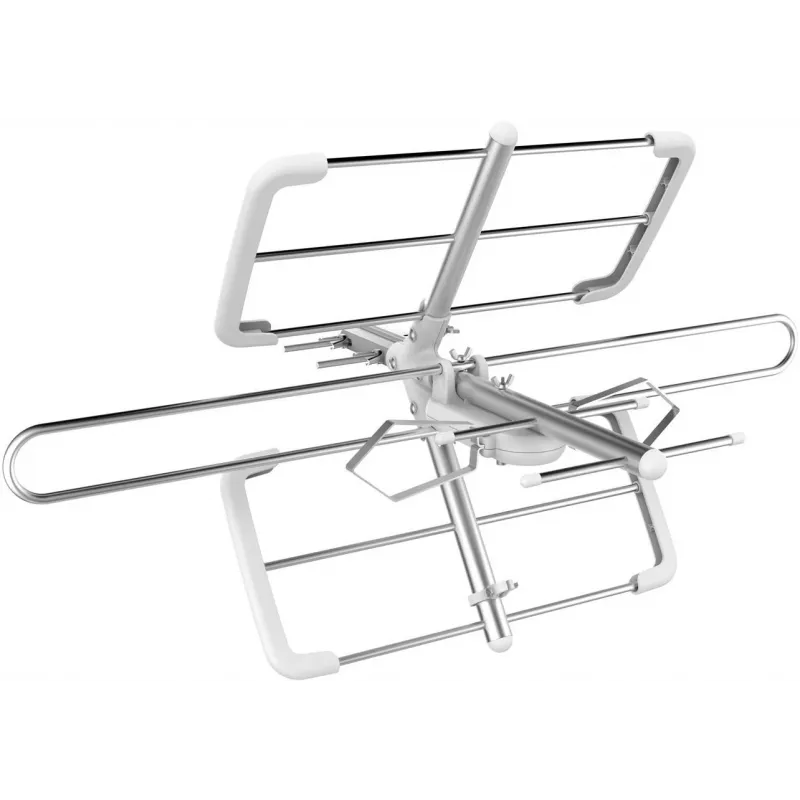

Spacetronik EOS Combo White Passive DVB-T/T2 Antenna

The Spacetronik EOS Combo White is a high-performance passive DVB-T/T2 antenna designed for reliable reception of digital terrestrial television. Its sleek white panel design makes it suitable for both indoor and outdoor use, including balcony installations. With built-in LTE/5G filtering, it minimizes interference from mobile networks, ensuring clear and stable signal reception.

Advantages

Passive operation eliminates the need for an external power supply, simplifying installation and reducing energy consumption. The directional panel design provides focused reception, enhancing signal strength in areas with moderate to strong signals. The integrated LTE700 filter blocks interference from 4G/5G networks, preserving signal quality.

Suitable for

• Digital terrestrial TV (DVB-T/T2) reception
• DAB and FM radio reception
• Outdoor or indoor balcony mounting
• Areas with good to moderate signal strength

Key specifications

• Antenna type: Terrestrial DVB-T/T2 TV Antenna
• Design: Panel / Directional
• Operating mode: Passive (no amplifier)
• Frequency bands: VHF (174-230 MHz), UHF (470-694 MHz)
• Gain: Up to 7 dBi (VHF), up to 12 dBi (UHF)
• Impedance: 75 Ohm
• Connector: F-type (female)
• Polarization: Horizontal / Vertical
• LTE/5G filter: Yes (built-in LTE700)

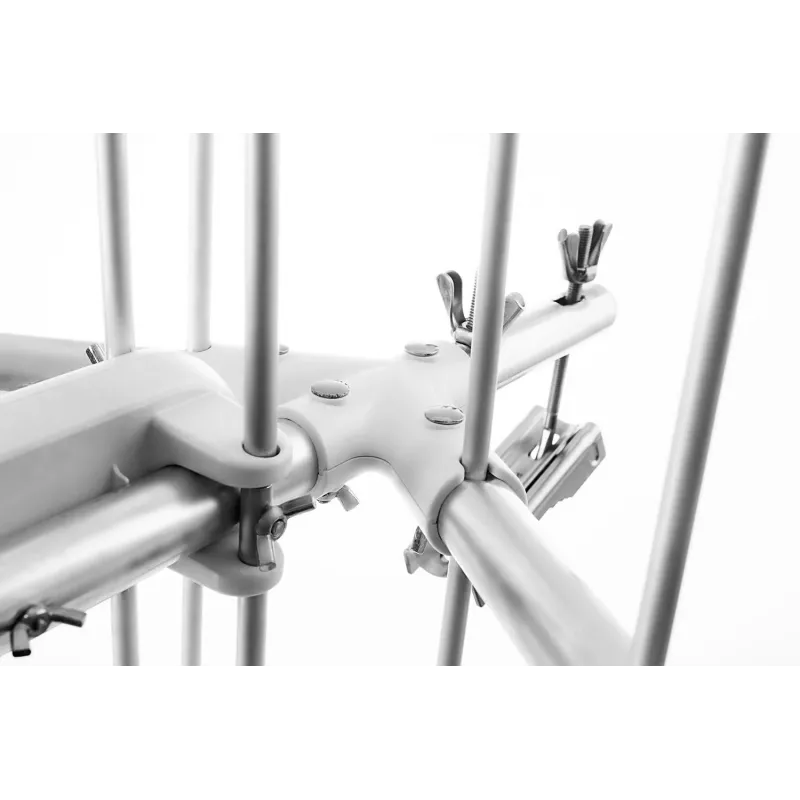

• Mounting: Pole mount, wall mount
• Colour: White
• Material: UV-resistant plastic, aluminum

Recommendations

For optimal performance, mount the antenna outdoors at a height with a clear line of sight to the broadcast tower. Use high-quality 75 Ohm coaxial cable and F-connectors. Ensure the antenna is properly grounded for outdoor installations.
