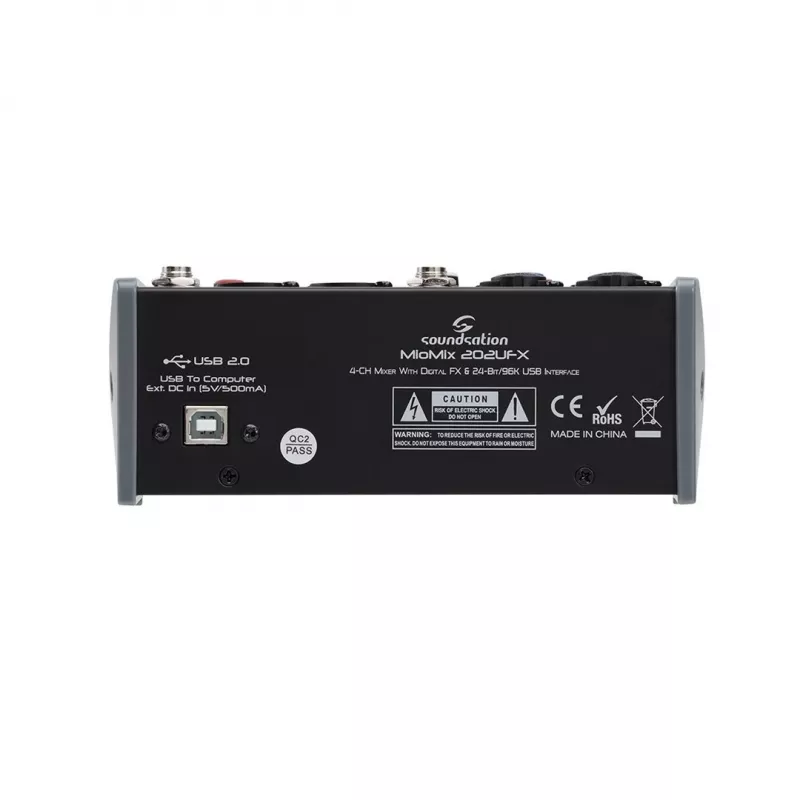

Soundsation MIOMIX-202UFX 2-Channel Analog Mixer with USB Audio Interface and 16 Digital Effects

With a 24-bit/48kHz USB audio interface built right in, the Soundsation MIOMIX-202UFX turns any computer into a compact recording and streaming hub. This 2-channel analog mixer packs a +48V phantom-powered XLR/TRS combo input, a stereo line channel, and a 16-preset digital effects engine into a rugged metal chassis that fits anywhere.

Overview

The MIOMIX-202UFX is a versatile analog mixer designed for podcasters, live streamers, musicians, and small venues. Channel 1 offers a combo XLR/TRS jack for microphones or instruments, with switchable +48V phantom power and a 2-band EQ. Channel 2 provides stereo 1/4" TRS inputs for keyboards, drum machines, or other line-level sources. The built-in effects processor delivers 16 studio-quality presets—reverb, delay, chorus, and more—with a dedicated FX send control on each channel. Main outputs on balanced 1/4" TRS jacks connect to powered speakers or an amplifier, while a dedicated headphone output with independent level control enables zero-latency monitoring. The USB port streams two channels in and out, making it a true 2-in/2-out audio interface for Windows and macOS without drivers.

What stands out

• Built-in 24-bit/48kHz USB audio interface for direct recording and playback
• 16 digital effects presets add polish to vocals and instruments
• +48V phantom power supports condenser microphones
• Compact metal chassis with low-noise operation (THD+N <0.01%)
• Driver-free compatibility with Windows and macOS

Technical details

• Channels: 2 (1 mono mic/line, 1 stereo line)
• Mono input: XLR/TRS combo jack with 0–40 dB gain range
• Stereo input: 2 x 1/4" TRS jacks
• Main outputs: 2 x 1/4" TRS jacks (balanced)
• Headphone output: 1/4" TRS jack with dedicated level control
• USB: 2-in/2-out, 24-bit/48kHz, class-compliant
• EQ: 2-band on mono channel (High, Low)
• Effects: 16 presets (reverb, delay, chorus, etc.)
• Frequency response: 20 Hz – 20 kHz
• Signal-to-noise ratio: >89 dB
• THD+N: <0.01%
• Power: DC 5V via USB or external adapter

Our verdict

The MIOMIX-202UFX punches above its class: a real USB interface, phantom power, and usable effects in a package small enough for a backpack. It's the missing link between your mics, instruments, and computer.
