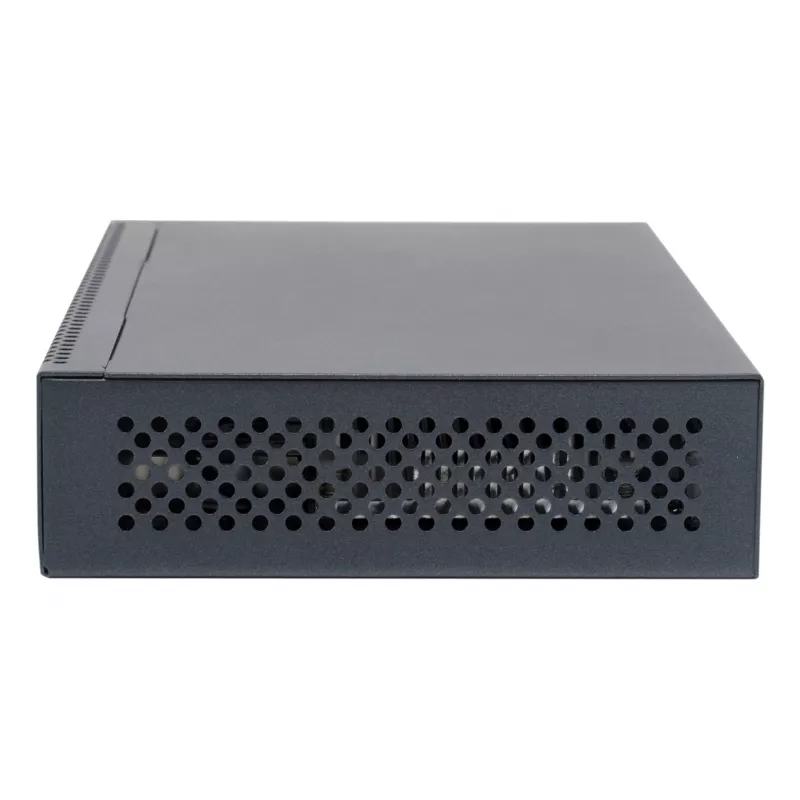

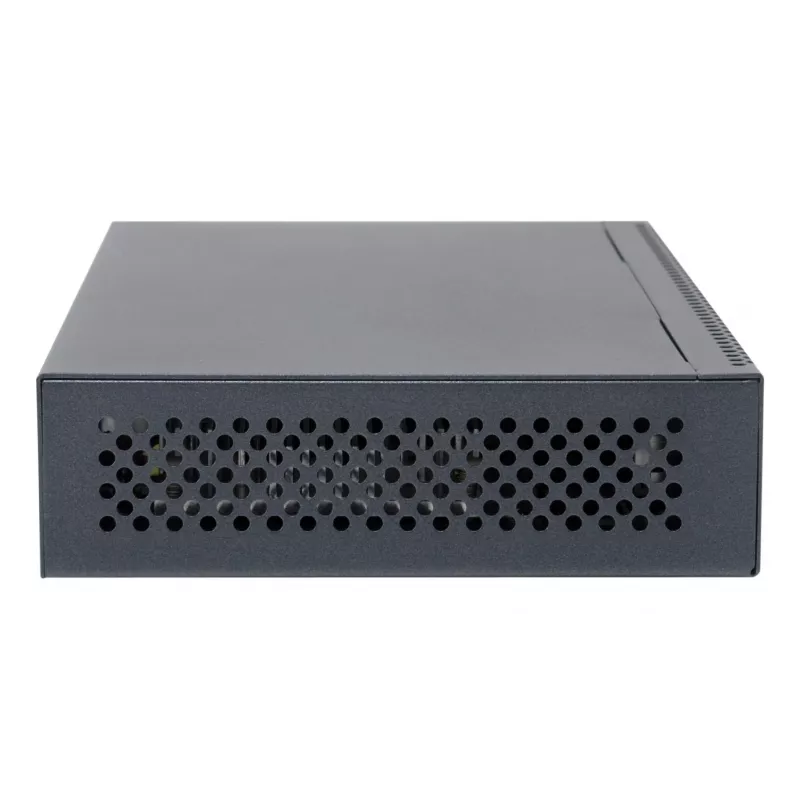

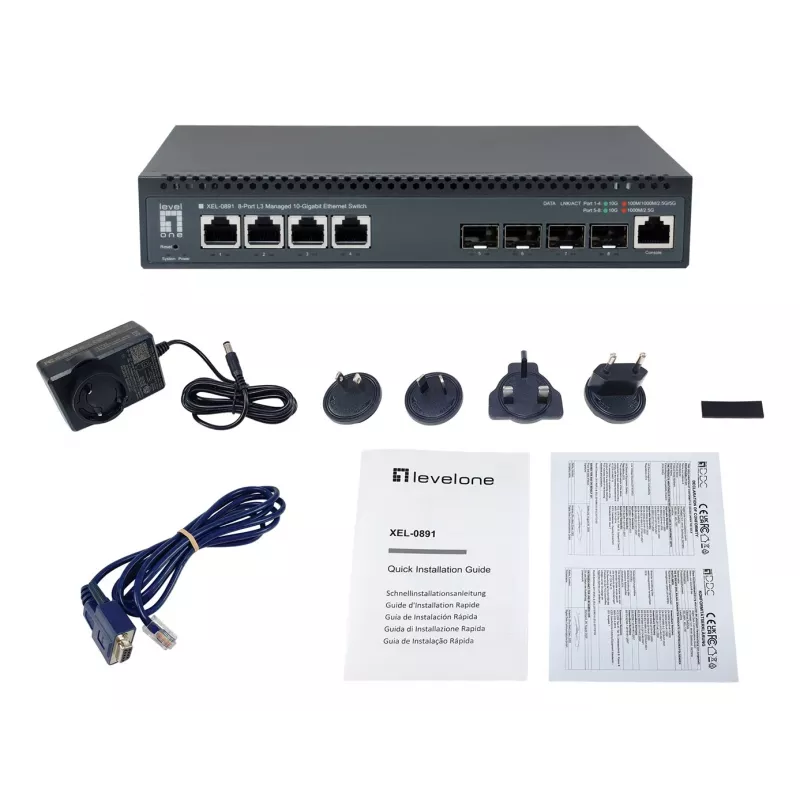

LevelOne 8-Port L3 Managed 10-Gigabit Switch, 4 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks

The LevelOne 8-Port L3 Managed 10-Gigabit Switch delivers high-performance Layer 3 switching with four 10GBASE-T RJ45 ports (supporting 1G/2.5G/5G/10G) and four 10G SFP+ uplink ports (supporting 1G/2.5G/10G). Designed for demanding enterprise networks, it offers a switching capacity of 160 Gbps and advanced routing protocols including OSPF, VRRP, and PIM-SM/DM. With comprehensive management features via web GUI, CLI, and SNMP, this 19-inch rackmount switch ensures robust security and QoS for mission-critical applications.

Advantages

High-density 10G connectivity with flexible multi-speed RJ45 and SFP+ ports; full Layer 3 routing capabilities; redundant dual firmware for reliable operation; extensive security features including 802.1X, DHCP Snooping, and ARP Inspection; energy-efficient design with low power consumption.

Suitable for

• Enterprise campus networks requiring high-speed aggregation
• Data centers needing 10G server connectivity
• Video surveillance and multimedia streaming environments
• Managed network infrastructure with VLAN and QoS requirements

Key specifications

• 8 ports: 4 x 10GBASE-T (1G/2.5G/5G/10G) + 4 x 10G SFP+ (1G/2.5G/10G)
• Switching capacity: 160 Gbps
• Forwarding rate: 119 Mpps
• MAC address table: 32K entries
• Jumbo frame support: 12K bytes
• VLAN support: 802.1Q, up to 4K VLANs
• Layer 3 features: Static Route, RIP, OSPF, VRRP, PIM-SM/DM, IGMP v1/v2/v3, DHCP Server/Relay/Snooping
• Management: Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON, Syslog, Dual Firmware
• QoS: 8 priority queues, WRR/SP/WFQ, CoS, DSCP
• Security: Port Security, IP Source Guard, DHCP Snooping, ARP Inspection, DoS Protection, RADIUS/TACACS+, 802.1X
• Power supply: Internal, 100-240V AC, 50/60Hz
• Form factor: 19-inch rackmount, 1U
• Operating temperature: 0°C to 50°C
• Humidity: 10% to 90% non-condensing

Recommendations

For optimal performance, use Category 6A or higher cabling for 10GBASE-T connections. Ensure proper ventilation in the rack to maintain operating temperature. The switch supports stacking via SFP+ uplinks for scalability.
