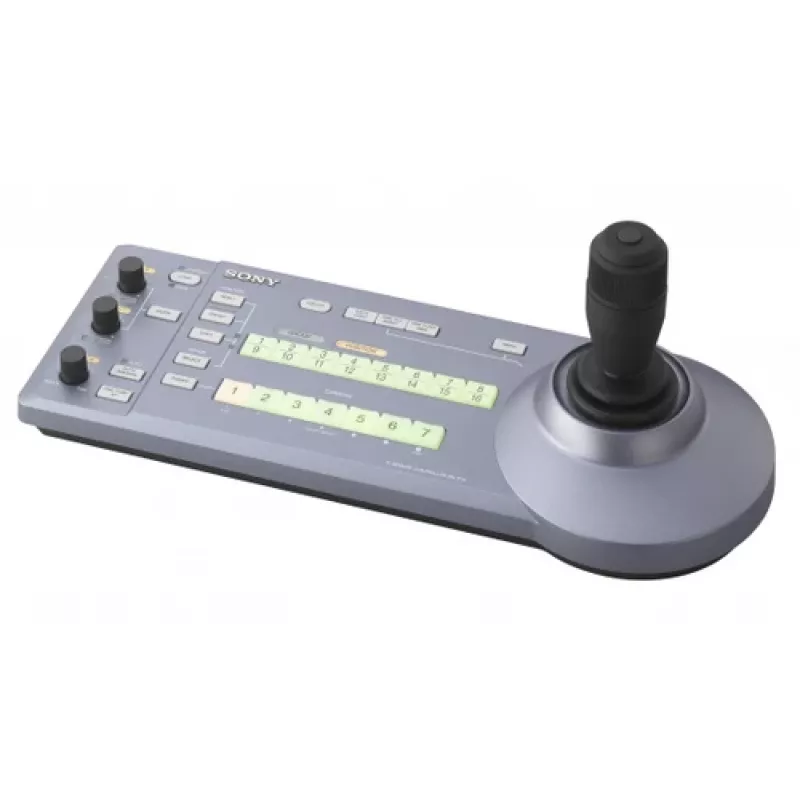

Sony RM-IP10 IP Remote Controller for PTZ Cameras

The Sony RM-IP10 is a professional IP remote controller designed for precise control of Sony PTZ cameras. It provides intuitive operation with a 3-axis joystick and dedicated dials for iris, gain, and master black. Supporting up to 112 cameras via IP, it is ideal for broadcast, education, and corporate environments.

Advantages

Full IP-based control eliminates distance limitations. The ergonomic joystick ensures smooth pan/tilt/zoom movements. Preset memory of 16 per camera allows quick recall of camera positions. Tally support via IP enhances studio workflow.

Suitable for

• Broadcast studios
• Lecture halls
• Corporate meeting rooms
• House of worship
• Live event production

Key specifications

• Control Interface: IP (Ethernet)
• Supported Cameras: Sony BRC-Z330, BRC-Z700, BRC-H90, BRC-H700, SRG-300SE, SRG-120DU, SRG-120DH, SRG-360SHE, SRG-X400, SRG-X120, SRG-XB25, FR7 (with firmware update)
• Number of Controllable Cameras: Up to 112 (via IP)
• Control Functions: Pan, Tilt, Zoom, Focus, Iris, Gain, Shutter Speed, White Balance, Master Black, Detail, Tally, OSD, Scene File, Preset Recall/Store
• Joystick Type: 3-axis (Pan/Tilt/Zoom)
• Preset Memory: 16 presets per camera
• Connectivity: 1x RJ-45 (Ethernet), 1x RS-422 (9-pin D-sub)
• Power Input: DC 12V
• Power Consumption: Approx. 10W
• Display Type: LCD with backlight
• Control Dials: Dedicated dials for Iris, Gain, Master Black
• Protocols Supported: VISCA over IP, VISCA RS-422
• Tally Support: Yes (via IP)
• Firmware Updates: Via Ethernet
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Color: Black
• Mounting: Desktop

Recommendations

For optimal performance, use with Sony PTZ cameras and ensure network infrastructure supports IP control. Firmware updates may be required for compatibility with newer camera models.
