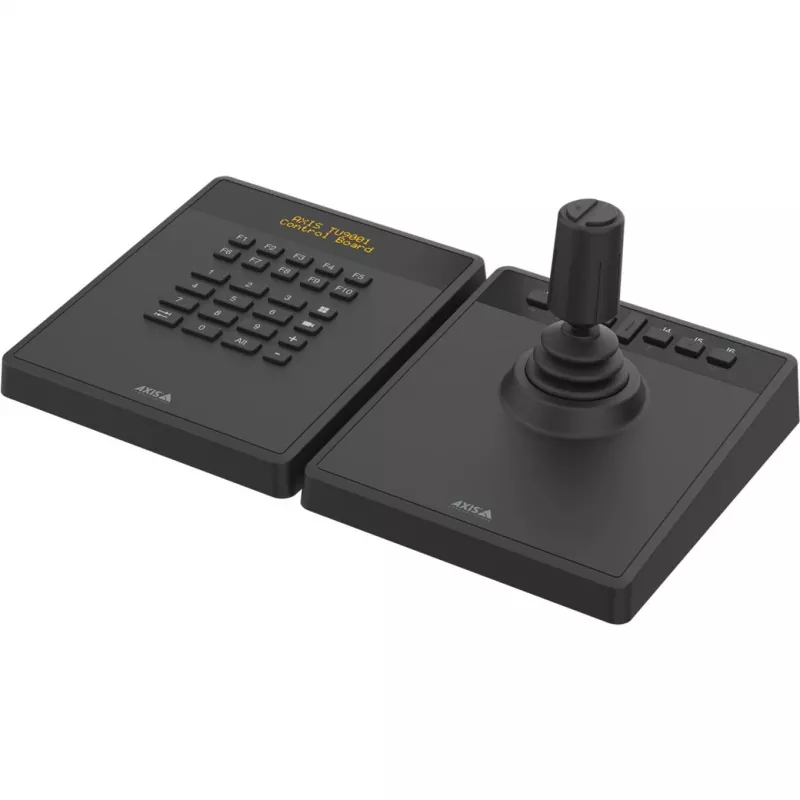

Control board Axis TU9001 Universal Wired 2m Cable Black

This modular control system includes separate joystick and keypad units designed for surveillance and video management. Choose a simple setup with only the joystick or a full configuration with both modules to control cameras and video. Constructed from durable, chemical-resistant materials, the units feature a professional, modern appearance suitable for control rooms and monitoring stations.

Advantages

The AXIS TU9002 combines joystick and jog-dial functions in a single 3-axis controller with a turn knob, eight application-defined hotkeys and a toggle key to switch modes. The joystick supports precise PTZ camera control, responsive navigation through recorded video and can function as a computer mouse. The AXIS TU9003 keypad provides quick access to workspaces, cameras, views and PTZ presets and includes an LCD display controllable by compatible VMS. A metal bracket allows secure physical connection between joystick and keypad so they operate as a unified control board; the joystick also acts as a USB hub when both modules are connected.

Key specifications

• Modular design with separate joystick (AXIS TU9002) and keypad (AXIS TU9003)
• Joystick: 3-axis control with turn knob, 8 programmable hotkeys and toggle key
• Keypad: LCD display with VMS control compatibility
• Materials: durable, chemical-resistant construction
• Interface: USB; joystick functions as USB hub when both modules connected
• Ergonomics: suitable for left- and right-hand use; metal bracket for combined installation

How to use

Select the desired configuration: operate only the AXIS TU9002 joystick for standalone control or connect both AXIS TU9002 and AXIS TU9003 for full camera and video management. Use the toggle key on the joystick to switch between joystick and jog-dial modes; define the eight hotkeys per application as needed. Integrate the keypad with a compatible VMS to control workspaces, camera views and PTZ presets and use the LCD for on-device feedback. Mount the modules together with the supplied metal bracket, connect via USB and, if both units are used, let the joystick act as the USB hub for the keypad.

Recommendations

For optimal performance, verify VMS compatibility and configure the joystick hotkeys and keypad display through your VMS before deployment. Install the units using the metal bracket for a stable combined control surface and connect via USB to a workstation with appropriate drivers.
