Socket outlet RJ-45 Telegärtner J00020A0505

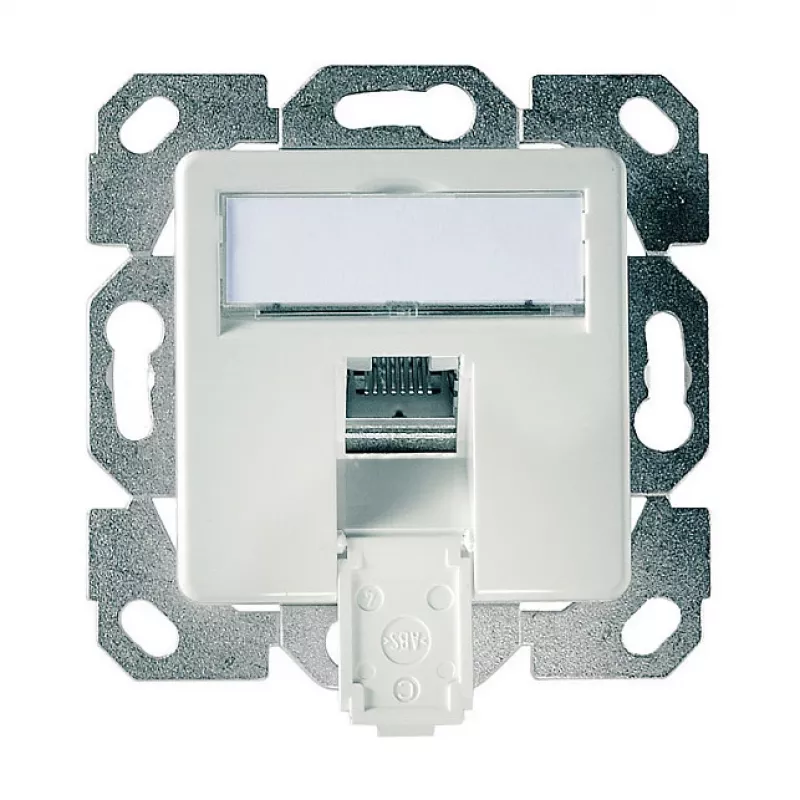

The Telegärtner J00020A0505 is an RJ-45 socket outlet designed for Cat.6A networking applications that require fully shielded connections. It supports Cat.6A transmission performance according to ISO/IEC 11801 and EN 50173-1 standards, offers 360° shielding contact and strain relief, and fits standard wall boxes with dimensions 70 mm (W) x 37 mm (D) x 70 mm (H). The module is suitable for residential and commercial installations where reliable, high-speed wired connectivity is needed.

Advantages

Fully shielded construction with 360° contact and separate captive screw clamps provides secure EMC protection and strain relief. The outlet can be wired from any direction in 8 x 45° steps which reduces stock diversity and simplifies installation planning. It supports horizontal or vertical installation, has a low installation depth for use in floor tanks via side cable inlet, and offers the option of plug-in ground connection at all four corners according to DIN 46342-1 (6.3 mm). The design allows combination with a variety of cover plates and includes features such as simple lead presorting, protection flaps, a retrofittable flip-up transparent label field, and interchangeable use of 6- and 8-pin connectors without additional kits.

Suitable for

• High-speed Ethernet networks requiring Cat.6A performance
• Shielded network installations sensitive to electromagnetic interference
• Residential and commercial wall- and floor-mounted outlet applications
• Installations where flexible cable entry direction and low installation depth are needed

Key specifications

• Model: Telegärtner J00020A0505
• Connector: RJ-45 socket outlet
• Transmission category: Cat.6A (ISO/IEC 11801; EN 50173-1)
• Shielding: Fully shielded, 360° contact
• Cable entry: Wiring from all directions in 8 x 45° steps; variable inlet for horizontal or vertical installation
• Ground: Plug-in ground connection option at all four corners (DIN 46342-1; 6.3 mm)
• Installation depth: Low profile suitable for floor tanks with side cable inlet
• Dimensions: 70 mm x 37 mm x 70 mm (W x D x H)
• Compatibility: Can be combined with various cover programs; supports 6- and 8-pin connectors interchangeably

How to use

Prepare the cable by stripping the outer jacket and sort the leads according to the device's lead presorting guidance. Insert the cable into the chosen inlet direction and secure shielding and jacket with the separate captive screw clamps to ensure 360° contact and strain relief. If required, connect the plug-in ground at one of the four corners following DIN 46342-1. Mount the outlet horizontally or vertically in the wall box or subfloor mounting box; retrofit the cover plate or transparent label field if needed. Use protection flaps and the detachable vertical fixing rail where applicable.

Recommendations

To maintain optimal Cat.6A performance, use appropriately rated shielded Cat.6A cables and ensure the shielding is correctly clamped. Follow local installation standards and verify grounding continuity when using the plug-in ground connection.
