Socket outlet 2 x RJ-45 LogiLink NP0124

The LogiLink Socket outlet 2 x RJ-45 NP0124 is a compact, metallic-white wall outlet with two shielded RJ-45 ports designed for STP cabling and supporting CAT6A performance up to 10 Gigabit Ethernet. The outlet features a zinc die-cast housing and comes with a back box, allowing both flush mount and surface mount installation. It is compatible with ISO/IEC 11801 and TIA/EIA 568C.2 standards and is suitable for current CAT5E/CAT6/CAT6A networks.

Advantages

The metallic zinc die-cast housing provides mechanical robustness and shielding that improves electromagnetic compatibility for STP installations. The dual RJ-45 ports support high-speed data, voice and video transmission up to 10 GbE and are backward compatible with CAT5E and CAT6. Inclusion of a back box simplifies installation for either flush or surface mounting and the compact dimensions make it suitable for standard outlet locations.

Suitable for

• Structured cabling in offices and homes using STP CAT6A cabling
• High-speed Ethernet connections up to 10 Gigabit
• Delivery of digital voice, data and video signals

Key specifications

• Model: LogiLink NP0124
• Ports: 2 x RJ-45 (shielded, STP)
• Category: CAT6A (backward compatible with CAT6 / CAT5E)
• Standards: ISO/IEC 11801, TIA/EIA 568C.2
• Rated current: 6 A

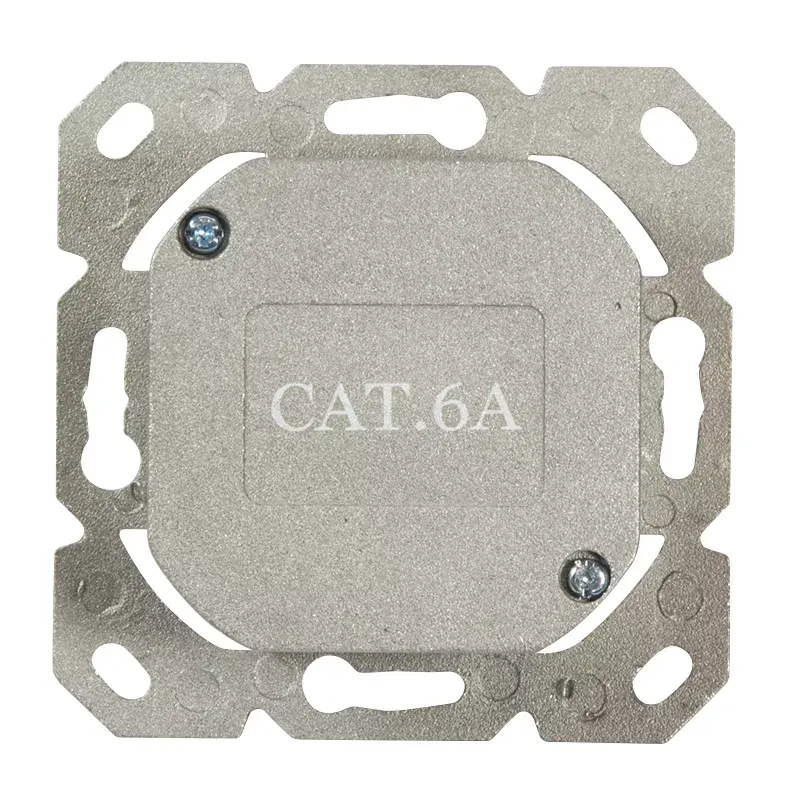

• Housing: zinc die-cast, metallic white
• Dimensions: 80 mm (W) x 80 mm (D) x 38.8 mm (H)

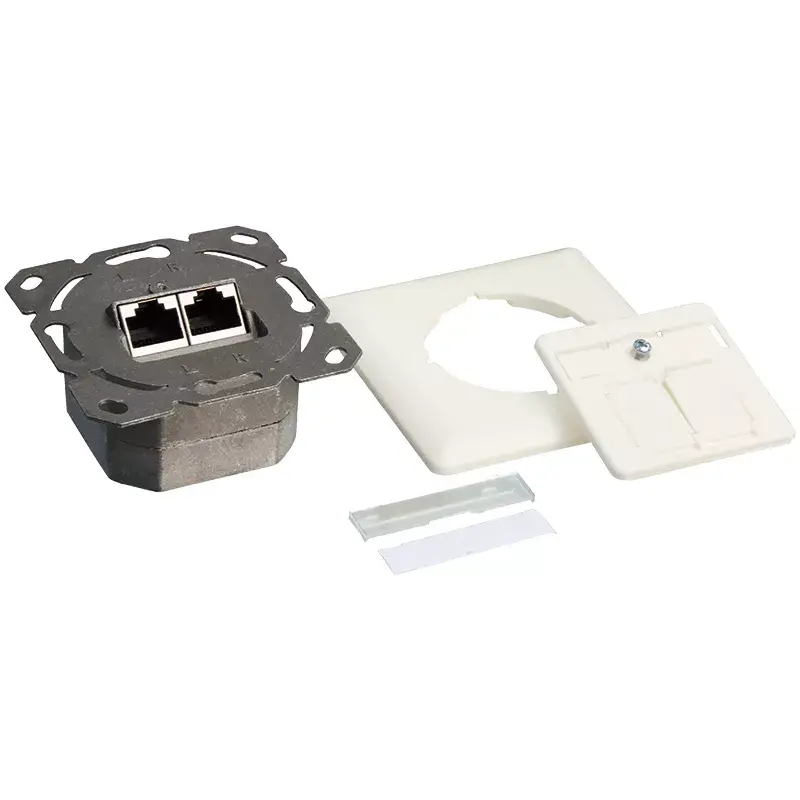

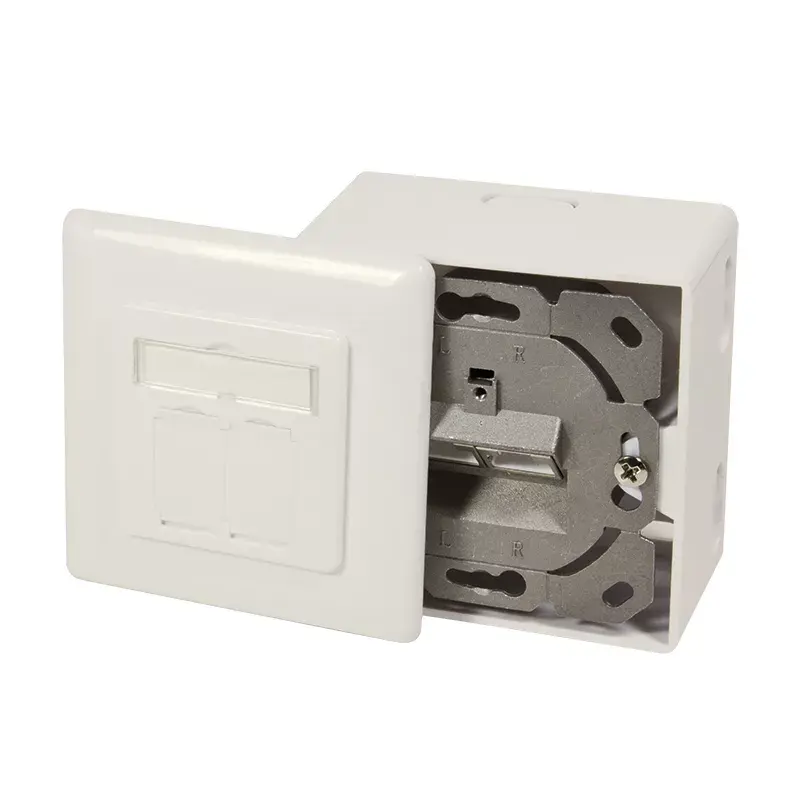

• Mounting: flush mount or surface mount (includes back box)
• EAN: 4052792040234

How to use

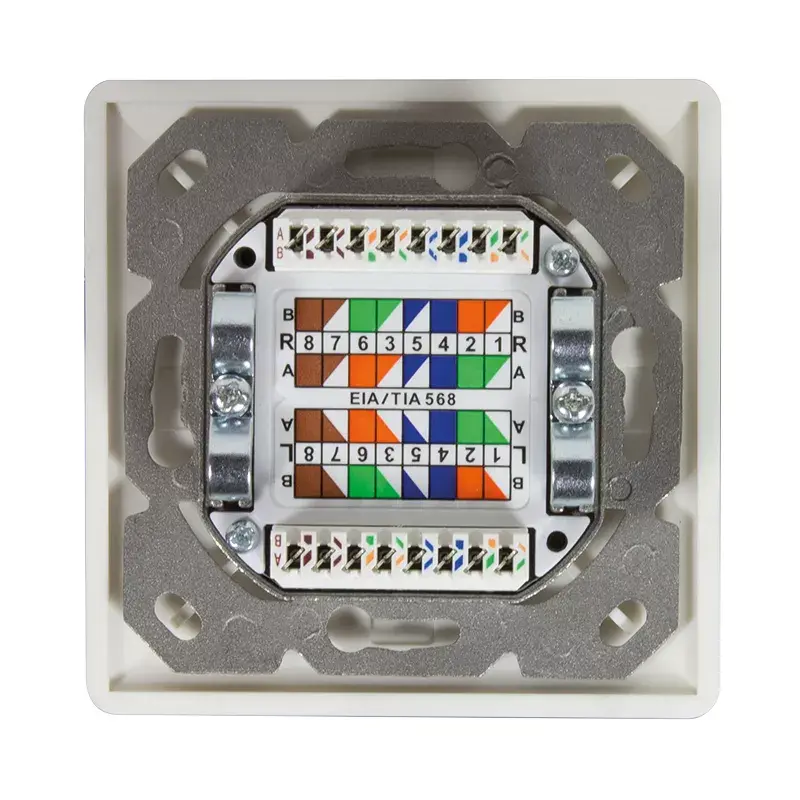

Prepare STP CAT6A cables and terminate them to the shielded RJ-45 jacks following the colour code and the TIA/EIA 568C.2 wiring standard. Mount the included back box at the chosen location for either flush or surface installation, secure the outlet into the back box and fasten the housing. Verify correct shielding connection to ground if required by your installation. Test each port with a network tester to confirm continuity and performance up to 10 GbE.

Recommendations

For optimal performance, use certified STP CAT6A cabling and ensure proper grounding of the shield. Installations in electrically noisy environments will benefit from the metal housing and correct shield termination. Verify connector wiring and run a channel test to confirm support for 10 Gigabit Ethernet before finalizing the installation.
