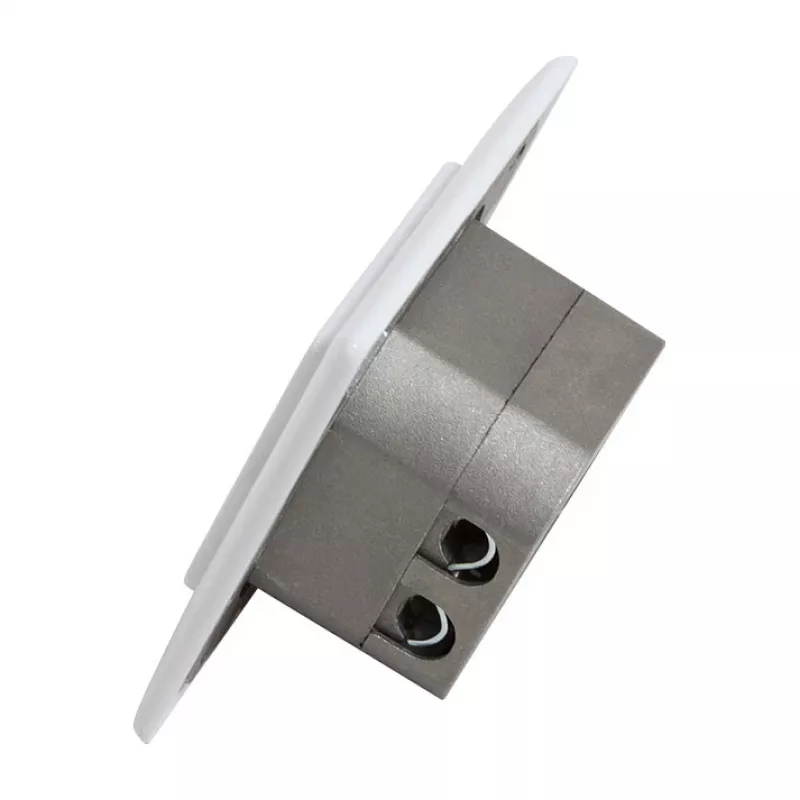

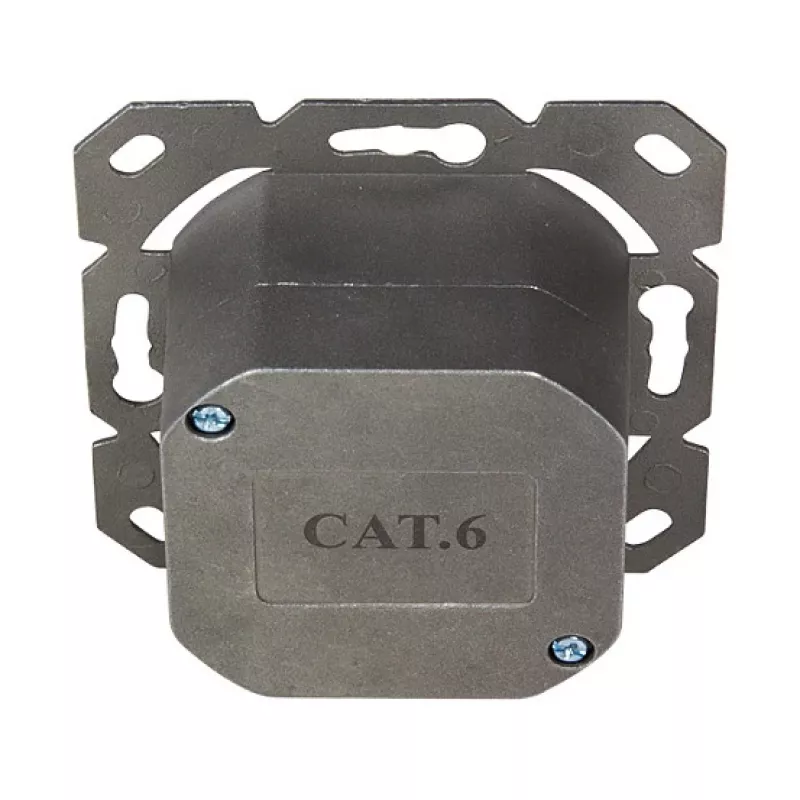

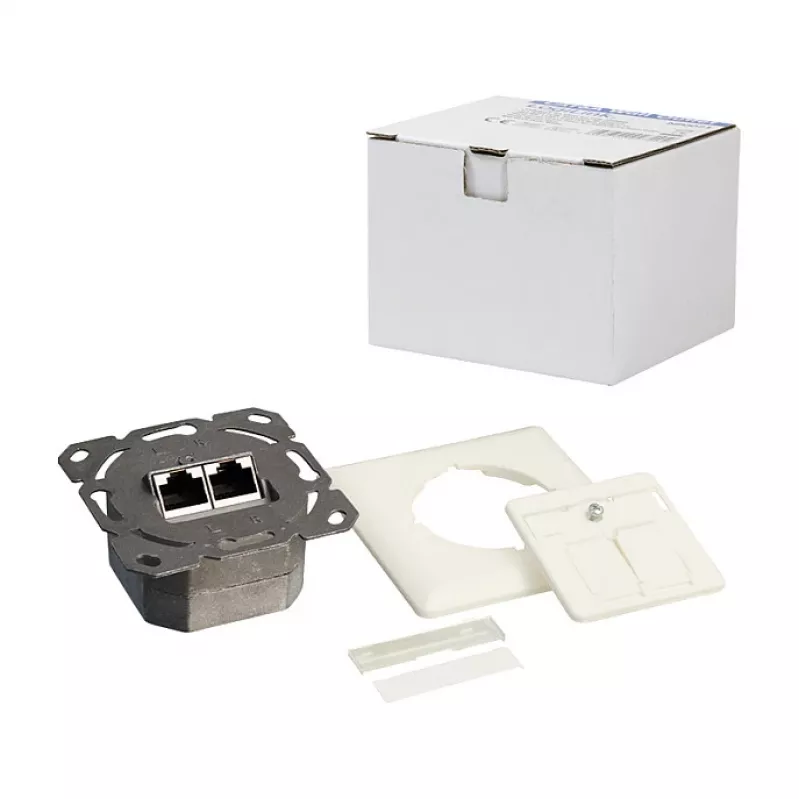

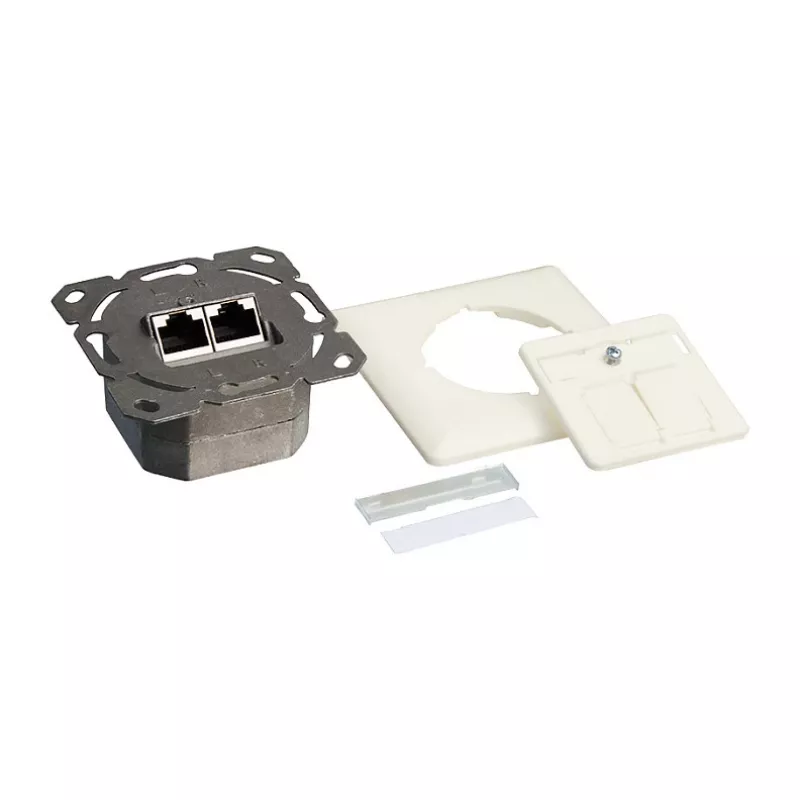

LOGILINK Cat.6 Wall Outlet 2xRJ45 STP Horizontal, Pure White

The LOGILINK Cat.6 Wall Outlet (NP0023) is a flush-mounted network socket that brings professional-grade Category 6 performance to your structured cabling. With two shielded RJ45 ports and support for PoE, PoE+ and 4PPoE, this outlet is future-ready for high-bandwidth applications.

Overview

Designed for horizontal wall mounting, this Cat6 outlet supports data rates up to 250 MHz and is fully backwards compatible with Cat5e and Cat5. The STP (Shielded Twisted Pair) construction minimises electromagnetic interference, ensuring stable data transmission even in challenging environments. The outlet is delivered in a pure white (RAL 9010) finish, ideal for modern interiors.

What stands out

• 2xRJ45 Cat6 STP: Two shielded ports for high-speed network connections.
• Gold-plated contacts: 3µm gold plating ensures reliable, corrosion-resistant connections.
• LSA termination: Tool-free IDC terminals compatible with Krone and 110 punch-down tools.
• Integrated dust shutters: Protect the module from dust and debris when not in use.
• PoE support: Power over Ethernet (PoE, PoE+, 4PPoE) for powered devices like IP cameras and access points.

Technical details

• Network standard: Cat.6 (Category 6)
• Frequency range: Up to 250 MHz
• Wiring standard: TIA/EIA 568 A & B
• Mounting type: Flush-mounted (Unterputz)
• Frame dimension: 80x80 mm
• Central plate dimension: 50x50 mm
• Housing material: ABS plastic
• Grounding: Central ground connection
• Certifications: ISO/IEC 11801, EN 50173, RoHS

Our verdict

The LOGILINK Cat.6 Wall Outlet combines robust shielding, gold-plated reliability and easy tool-free installation, making it a solid choice for both residential and commercial network infrastructure upgrades.
