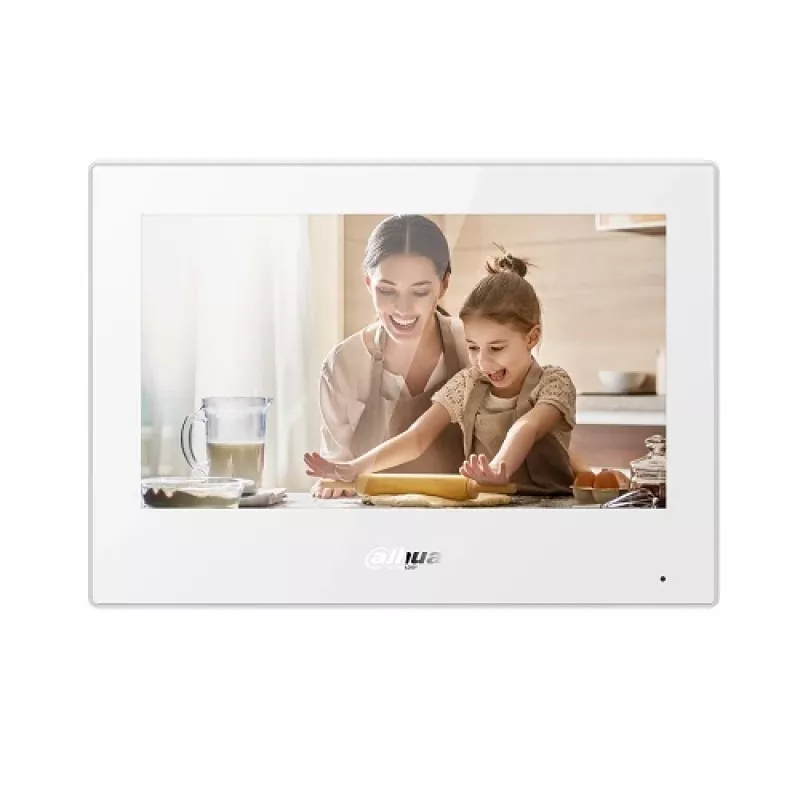

Smart home central control unit DAHUA VTH5321GW-W — 7 inch TFT 1024x600, Android, Wi‑Fi 802.11b/g/n, polycarbonate housing

The Dahua Technology VTH5321GW-W is a wireless smart home central control unit with a 7" TFT LCD display and 1024 x 600 pixel resolution. It runs on Android and supports Wi‑Fi 802.11b/g/n for network connectivity. The unit is housed in a polycarbonate enclosure with compact dimensions of 189.6 x 134.6 x 26 mm and is designed to operate reliably across a wide humidity range of -10 to 55%. CE and FCC certifications are provided for compliance with relevant standards.

Advantages

The device combines a capacitive 7" TFT LCD with Android-based operation to provide an intuitive touchscreen interface for central smart home control. Wireless connectivity via Wi‑Fi 802.11b/g/n allows flexible placement without the need for wired network connections. Its compact polycarbonate housing offers a balance of durability and low weight, while the specified operating humidity range supports use in varied indoor environments.

Suitable for

• Centralized control of smart home devices and systems
• Wall- or surface-mounted touchscreen control station in residential or small commercial settings
• Integration with Dahua smart home and access control equipment

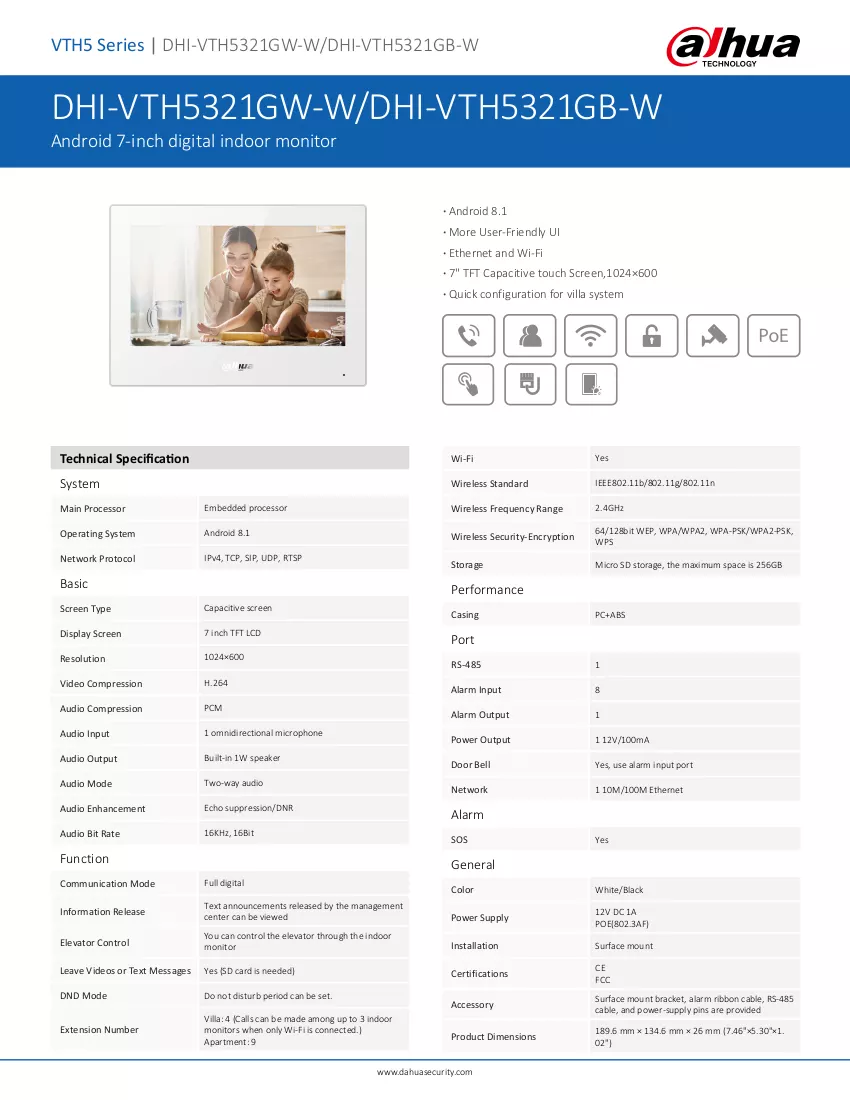

Key specifications

• Display: 7" TFT LCD, 1024 x 600 pixels
• Operating system: Android
• Wireless: Wi‑Fi 802.11b/g/n
• Housing material: Polycarbonate
• Dimensions: 189.6 x 134.6 x 26 mm
• Operating humidity: -10% to 55% (relative humidity range)
• Certifications: CE, FCC

How to use

Mount the unit according to the installation instructions for wall or surface mounting, ensure it is within range of your Wi‑Fi network, and power it following the product manual. Use the Android-based touchscreen to configure network settings, register or pair compatible smart devices, and set up scenes, schedules, or access control functions through the device interface and the Dahua integration options.

Recommendations

Place the unit indoors in a dry, moderate-temperature location with stable Wi‑Fi coverage. Keep the display and housing free from direct sunlight and excessive moisture; follow Dahua installation and safety instructions for mounting height and cabling to ensure reliable operation.
