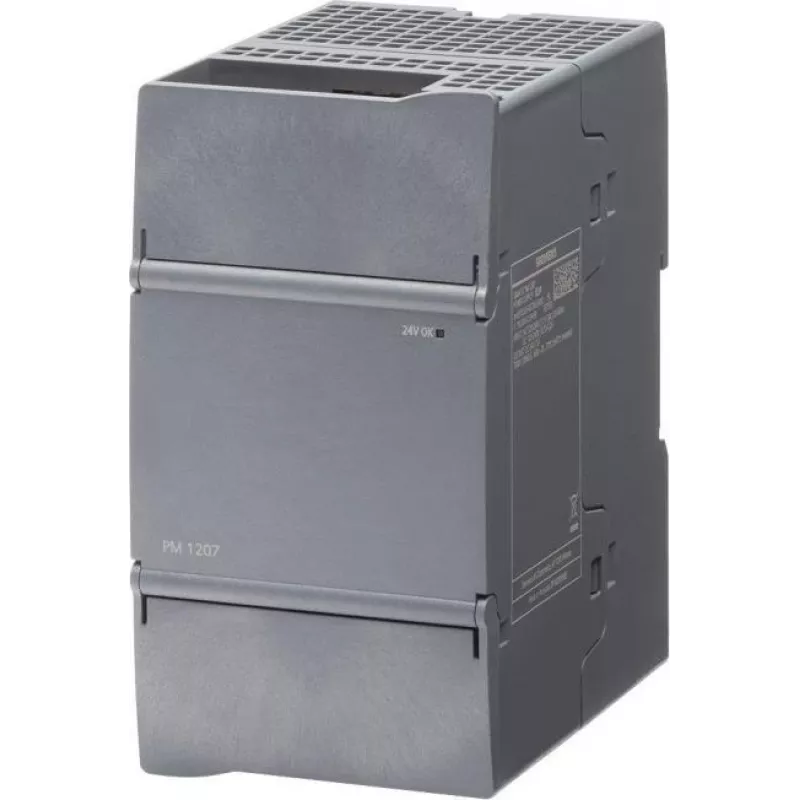

Siemens SIMATIC PM 1207 Power Supply 24V 2.5A 60W Single-Phase 6EP3333-4SB00-3AX0

The Siemens SIMATIC PM 1207 is a high-efficiency single-phase power supply designed for industrial automation applications. It provides a stable 24 V DC output with a rated current of 2.5 A and 60 W power, ideal for powering SIMATIC S7-1200 PLCs and other 24 V devices. With auto-ranging input (120/230 V AC), DIN rail mounting, and comprehensive protection features, it ensures reliable operation in demanding environments.

Advantages

High efficiency (typ. 87%) reduces energy costs and heat generation. Compact design saves space on DIN rails. Built-in overload and short-circuit protection with auto-recovery minimizes downtime. Wide operating temperature range (-25 to +70 °C) suits harsh industrial conditions. Global certifications (CE, cULus, ATEX, IECEx, EAC, RCM, KC, Marine) ensure compliance worldwide.

Suitable for

• Powering SIMATIC S7-1200 PLC systems
• Industrial control cabinets and automation panels
• 24 V DC sensor and actuator supply
• Process automation, manufacturing, and machine building

Key specifications

• Input: 120 V AC / 230 V AC (auto-ranging), 50/60 Hz
• Output: 24 V DC, 2.5 A, 60 W
• Efficiency: typ. 87% at 230 V AC
• Mounting: DIN rail (EN 60715)
• Connection: Screw terminals
• Protection: IP20, overload and short-circuit protection
• Operating temperature: -25 to +70 °C
• Ripple and noise: < 100 mVpp
• Certifications: CE, cULus, ATEX, IECEx, EAC, RCM, KC, Marine

Recommendations

For optimal performance, use with SIMATIC S7-1200 CPUs and ensure proper ventilation. The power supply is designed for natural convection cooling; avoid blocking airflow. Always adhere to local electrical codes and installation guidelines.
