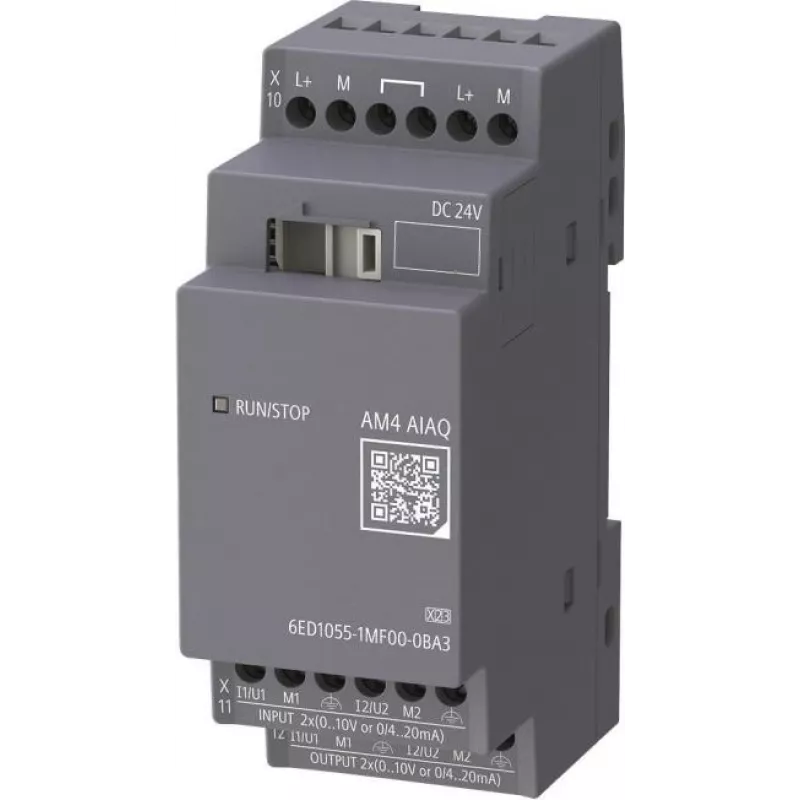

Siemens LOGO! AM4 6ED1055-1MF00-0BA3 Analog Expansion Module 2AI/2AQ 24V DC

The Siemens LOGO! AM4 6ED1055-1MF00-0BA3 is a compact analog expansion module designed for the LOGO! 8 logic module system. It provides two analog inputs and two analog outputs, enabling precise monitoring and control of analog signals in industrial automation applications. With support for voltage (0-10V) and current (0/4-20mA) signals, this module offers flexibility for various sensors and actuators. Its DIN rail mounting and IP20 protection make it suitable for control cabinets.

Advantages

Easy integration with LOGO! 8 base modules; supports both voltage and current analog signals; compact 4 TE width saves space; reliable 24V DC operation; 10-bit resolution for accurate signal conversion.

Suitable for

• Industrial automation and control systems
• Building automation (HVAC, lighting)
• Process monitoring and control
• Small-scale PLC applications

Key specifications

• Module Type: Analog Expansion Module
• Number of Analog Inputs: 2
• Number of Analog Outputs: 2
• Input Signal Types: 0-10V, 0/4-20mA
• Output Signal Types: 0-10V, 0/4-20mA
• Supply Voltage: 24V DC
• Power Consumption: 50 mA max
• Compatibility: Siemens LOGO! 8.x (0BA8, 0BA9, 0BA3)
• Mounting: DIN Rail
• Operating Temperature: 0 to +55 °C
• Protection Class: IP20
• Width: 4 TE
• Analog Resolution: 10-bit
• Communication: LOGO! Bus

Recommendations

For optimal performance, use with Siemens LOGO! 8 base modules (e.g., 6ED1052-1MD00-0BA8). Ensure proper wiring and configuration via LOGO! Soft Comfort software.
