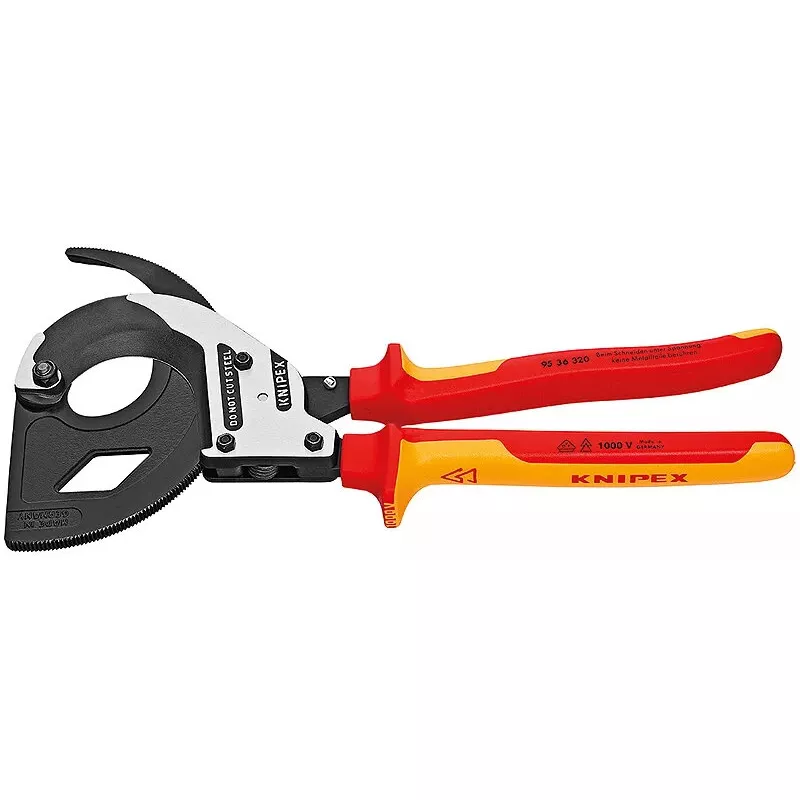

Side-cutting pliers Knipex 95 36 320

The Knipex 95 36 320 side-cutting pliers are a robust, compact cutting tool designed for cleanly cutting copper and aluminium cables up to 60 mm in diameter. Made from high-grade special tool steel that is forged and oil-hardened, these pliers combine durability with a lightweight, compact construction (320 mm length, approx. 825–830 g) for use in confined spaces and demanding tasks.

Advantages

Sturdy construction and precisely ground, hardened cutting edges provide smooth, neat cuts without crushing the conductor. The innovative three-stage ratchet-drive gives high leverage for effortless cutting in both one-hand and two-hand operation. A fixed handle with a support area allows the pliers to be set down securely during cutting. Compact length and relatively low weight ensure easy handling and access in tight areas.

Suitable for

• Cutting single copper conductors
• Cutting single aluminium conductors
• Cutting multiple stranded copper or aluminium cables (non-steel)
• Applications requiring one-hand or two-hand cutting with high leverage

Key specifications

• Brand: Knipex
• Model / MPN: 95 36 320
• EAN: 4003773075189
• Overall length: 320 mm
• Cutting capacity: up to 60 mm diameter (copper and aluminium)
• Cutting length: approx. 60 mm
• Material: high-grade special tool steel, forged and oil-hardened
• Weight: approx. 825–830 g

How to use

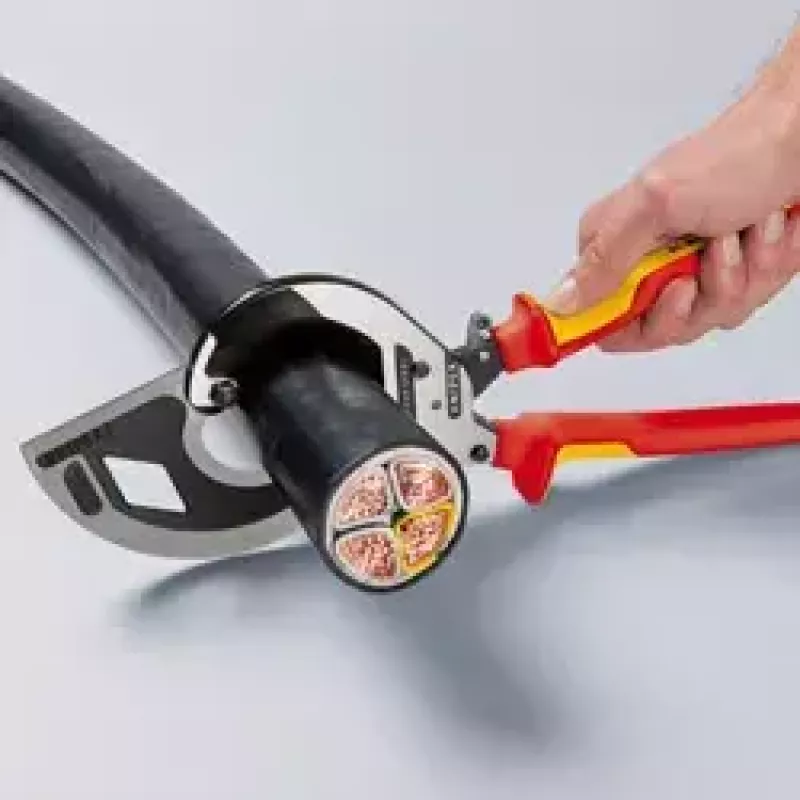

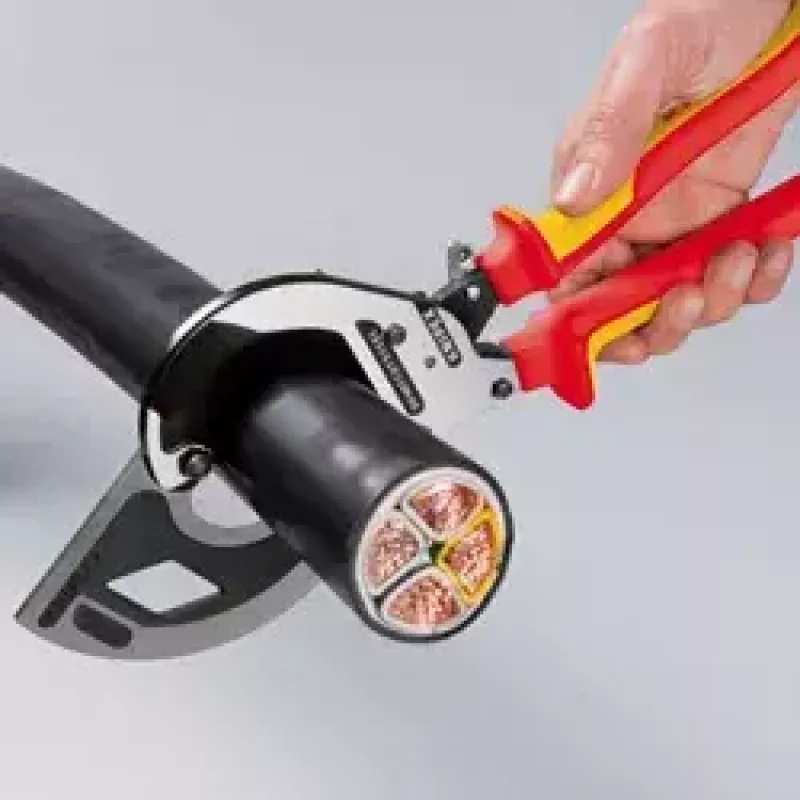

Position the cable between the cutting edges and operate the pliers using the ratchet-drive. For thick cables, use two-hand operation to control the tool and ensure a straight, clean cut; for smaller cables, the ratchet mechanism allows safe one-hand cutting. After cutting, release the ratchet according to the tool’s mechanism to open the blades. Do not use the tool for steel wire or wire ropes.

Recommendations

Use only on copper and aluminium conductors. Avoid cutting steel wires or wire ropes. Regularly inspect and maintain the cutting edges and keep them clean and lightly oiled to preserve performance and extend service life.
