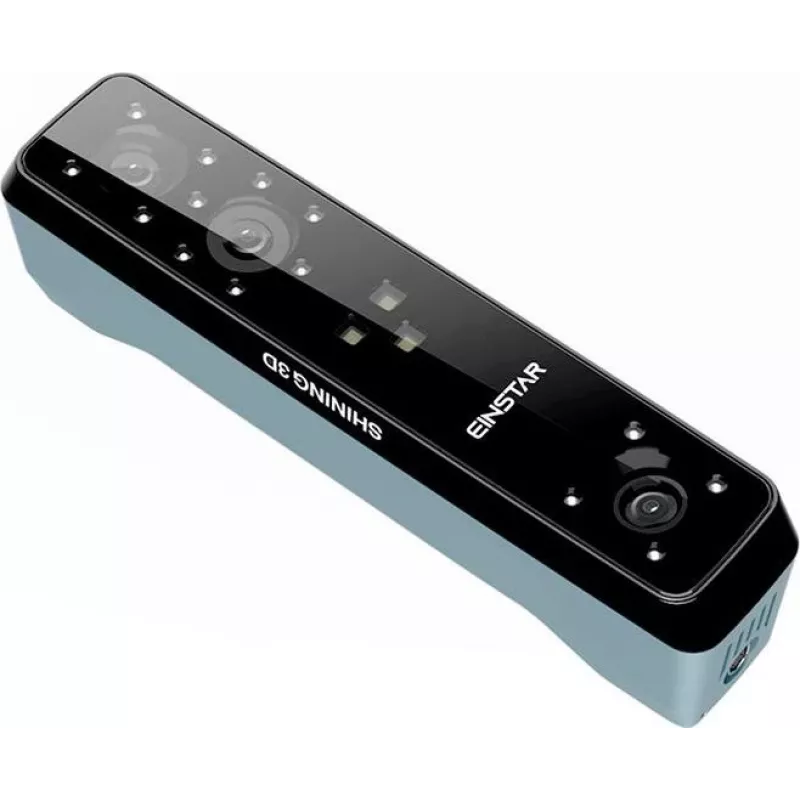

Shining 3D Einstar 3D Scanner C6232

The Shining 3D Einstar 3D Scanner C6232 is a high-performance handheld 3D scanner designed for professionals and enthusiasts. With its infrared light source and advanced alignment modes, it delivers accurate and detailed scans for a wide range of applications.

Advantages

This scanner offers exceptional accuracy up to 0.1 mm and volumetric accuracy of 0.2 mm + 0.1 mm/m, ensuring precise results. Its fast scanning speed of 14 FPS and wide scan area of 310 x 220 mm make it efficient for capturing objects of various sizes. The built-in RGB camera enables full-color texture scanning, adding realism to your 3D models.

Suitable for

• Reverse engineering and product design
• Quality control and inspection
• Cultural heritage preservation
• Medical and dental applications
• Education and research

Key specifications

• Light Source: Infrared (IR)
• Scanning Mode: Handheld
• Alignment Mode: Feature, Marker, Hybrid
• Scanning Speed: 14 FPS
• Point Distance: 0.1 mm - 3 mm
• Accuracy: Up to 0.1 mm
• Volumetric Accuracy: 0.2 mm + 0.1 mm/m
• Scan Area: 310 x 220 mm
• Working Distance: 160 mm - 1400 mm
• Output Formats: OBJ, STL, PLY, ASC, 3MF, P3
• Texture Scan: Yes (Built-in RGB Camera)
• Color Texture: Yes
• Operating System: Windows 10/11 (64-bit)
• Connectivity: USB 3.0
• Software: EXStar
• Recommended Processor: Intel Core i7-11800H or higher
• Recommended RAM: 32 GB or higher
• Recommended Graphics Card: NVIDIA GeForce RTX 3060 (6GB VRAM) or higher

Recommendations

For optimal performance, ensure your computer meets the recommended specifications. The Einstar scanner is compatible with Windows 10/11 64-bit systems and requires a USB 3.0 port. Use the included EXStar software for seamless scanning and data processing.
