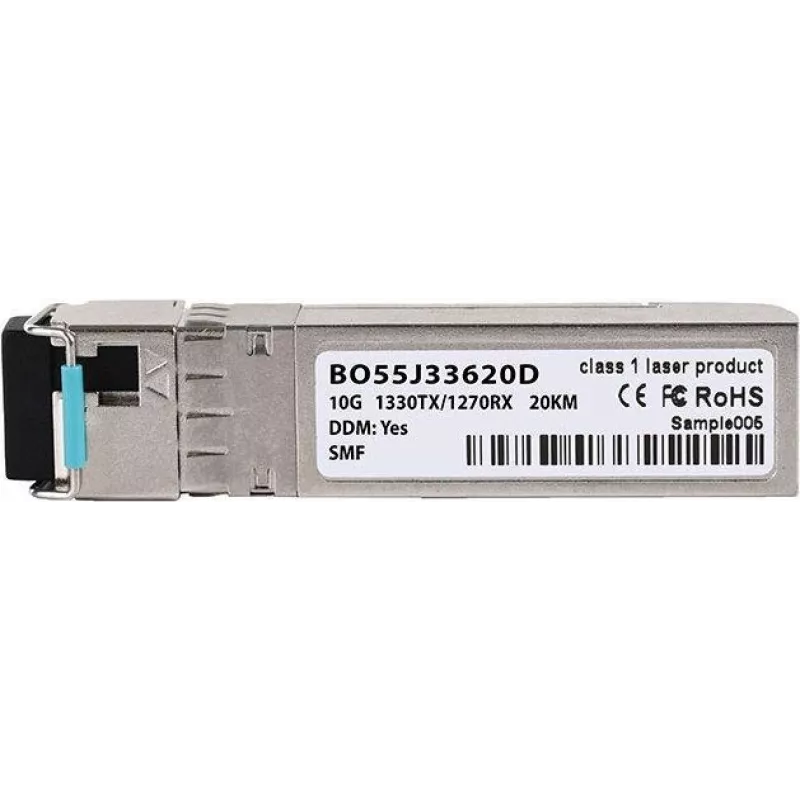

SFP Transceiver Module BlueOptics SFP-10G-BX10-D-20-BO 10000 Mbit/s SFP+ Silver

The BlueOptics SFP-10G-BX10-D-20-BO is a single‑mode fiber SFP+ transceiver module designed for 10 Gbit/s optical links. Housed in a silver metal casing, it supports SFP+ fiber optic connectivity and operates on a 3.3 V input. The module is specified for long‑reach single‑mode transmission and is suitable for integration into networking equipment that accepts SFP+ form‑factor modules.

Advantages

This SFP+ transceiver provides a 10,000 Mbit/s nominal data rate in a compact metal enclosure and is lightweight at approximately 20 g. It supports long transmission distances over single‑mode fiber and uses an industry‑standard SFP+ connector, facilitating interoperability with existing SFP+ ports. The metal housing assists with heat dissipation and mechanical protection during installation and operation.

Suitable for

Key specifications

How to use

Install the module into a compatible SFP+ port on a switch, router or other networking device while the host device is powered according to the vendor instructions. Connect the single‑mode fiber patch cord to the module’s optical interface, ensuring correct TX/RX alignment for a bidirectional BX link. Verify link status through the host device and, if available, enable Digital Diagnostic Monitoring (DDM/DOM) in the host to monitor supply voltage, laser bias current, output power, received power and temperature if the platform supports these features.

Recommendations

Use single‑mode fiber patch cords and, where applicable, LC simplex connections matched for BX bidirectional operation. Confirm compatibility with the host device’s firmware and enable DDM/DOM support on the platform to access diagnostic information. Handle the module and fiber connectors carefully to avoid contamination and maintain fiber endface cleanliness for optimal performance.
