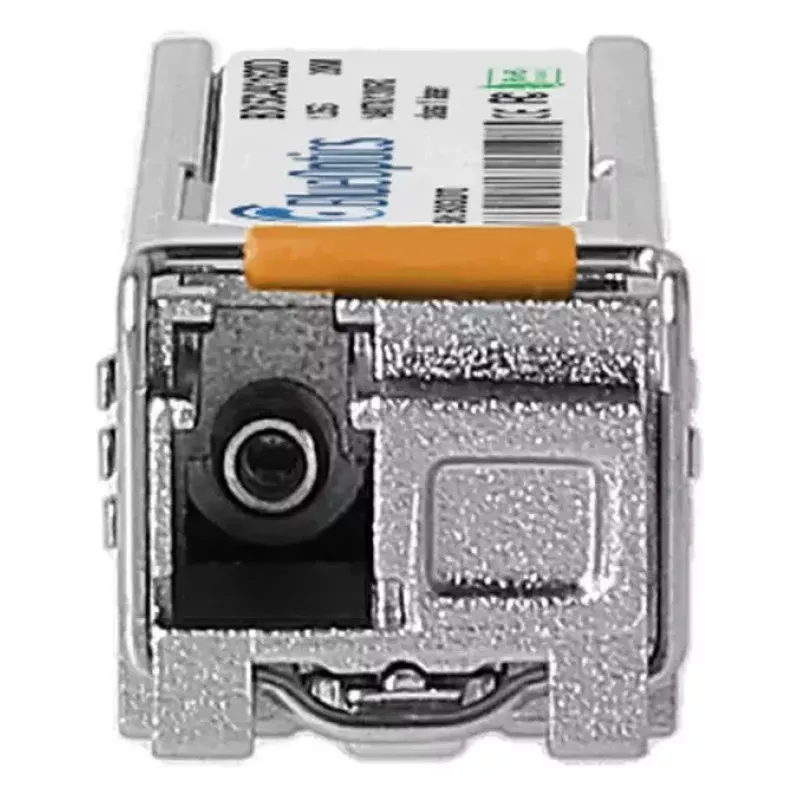

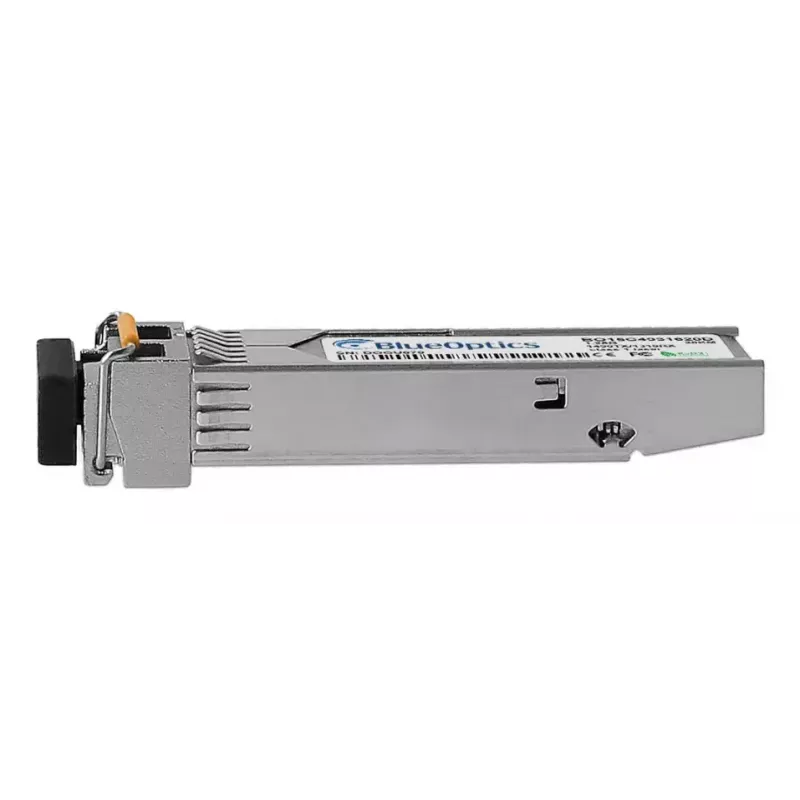

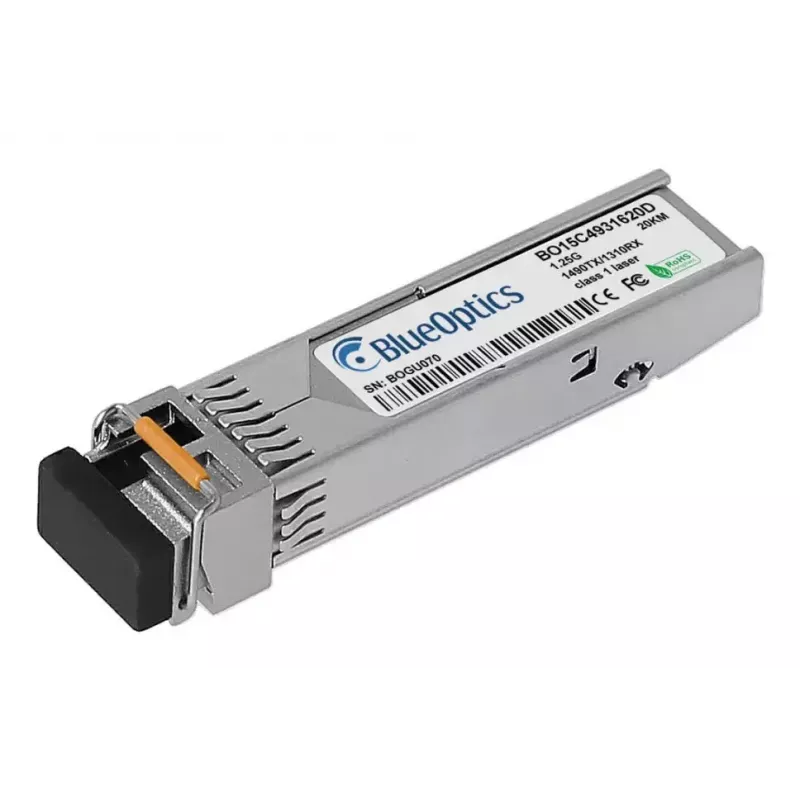

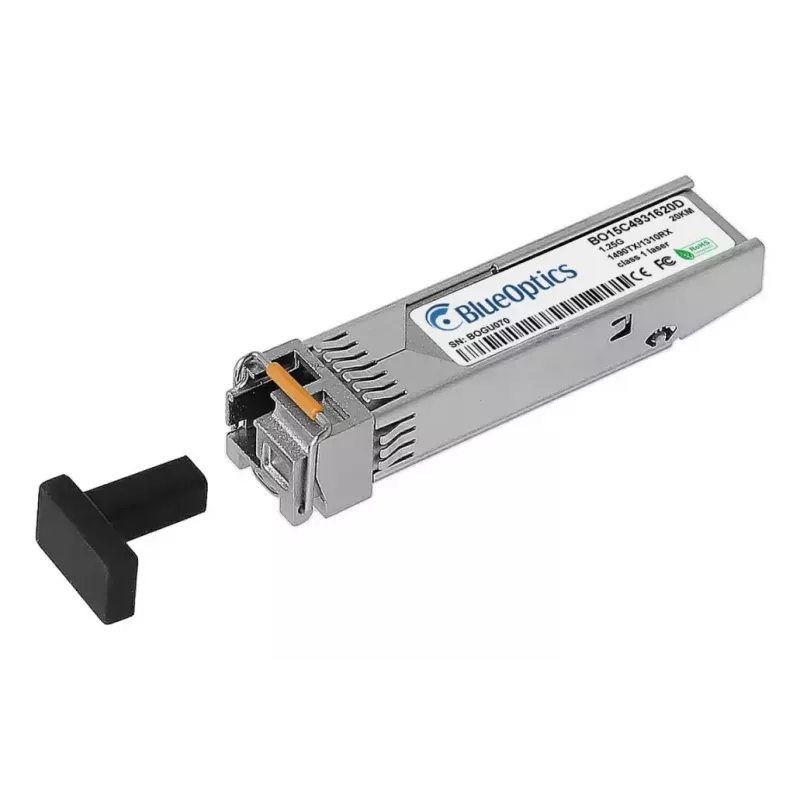

SFP transceiver module BlueOptics SFP-1000BASE-BX-D-BO Fiber optic LC

The BlueOptics SFP-1000BASE-BX-D-BO is a single-mode fiber optic SFP transceiver module with an LC simplex connector designed for 1.25 Gigabit Ethernet applications. Constructed with an aluminium housing and weighing approximately 20 g, the module supports optical transmission over distances up to 20,000 m. It implements a bidirectional (bi-di) design with separate transmit and receive wavelengths and complies with MSA physical specifications for hot-pluggable 1G SFP ports.

Advantages

This SFP module provides reliable single-mode fiber connectivity with a compact metal housing that supports standard LC interfaces. Its design supports industry-standard optical protocols and typical high-speed applications up to 1.25 Gbit/s while keeping a low physical footprint and lightweight construction. The module is compatible with hardware platforms that accept standard 1000BASE-BX-D SFP transceivers and is intended for long-reach links where electromagnetic immunity and low latency are important.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP-1000BASE-BX-D-BO into an empty SFP port on a compatible switch, router or media converter while the host is powered or following the device manufacturer’s hot-plug guidance. Connect an LC patch cable to the module’s LC simplex connector and ensure the matching bi-directional fiber pair is routed to the corresponding module on the remote device. Verify link status through the host device interfaces and confirm that the transmit/receive wavelengths and speed settings match the remote transceiver or aggregation equipment.

Recommendations

For optimal performance, use single-mode fiber cabling with appropriate LC patch cords and maintain clean connector endfaces. Confirm that the target hardware supports 1000BASE-BX-D or MSA-compliant SFP modules and enable any required digital diagnostic monitoring (DDM/DOM) support in the host to monitor optical parameters. Avoid excessive bending of fiber near the module and follow ESD precautions when handling the transceiver.
