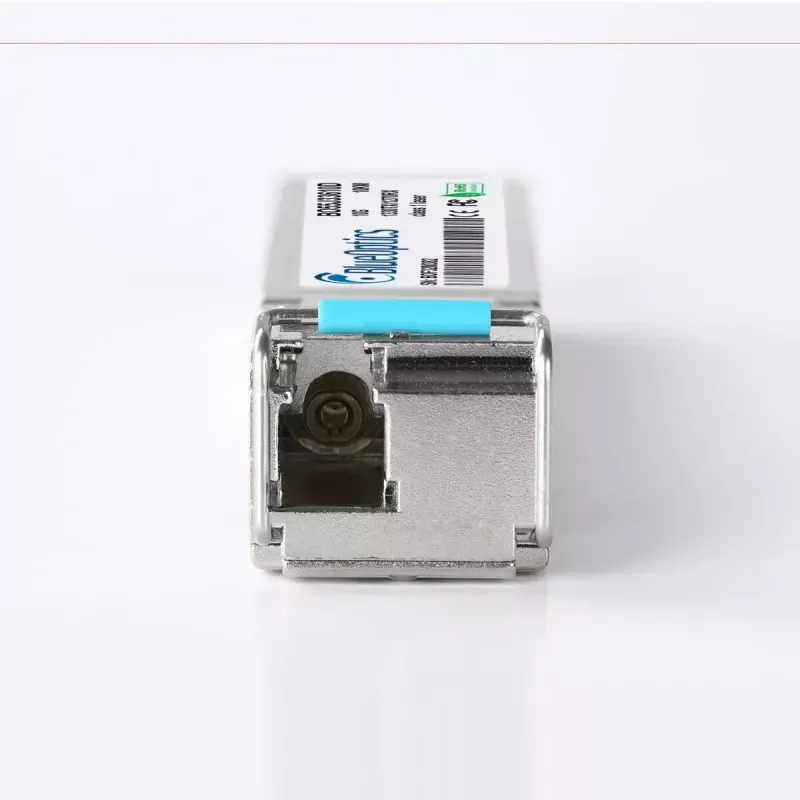

SFP+ transceiver module BlueOptics 02310QDT-BO 10000 Mbit/s Fiber optic

The BlueOptics 02310QDT-BO SFP+ transceiver module is a fiber optic pluggable device designed for 10 Gbit/s networks. It uses a metal housing with a silver finish, weighs approximately 20 g, and is built for long service life with an MTBF of around 1,000,000 hours. The module implements a 10GBASE-BX-D single-mode optical link with LC simplex connector and supports simultaneous transmit and receive on a single fiber using distinct wavelengths for TX and RX. The transceiver follows MSA SFP+ form-factor standards for mechanical and electrical interoperability.

Advantages

The module delivers up to 10000 Mbit/s data transfer over single-mode fiber and is compatible with hardware that accepts MSA-compliant SFP+ transceivers. Its metal housing provides mechanical protection and thermal stability, while the high MTBF indicates extended operational life. Built to support common optical protocols, the transceiver includes digital diagnostic monitoring capabilities where supported by host hardware, allowing real-time readout of parameters such as supply voltage, laser bias current, optical output/input power and temperature.

Suitable for

• 10 Gbit/s Ethernet uplinks and aggregation links
• Fibre Channel over Ethernet (FCoE) connections
• Long-reach single-mode links up to approximately 10 km
• Network switches, routers, storage systems and optical patch panels that accept SFP+ modules

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical type: single-mode fiber, 10GBASE-BX-D
• Connector: LC simplex
• Transmit wavelength: 1270 nm (typical for BX-D operation)
• Receive wavelength: 1330 nm (typical for BX-D operation)
• Housing: metal, silver
• Weight: 0.02 kg
• MTBF: approximately 1,000,000 hours
• Digital diagnostics: supported when host system provides DOM/DDM access

How to use

Install the SFP+ transceiver into an SFP+ port of a compatible switch, router or storage device by aligning and inserting the module until it latches. Connect an appropriate single-mode LC patch cord to the LC simplex connector; ensure the correct fiber polarity and that the remote link uses the matching BX-D wavelength pair. Verify that the host device recognizes the module and enables the SFP+ interface; enable DDM/DOM monitoring in the host if you intend to read diagnostic parameters. Follow device-specific guidelines for hot-plugging, electrostatic discharge protection and firmware compatibility.

Recommendations

For reliable operation, use single-mode fiber and LC simplex patch cords rated for 10 Gbit/s and ensure both ends of the link use compatible BX-D transceivers with matching wavelength assignments. Confirm compatibility with the target hardware and firmware; where available, enable digital diagnostic monitoring to track optical and electrical parameters and schedule periodic inspections of fiber connectors to maintain low-loss connections.
