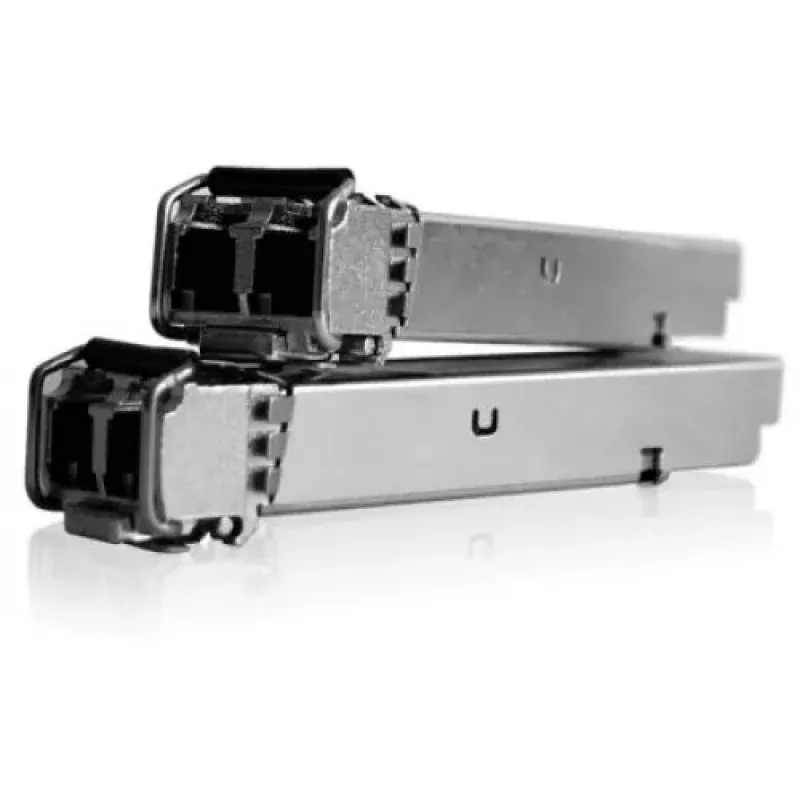

SFP transceiver module ADDER SFP-MM-LC multimode 850nm 550m

ADDER SFP-MM-LC is a multimode SFP transceiver module with LC connectors designed for use with ADDERLink Infinity systems. It supports a data rate of 4.25 Gbps over multimode fibre and is suitable for links up to 500 metres. The module is compatible with ALIF 1002 and ALIF Dual variants, which provide flexible link options including copper Gigabit Ethernet (1000Base-T) and Fibre Channel over Ethernet (FCoE).

Advantages

The SFP-MM-LC provides a standardized LC multimode interface for easy installation and hot-swap capability in ADDERLink Infinity units. It delivers up to 4.25 Gbps on multimode fibre for medium-range connections and is interoperable with other SFP options offered for the platform. When used in ALIF Dual units, the platform supports link teaming for higher aggregate throughput and redundancy.

Suitable for

• Medium-range fibre connections in KVM and AV-over-IP installations
• Fibre Channel over Ethernet (FCoE) and video/data links within ADDERLink Infinity systems
• Environments requiring 4.25 Gbps multimode links up to 500 metres

Key specifications

• Form factor: SFP multimode transceiver
• Connector type: LC
• Wavelength: 850 nm
• Maximum distance (multimode): up to 500 metres (product text) — product data notes up to 550 m
• Data rate: up to 4.25 Gbps
• Compatible units: ADDERLink Infinity ALIF 1002 and ALIF Dual
• MPN: SFP-MM-LC, EAN: 5706998711137

How to use

Insert the SFP-MM-LC transceiver into the SFP cage on the ADDERLink Infinity unit, ensuring proper orientation. Connect LC-terminated multimode fibre cables to the transceiver and configure the host unit according to the ADDERLink Infinity setup instructions. The transceiver supports hot-plugging, but observe standard electrostatic discharge precautions and confirm link status in the system interface after installation.

Recommendations

Use suitable OMx multimode fibre cabling and verified LC connectors to achieve specified distances; for longer runs, consider the single-mode SFP option. When deploying ALIF Dual units, enable teaming only when supported by your network design to gain redundancy and aggregated throughput.
