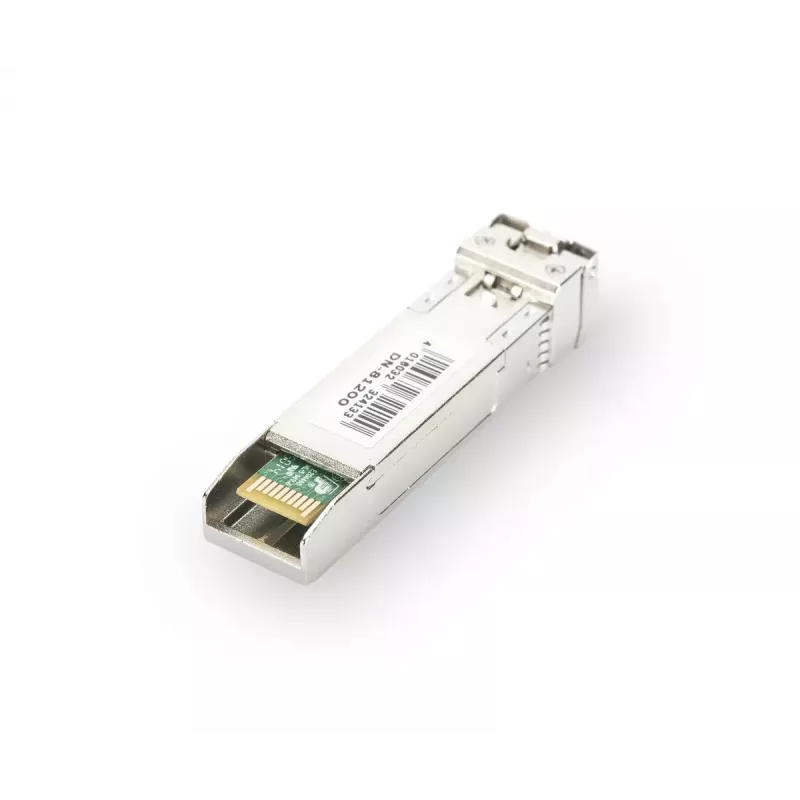

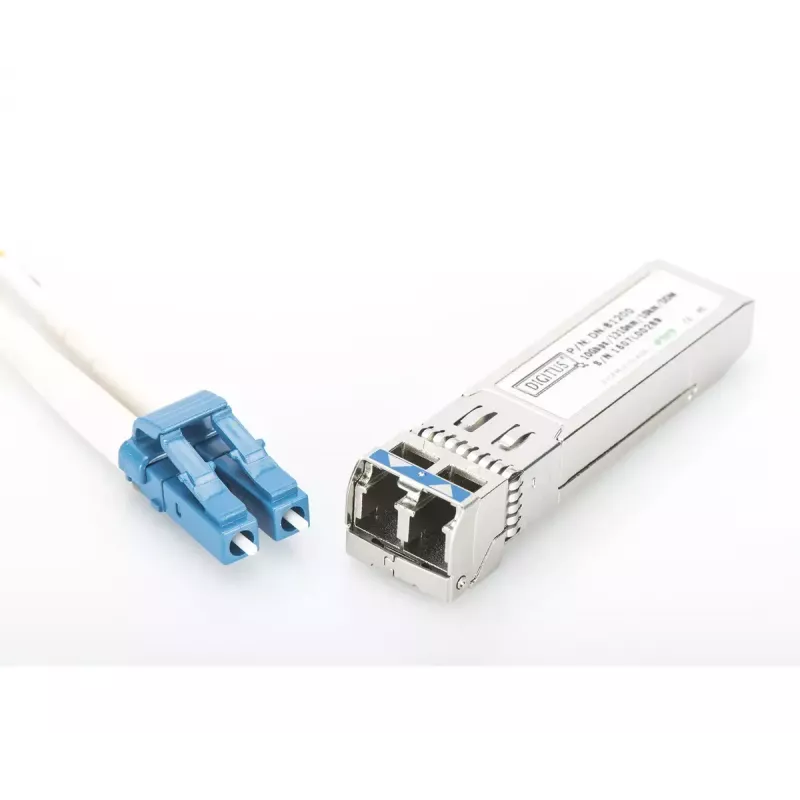

SFP+ Transceiver Digitus DN-81200-01

The DIGITUS SFP+ Transceiver DN-81200-01 is a plug-and-play multimode fiber module that delivers 10 Gigabit Ethernet connectivity over LC-terminated fiber. It operates at 850 nm and supports data transmission for distances up to 300 m, with digital diagnostic monitoring (DDM) and MSA compliance for broad compatibility with switches, media converters and other network equipment.

Advantages

The module enables quick installation without configuration thanks to its plug-and-play design. It supports high-quality, reliable data transmission at up to 10 Gbps and offers environmental resilience with an operating temperature range from 0 °C to 70 °C. MSA compliance and HP-compatibility ensure interoperability with devices from multiple manufacturers.

Suitable for

• High-speed uplinks between switches and routers
• Connections between media converters and network devices
• Data center server or switch interconnects over multimode fiber
• Short-range 10 Gigabit Ethernet links in enterprise networks

Key specifications

• Model: DIGITUS DN-81200-01 (SFP+)
• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Wavelength: 850 nm
• Maximum transfer distance: 300 m (multimode fiber)
• Connector type: LC
• Ethernet interface: 10 Gigabit Ethernet
• Operating temperature: 0 °C to 70 °C
• Standards: MSA compliant; HP-compatible

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or media converter until it clicks into place. Connect LC-terminated multimode fiber cables to the module and the remote device, observing correct transmit/receive orientation. The module is plug-and-play; once seated and connected it negotiates link parameters automatically and can be monitored via DDM if supported by the host device.

Recommendations

Use multimode OM3/OM4 fiber for optimal performance at 10 Gbps and keep links below the specified 300 m maximum. Ensure host devices support SFP+ and the transceiver’s vendor compatibility mode if required; follow ESD precautions when handling the module.
