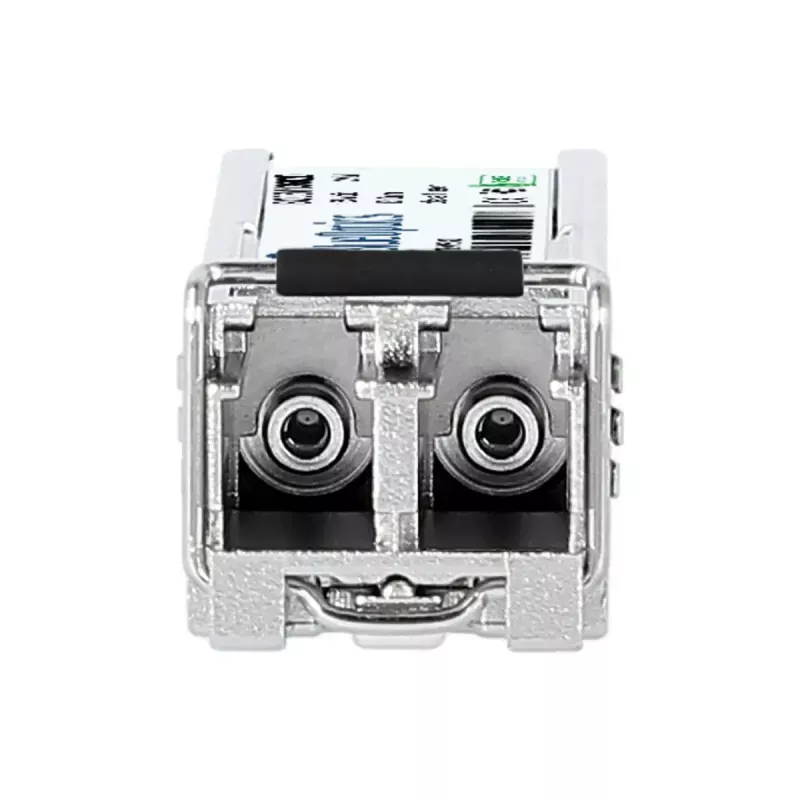

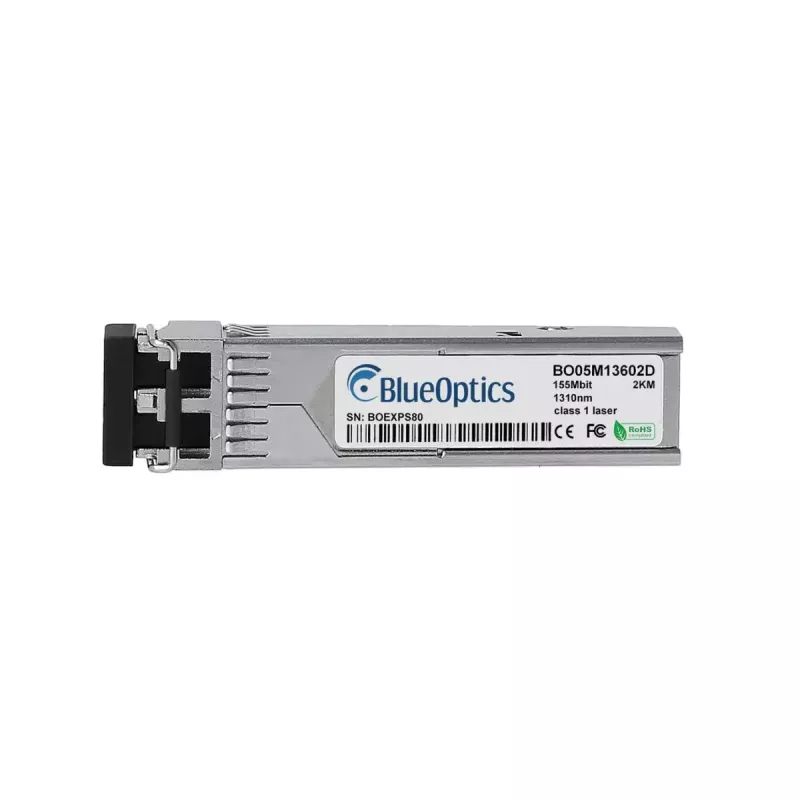

SFP transceiver BlueOptics SFP-FDSGMII-M-BO 155 Mbit/s 1310 nm

The BlueOptics SFP-FDSGMII-M-BO 155 Mbit/s 1310 nm is a single‑port SFP fiber transceiver designed for optical data links up to 155 Mbit/s. Housed in a compact metal casing and weighing approximately 3 g, the module provides duplex LC connectivity and operates at a 1310 nm wavelength with a 3.3 V supply. It follows MSA SFP form-factor conventions and is compatible with equipment that accepts 100BASE-FX / 155 Mbit/s SFP modules, supporting multimode fiber installations and standard Ethernet or synchronous transfer applications.

Advantages

The transceiver offers a compact metal housing for mechanical protection and thermal stability, low weight for easy handling, and straightforward hot‑swap installation into SFP slots. It supports optical transmit and receive at 1310 nm with LC duplex connectors, enabling simultaneous bidirectional communication over a two-fiber multimode link. The module is manufactured to common MSA standards and is tested for compatibility with major hardware platforms that accept 100BASE-FX SFP modules.

Suitable for

• 100BASE-FX and other 155 Mbit/s Ethernet or SDH/SONET optical links
• Connections between switches, routers and storage systems with SFP ports
• Multimode fiber backbone segments up to typical multimode distances
• Network upgrades or spare-part replacement for compatible SFP ports

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Optical wavelength: 1310 nm
• Connector: LC duplex (optical)
• Power supply: 3.3 V operating voltage
• Housing: metal casing
• Weight: approx. 0.003 kg
• Product colour: silver

How to use

Install the SFP transceiver into a compatible SFP slot on your switch, router or other network device while the host supports the 100BASE-FX / 155 Mbit/s optical interface. Connect an LC duplex multimode fiber patch cable with correct polarity to the module's LC ports. Ensure the host device provides a 3.3 V supply on the SFP slot and supports the required link protocols. For best results, clean fiber connectors before mating and verify link status via the host device indicators or management interface.

Recommendations

Use multimode fiber patch cords and adhere to the supported distance limits for 1310 nm multimode operation; confirm that the host hardware supports the SFP type and any digital diagnostics/DOM features before deployment. Keep spare modules in anti‑static packaging and avoid mechanical stress on fiber connections to preserve link quality.
