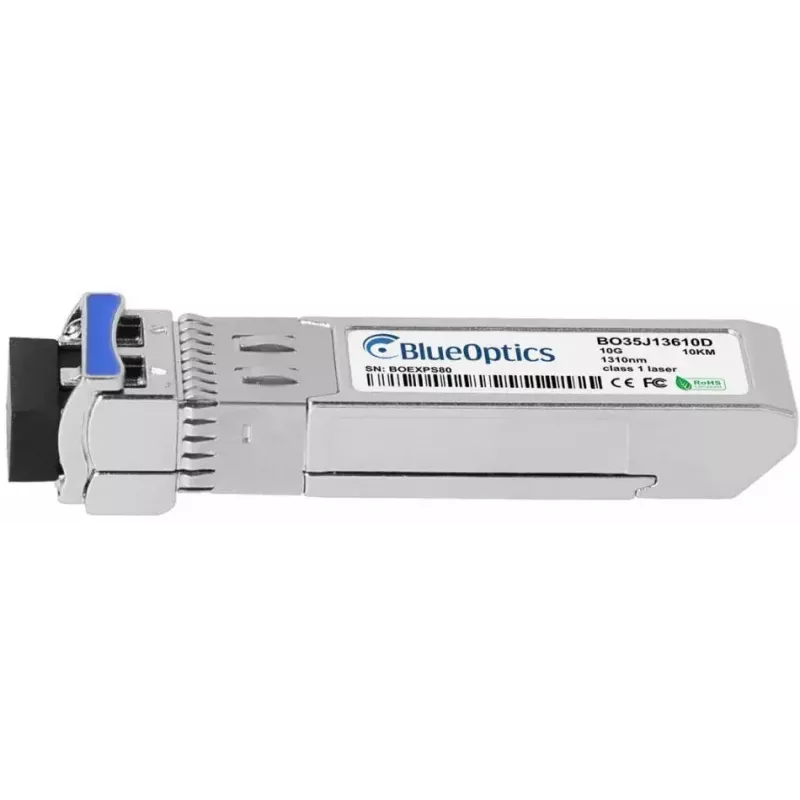

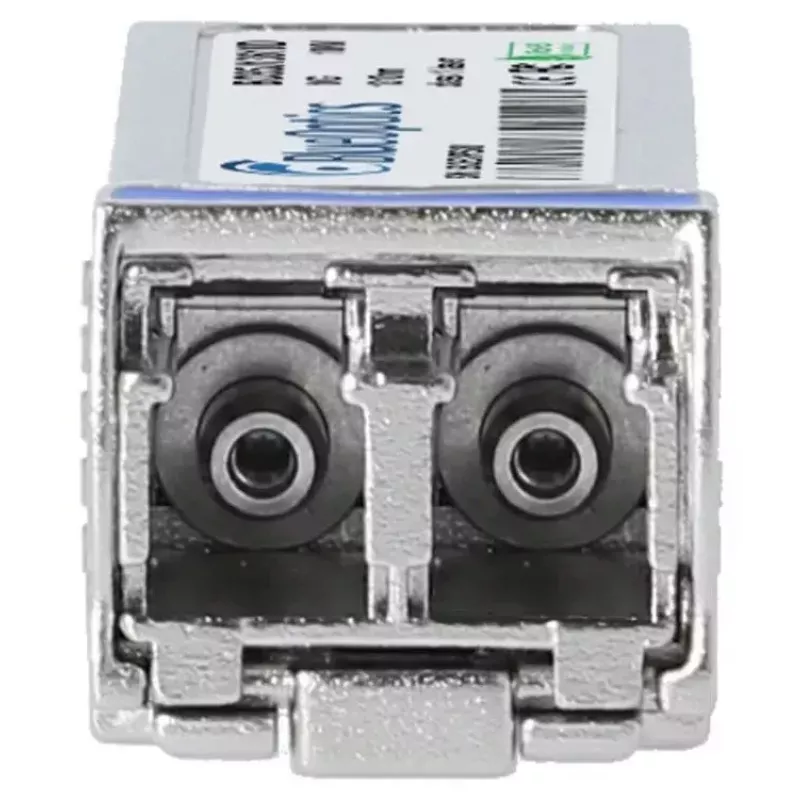

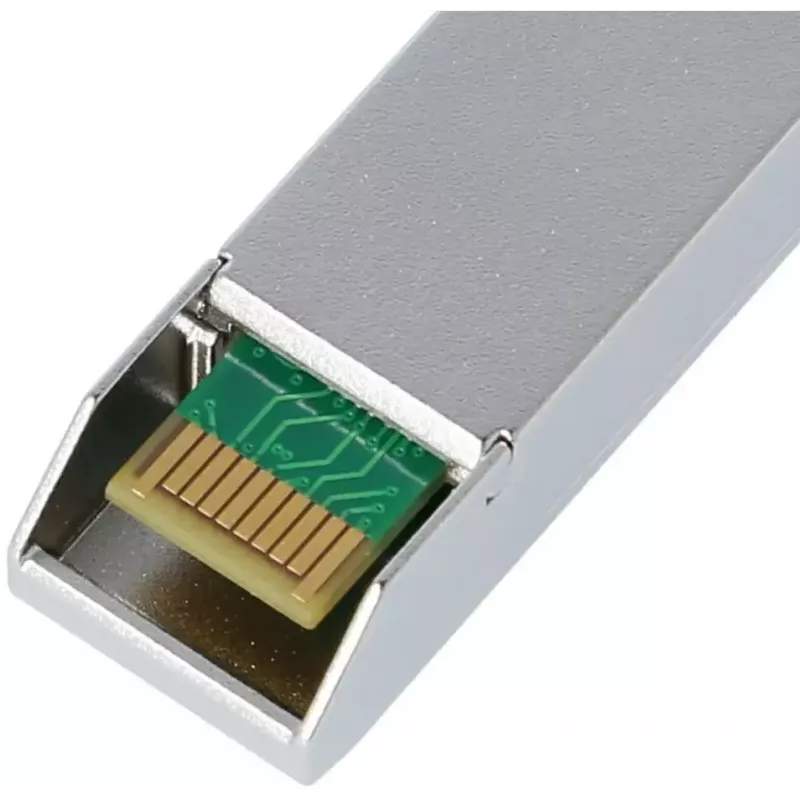

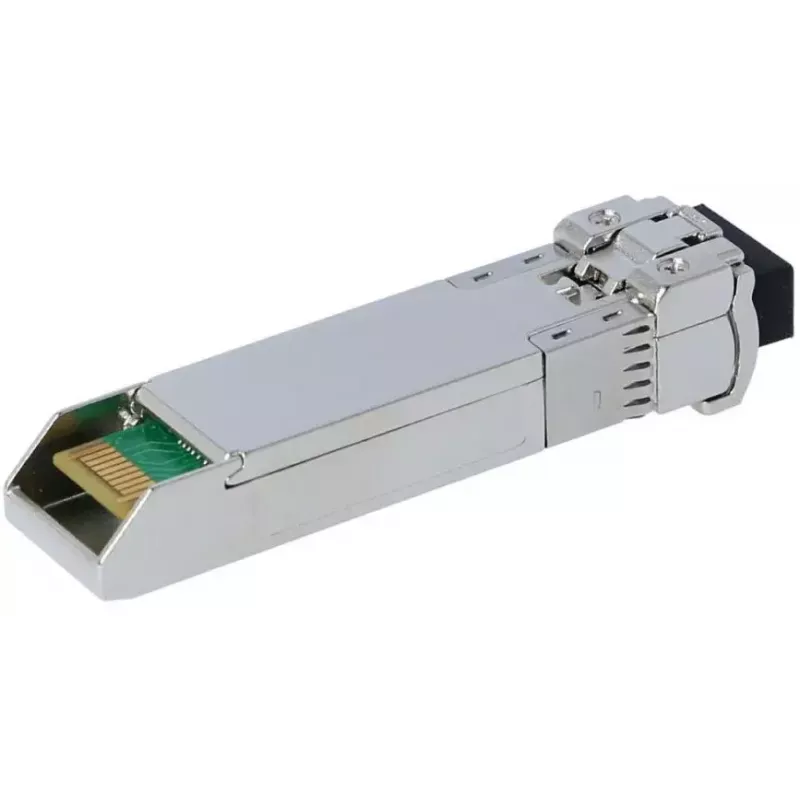

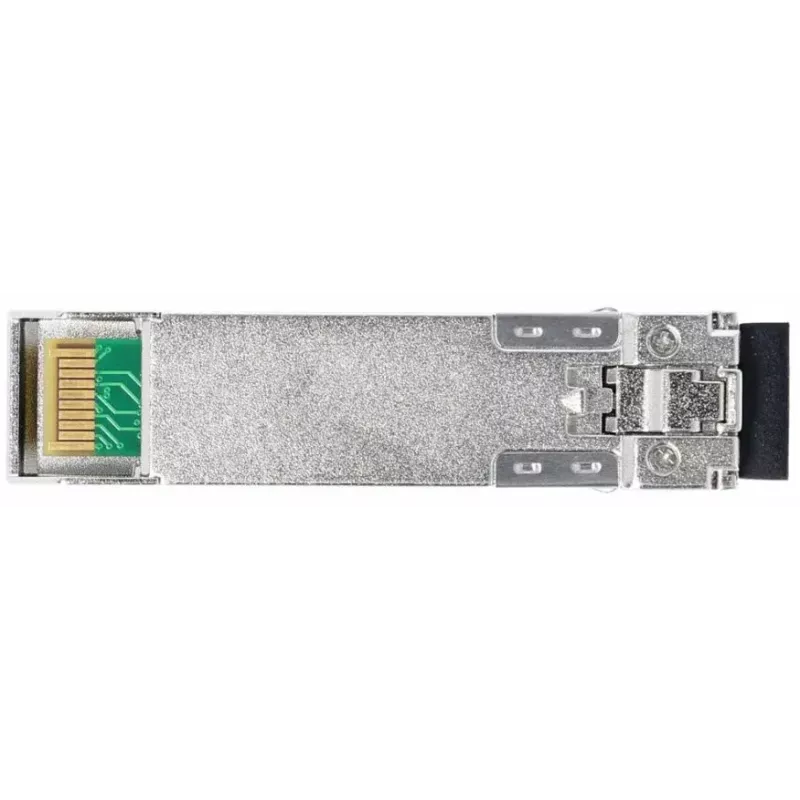

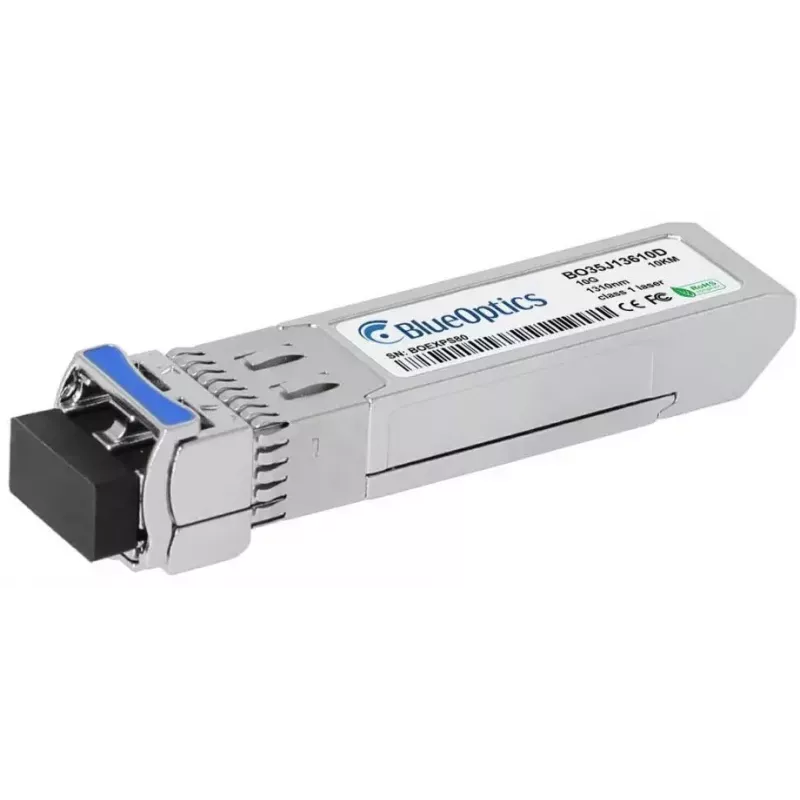

SFP Transceiver BlueOptics SFP-10G-GIG-LR 10G 1310nm SFP+

The BlueOptics SFP-10G-GIG-LR 10G 1310nm SFP+ is a long-range fiber optic transceiver module designed for 10 Gigabit Ethernet links. It supports a maximum data transfer rate of 10000 Mbit/s and uses a 1310 nm wavelength for single-mode fiber transmission. The module is compact and lightweight (0.02 kg) with a silver housing, making it suitable for installation in SFP+ ports of switches, routers and servers that require LR (long reach) connectivity.

Advantages

This BlueOptics SFP+ transceiver provides a standardized SFP+ interface for interoperability with compatible networking equipment and supports high-speed 10G links over long distances using 1310 nm optics. Its compact form factor and light weight simplify handling and installation while the metal housing offers physical durability and heat dissipation. The module is vendor-branded for easy identification and intended for applications that require stable, long-range single-mode fiber communication.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and core network devices
• Long-range single-mode fiber connections in data centers and telecom rooms
• Server-to-switch connections requiring LR optics
• Fiber optic link upgrades and replacement of compatible SFP+ modules

Key specifications

• Form factor: SFP+ compatible transceiver module
• Data rate: up to 10000 Mbit/s (10 Gbps)
• Operating wavelength: 1310 nm for single-mode fiber
• Application: LR (long reach) single-mode fiber transmission
• Weight: 0.02 kg (20 g)
• Color: silver metal housing

How to use

Ensure the host device supports SFP+ modules and is powered off or that hot-swap procedures are followed according to the device manual. Align the transceiver with the SFP+ port and insert it until it clicks into place, then secure any retention mechanism provided by the host. Connect the appropriate single-mode fiber cable with compatible LC connectors to the module. After installation, verify link status and configure network settings on the connected devices as required for 10 Gbps operation.

Recommendations

Use single-mode fiber rated for long-distance transmission and verify fiber polarity and connector cleanliness before insertion. Check compatibility lists for the host equipment when possible and follow electrostatic discharge (ESD) precautions during handling. If link negotiation fails, confirm SFP+ mode support, correct wavelength, and that transceiver firmware or device drivers are up to date.
