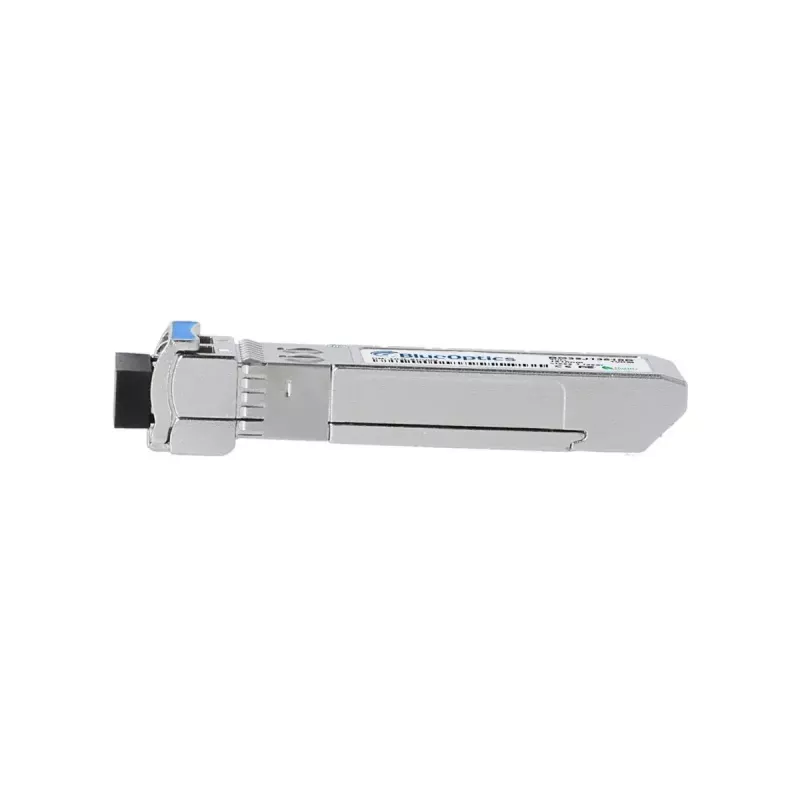

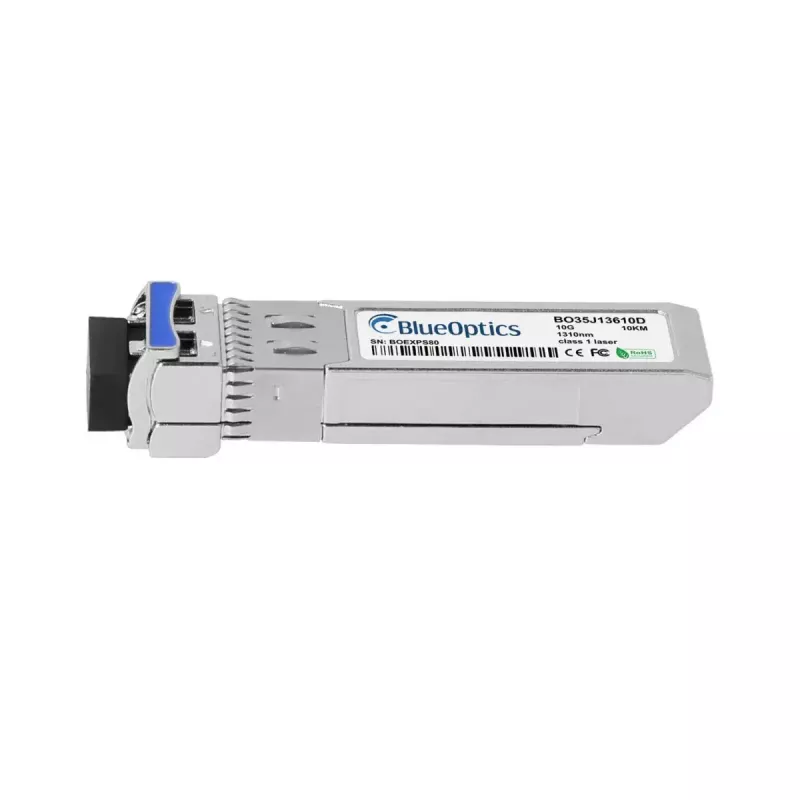

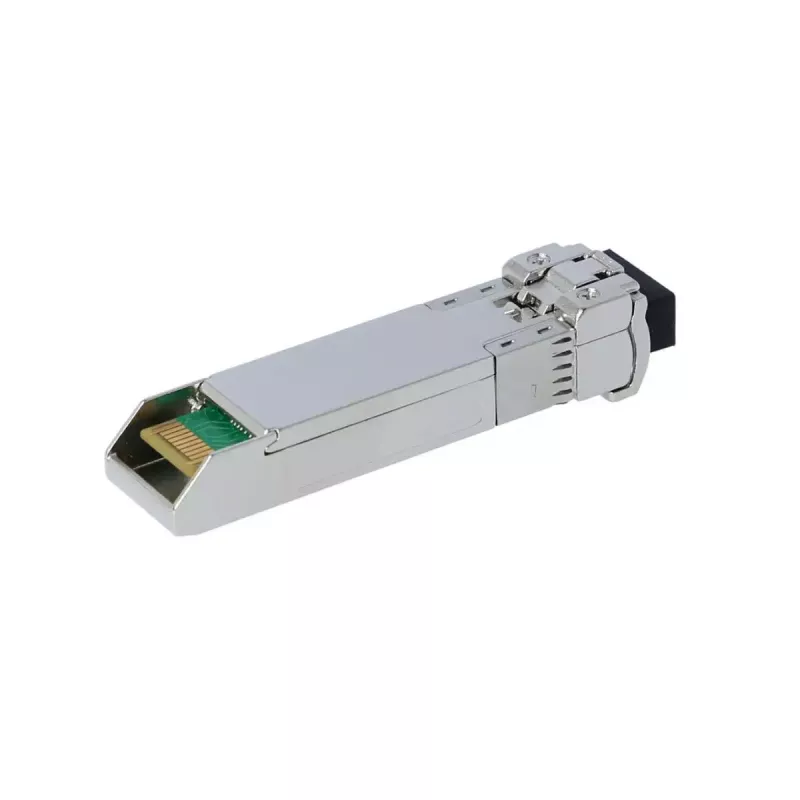

SFP+ transceiver BlueOptics CPAC-TR-10LR-B-BO 10000 Mbit/s Fiber optic

The BlueOptics CPAC-TR-10LR-B-BO is an SFP+ fiber optic transceiver module designed for 10GBASE-LR links over single-mode fiber. The module supports a maximum data transfer rate of 10000 Mbit/s, uses an LC duplex optical connector and is built in a metal housing with a compact SFP+ form factor. With an MTBF rating of 1,000,000 hours and a weight of approximately 20 g, the transceiver is intended for use in network equipment that accepts MSA-compliant SFP+ modules.

Advantages

The transceiver delivers 10 Gbit/s optical connectivity with a compact SFP+ footprint and an LC duplex interface, enabling simultaneous transmit and receive over two fibers. Metal housing provides mechanical robustness and thermal dissipation while the high MTBF indicates long operational lifetime. Compliance with MSA electrical, mechanical and functional specifications ensures interoperability with a wide range of switches, routers and storage devices that support SFP+ 10GBASE-LR modules.

Suitable for

• 10G Ethernet uplinks and aggregation links over single-mode fiber
• Data center interconnects and server-to-switch connections
• Storage area networks and Fibre Channel over Ethernet implementations
• Long-reach optical links up to the module's supported distance for 10GBASE-LR

Key specifications

• Interface type: SFP+
• Supported protocol: 10GBASE-LR (optical)
• Maximum data transfer rate: 10000 Mbit/s
• Connector type: LC duplex
• Optical medium: single-mode fiber
• Transceiver housing: metal
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or storage device until it latches. Connect an LC duplex single-mode patch cable with matching polarity to the module's LC connector—one fiber for transmit and the other for receive. Ensure the host device supports 10GBASE-LR optics and, if required, enable digital diagnostic monitoring (DDM/DOM) in the device firmware to read real-time parameters. Follow the host equipment vendor guidelines for hot-plugging and grounding to avoid damage during insertion or removal.

Recommendations

Use single-mode LC duplex fiber patch cords and compatible MSA-compliant SFP+ ports; verify DDM/DOM support on the connected hardware when remote monitoring is required. Store and handle the transceiver in a clean, dry environment and avoid touching optical interfaces to maintain signal quality.
