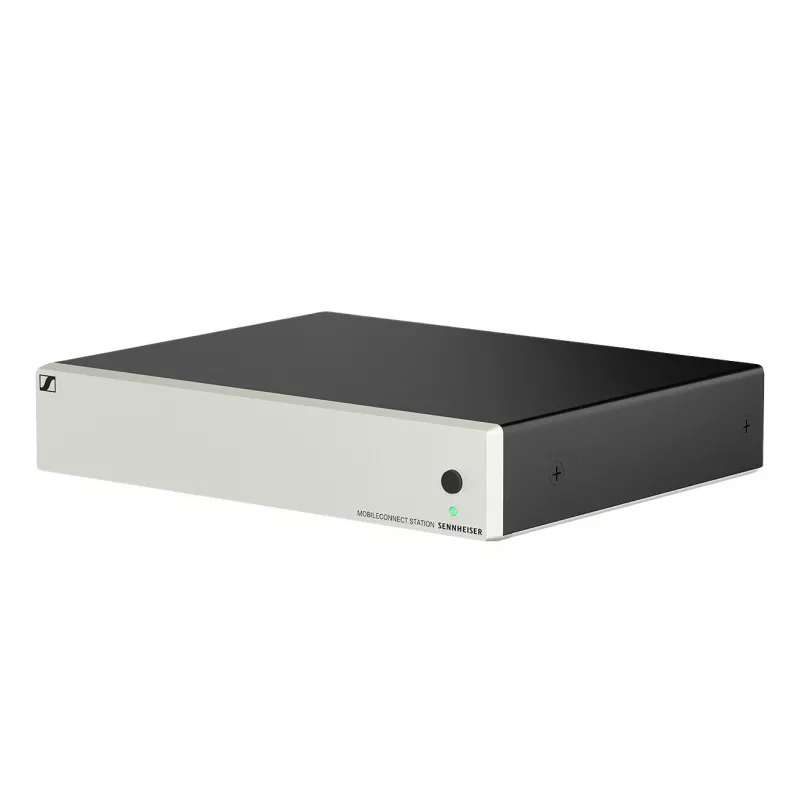

Sennheiser MobileConnect Connect Station with 2 (508895)

Stream audio to up to 100 mobile devices with less than 50 ms latency using the Sennheiser MobileConnect Connect Station.

Overview

The Sennheiser MobileConnect Connect Station is a professional audio streaming device designed for assistive listening and live audio streaming applications. It accepts balanced XLR/6.3 mm combo inputs and unbalanced RCA stereo inputs, converting them into a low-latency digital stream for the MobileConnect app on iOS and Android.

What stands out

• Supports up to 100 simultaneous users, depending on network infrastructure
• System latency below 50 ms for real-time listening
• Dual XLR/6.3 mm combo inputs with +24 dBu maximum level
• RCA stereo input for consumer line-level sources
• Gigabit Ethernet interface for reliable network integration
• Web interface and API for configuration and control

Technical details

• Audio inputs: 2 x XLR/6.3 mm combo (balanced/unbalanced), 1 x RCA stereo (unbalanced)
• Input impedance: 20 kΩ (XLR balanced), 10 kΩ (RCA unbalanced)
• Maximum input level: +24 dBu (XLR), +12 dBu (RCA)
• Frequency response: 20 Hz - 20 kHz
• Dynamic range: > 90 dB
• THD+N: < 0.01%
• Network: 1 x RJ45 Gigabit Ethernet
• Power supply: external 12V DC, 3A; max consumption 36 W
• Housing: metal; desktop or 19" rack mount with optional adapter kit
• Operating temperature: 0°C to +40°C

Our verdict

A robust streaming hub for venues needing scalable, low-latency assistive audio delivery to personal devices.
