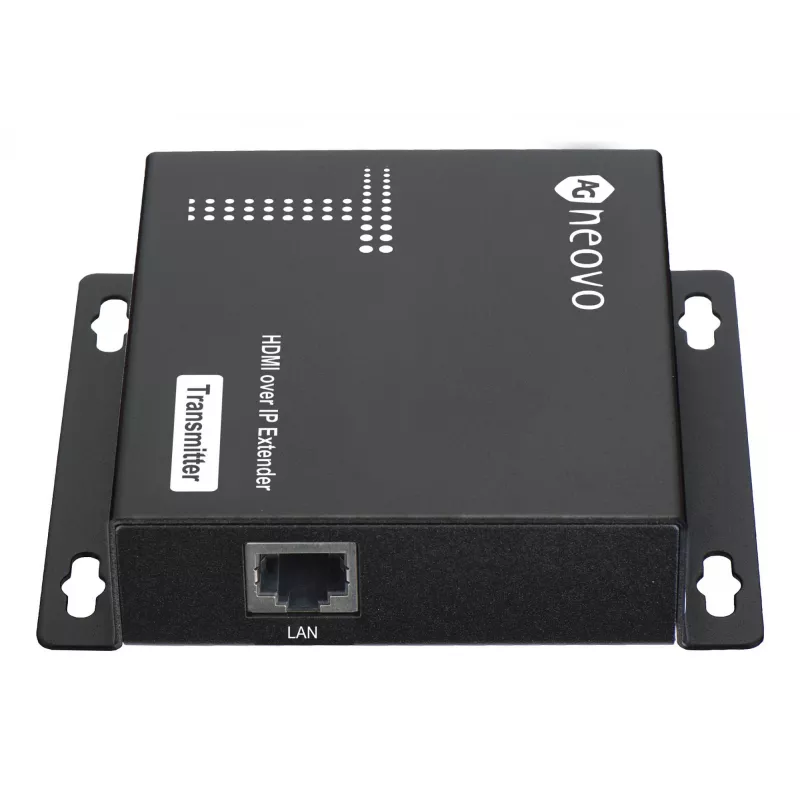

AG Neovo HIP-TA HDMI over IP Transmitter - Full HD 1080p, H.264, 100m over Cat5e/6, Black

Deliver Full HD 1080p video up to 100 metres over standard Cat5e/6 cabling with the AG Neovo HIP-TA HDMI over IP Transmitter. This compact encoder uses H.264 compression to stream crisp 1920 x 1080 signals with stereo audio and HDCP 1.4 compliance, making it ideal for digital signage, conference rooms, and classroom AV distribution.

Overview

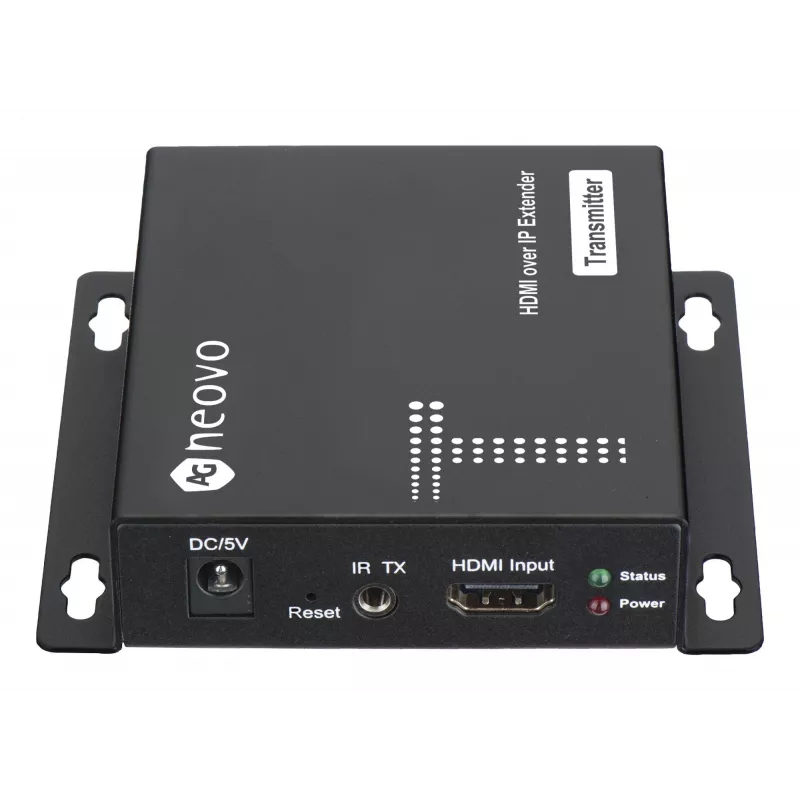

The HIP-TA is a wired HDMI over IP transmitter that converts HDMI input into an IP stream for transmission over a local network. It features one HDMI Type A input, one RJ-45 Ethernet output, and a USB 2.0 Type B port for KVM/PC connection. Control options include RS-232 and IR input, allowing seamless integration with existing control systems. Powered by a 5V DC supply (2A), it consumes less than 5W, ensuring energy-efficient operation.

What stands out

• Full HD 1080p resolution with H.264 compression for high-quality video over IP
• Extends signals up to 100 m using cost-effective Cat5e/6 cables
• Supports stereo audio and HDCP 1.4 for protected content
• USB 2.0 Type B port enables KVM extension
• RS-232 and IR input for flexible control
• Compact metal housing, wall-mountable, in black

Technical details

• Max resolution: 1920 x 1080 (Full HD)
• Video compression: H.264
• Transmission distance: up to 100 m
• Network protocol: TCP/IP
• Latency: < 100 ms
• Video input: 1x HDMI Type A
• Video output: 1x RJ-45
• USB: 1x USB 2.0 Type B
• Control: 1x RS-232, 1x IR in
• HDCP: 1.4
• Audio: stereo, LPCM
• Power: DC 5V/2A, < 5W
• Operating temperature: 0°C to 40°C
• Dimensions (W x D x H): 93.5 x 103.5 x 24.6 mm
• Weight: 0.22 kg
• Colour: Black
• Material: Metal
• Mounting: Wall-mountable

Our verdict

A reliable and efficient HDMI over IP transmitter that delivers Full HD video over standard network cabling. Its compact size, low power consumption, and versatile control options make it a smart choice for professional AV installations.
