Semi built-in extractor Teka TL 6310, Metal filter, Noise level: N/A

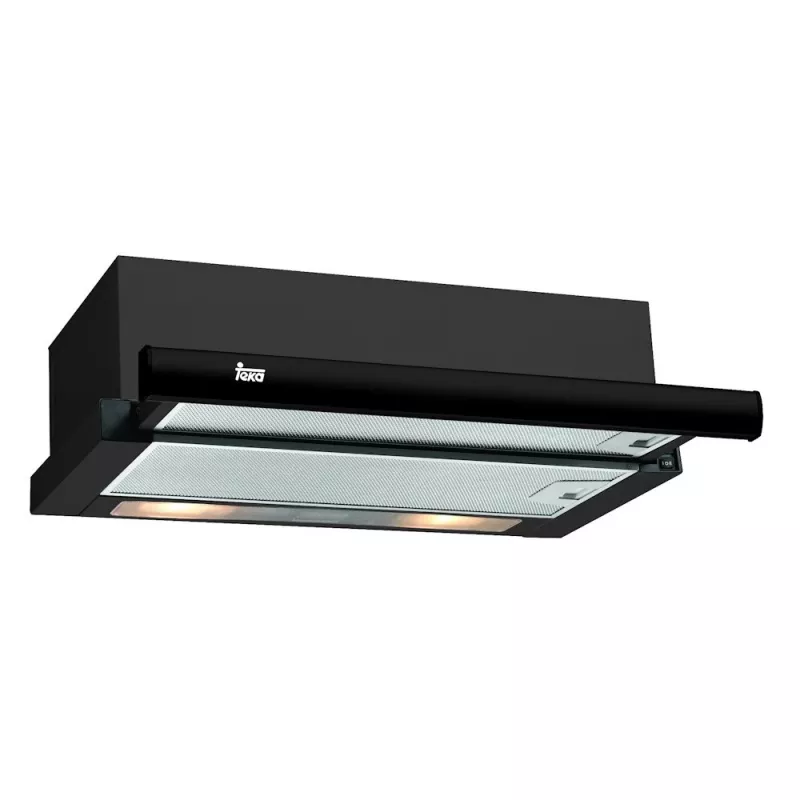

The Teka TL 6310 is a semi built-in extractor hood designed for integration into kitchen cabinets while providing effective air extraction. Finished in black, this model offers a maximum extraction power of 332 m³/h and operates as a ducted unit. It is equipped with a metal grease filter and two halogen bulbs (28 W each) to illuminate the cooking surface. Control is handled via push buttons, and the appliance has a compact footprint with a width of 600 mm, a height of 181 mm and a depth of 413 mm. Annual energy consumption is rated at 138 kWh with a connected load of 213 W and a motor power of 175 W.

Advantages

The Teka TL 6310 provides a balance of extraction performance and space-saving installation suitable for semi built-in applications. The metal grease filter is durable and washable, supporting longevity and reduced maintenance costs. Two halogen lamps deliver focused light over the hob while keeping the unit design simple and straightforward. The push-button control offers an intuitive user experience for adjusting extraction settings. Energy-related data such as annual consumption and motor power allow users to estimate running costs and compatibility with kitchen electrical capacity.

Suitable for

• Medium domestic kitchens where a semi built-in extractor is preferred
• Hobs requiring up to 332 m³/h extraction capacity
• Installations where a black finish and compact dimensions are desired
• Users who prefer manual push-button controls and halogen lighting

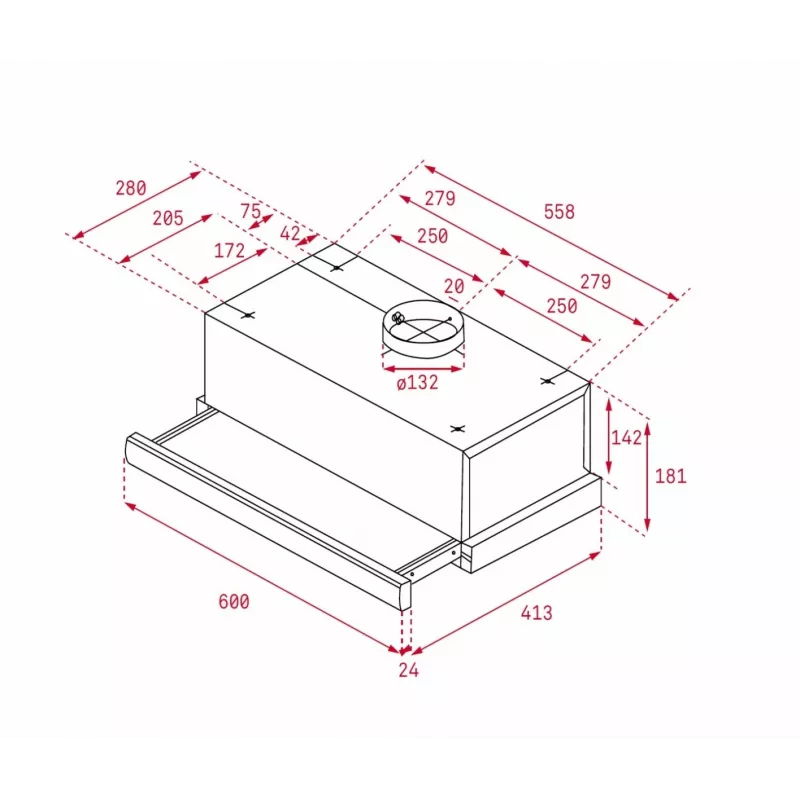

Key specifications

• Type: Semi built-in (pull-out) ducted extractor
• Width: 600 mm
• Height: 181 mm
• Depth: 413 mm
• Maximum extraction power: 332 m³/h
• Noise level: 56 dB
• Grease filter type: Metal (washable)
• Control type: Buttons
• Lighting: 2 × halogen bulbs, 28 W each
• Energy efficiency class: D
• Annual energy consumption: 138 kWh
• Connected load: 213 W
• Motor power: 175 W
• Colour: Black

How to use

Install the extractor according to the manufacturer’s installation instructions for semi built-in units, ensuring proper ducting to the outside if operating in ducted mode. Use the push-button control to switch the unit on, select the required extraction speed and switch the lights on or off. Replace or clean the metal grease filter regularly to maintain extraction efficiency; halogen bulbs can be replaced with identical rated bulbs when necessary. Ensure the extractor is connected to a suitable electrical supply matching the appliance’s connected load.

Recommendations

For optimal performance, operate the hood at a medium or high extraction setting during heavy cooking and ventilate the kitchen briefly after use. Clean the metal grease filter at regular intervals according to cooking frequency, and check duct connections periodically for obstructions. Use halogen bulbs with the specified wattage to maintain correct illumination and electrical load.
