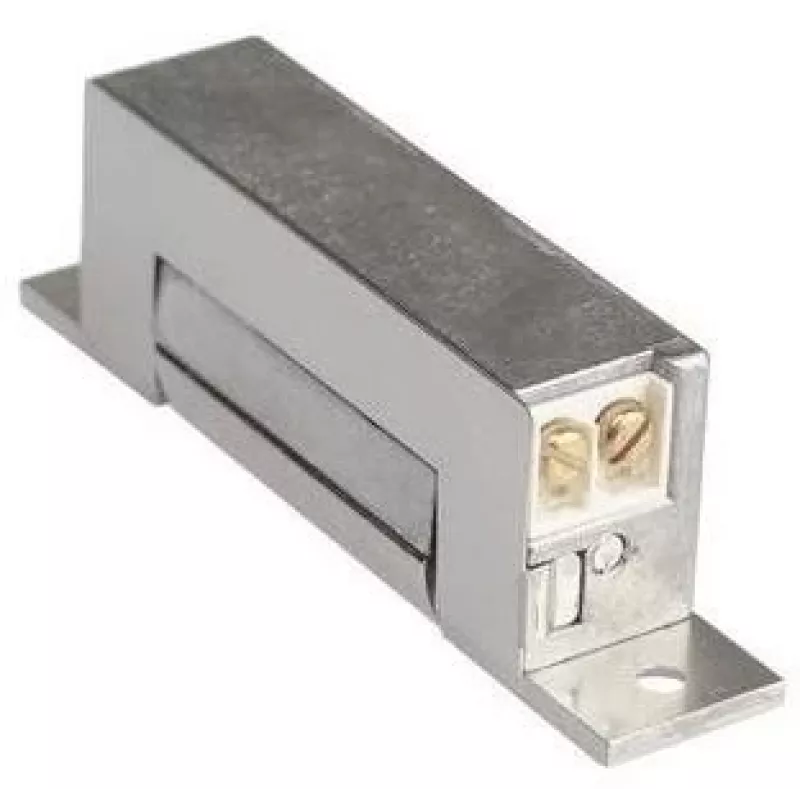

SCOT ES-S12DCN PROFI Symmetrical Low-Current Electric Door Strike 12V DC Fail-Secure

The SCOT ES-S12DCN PROFI is a professional-grade symmetrical electric door strike designed for access control systems and intercoms. Engineered for low current consumption and high holding force, it ensures reliable operation in demanding environments. The fail-secure mode keeps the door locked during power loss, enhancing security.

Advantages

Low current consumption (250 mA) reduces power supply load and extends system life. High holding force of 3500 N (approx. 350 kg) provides robust security. Adjustable latch (3 mm) allows fine-tuning for door alignment. Durable construction with 300,000 cycles ensures long-term reliability.

Suitable for

• Access control systems in commercial buildings
• Intercom-controlled door entry
• Security doors requiring fail-secure locking
• Retrofit installations with standard door frames

Key specifications

• Product Type: Electric Door Strike
• Design: Symmetrical
• Operating Mode: Fail-Secure
• Operating Voltage: 12V DC
• Current Consumption: 250 mA
• Holding Force: 3500 N
• Durability: 300,000 cycles
• Adjustable Latch: Yes (3 mm)
• Mounting: Recessed / Flush Mount
• Handing: Non-handed (Reversible)
• Body Material: Zinc Alloy
• Latch Material: Steel
• Operating Temperature: -20°C to +50°C
• Power Supply: DC
• Special Feature: Low Current Consumption

Recommendations

For optimal performance, use with a regulated 12V DC power supply. Ensure proper alignment of the latch with the door frame. Suitable for indoor use only.
