SCOT ES-S12AC/DC-MB PROFI Symmetrical Electric Strike with Memory and Blockade, 12V AC/DC, Fail-Secure, 3000N

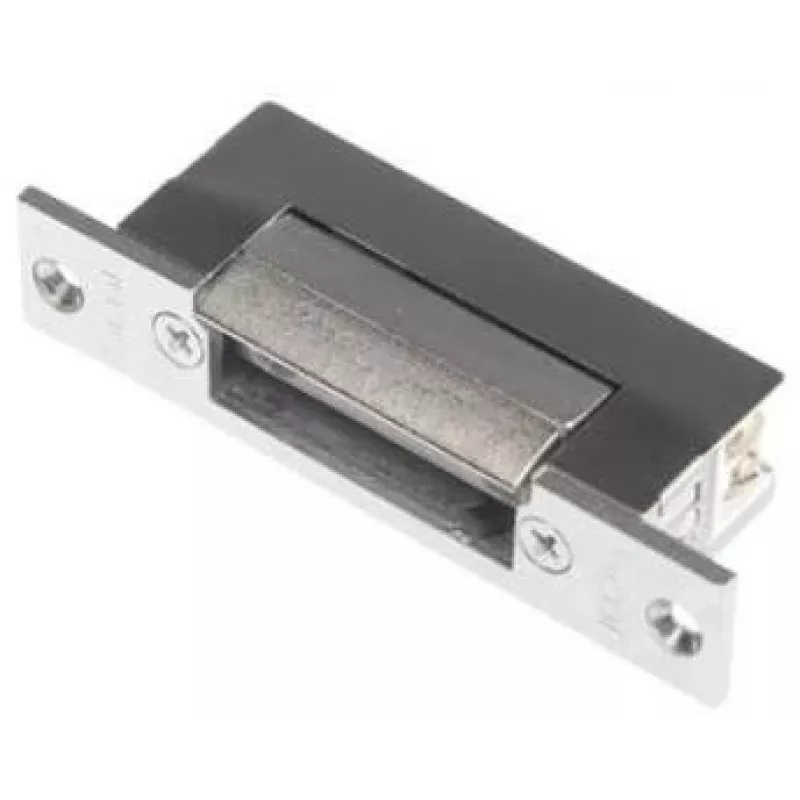

The SCOT ES-S12AC/DC-MB PROFI is a professional-grade symmetrical electric strike designed for access control systems. It features a memory (latch) function and mechanical blockade (passage function), making it ideal for high-security applications. Operating on 12V AC/DC, this fail-secure (normally open) strike delivers a holding force of 3000 N and is rated for 300,000 cycles. Its symmetrical design allows use on both left and right-hand doors, and the robust zinc alloy housing with stainless steel latch ensures durability in demanding environments.

Advantages

High holding force of 3000 N ensures secure door locking. Memory function retains latch position for convenience, while mechanical blockade allows passage mode when needed. Fail-secure operation provides safety in power loss. Symmetrical design simplifies installation on any door swing. Durable construction with 300,000 cycle rating guarantees long service life.

Suitable for

• Access control systems for doors and gates
• Intercom and entry systems
• Commercial and industrial security applications
• High-traffic areas requiring reliable locking

Key specifications

• Type: Symmetrical Electric Strike
• Operating Mode: Fail-secure (Normally Open)
• Special Functions: Memory (Latch) and Mechanical Blockade (Passage)
• Operating Voltage: 12V AC/DC
• Current Consumption: 280 mA (AC), 350 mA (DC)
• Holding Force: 3000 N
• Durability: 300,000 cycles
• Housing Material: Zinc Alloy (Zamak)
• Latch Material: Stainless Steel
• Operating Temperature: -20°C to +50°C
• Installation: Flush Mount

Recommendations

For optimal performance, pair with a compatible 12V AC/DC power supply and access control system. Ensure proper alignment during installation to maximize holding force and cycle life.
