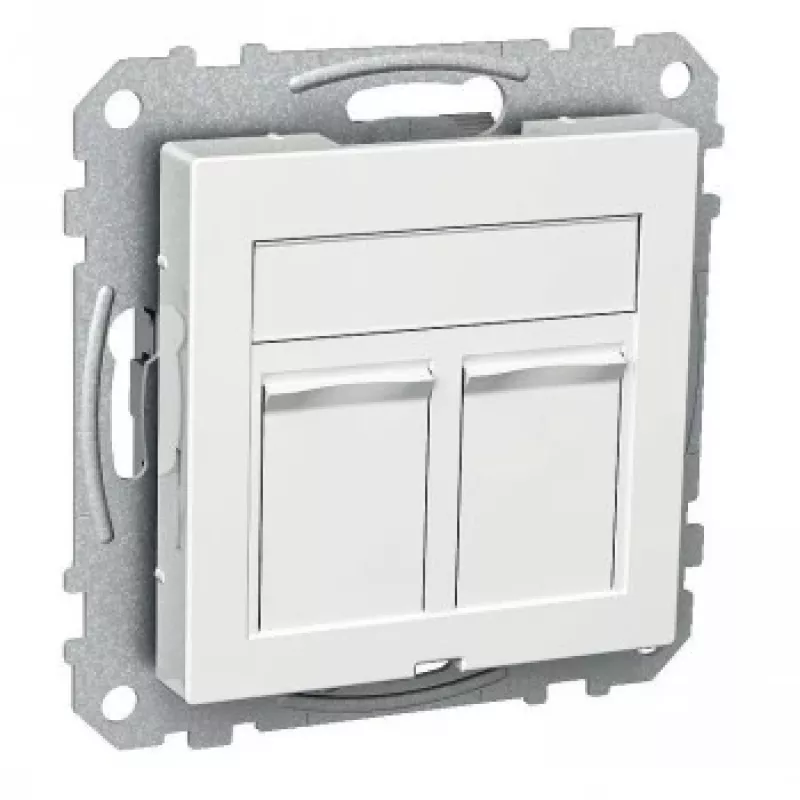

Schneider Electric Data Outlet Actassi S-One Cat6A STP RJ45 White

The Schneider Electric Data Outlet Actassi S-One is a high-performance, tool-less RJ45 data outlet designed for structured cabling in commercial and residential environments. Part of the Actassi S-One range, this flush-mount outlet supports Cat6A (Augmented Category 6) performance, ensuring reliable data transmission up to 10 Gbps. Its STP (Shielded Twisted Pair) construction minimizes electromagnetic interference, making it ideal for high-speed networks.

Advantages

Tool-less IDC termination simplifies installation, reducing time and labor costs. The integrated dust cover protects the port when not in use, maintaining signal integrity. Compliant with ISO/IEC 11801, TIA/EIA-568-C.2, and EN 50173 standards, it guarantees interoperability and future-proof performance.

Suitable for

• Data centers and server rooms requiring high-density cabling
• Office networks with high-bandwidth applications
• Smart home installations needing reliable Ethernet connectivity
• Industrial environments where shielding is critical

Key specifications

• Product Type: Data Outlet
• Range: Actassi S-One
• Number of Ports: 1
• Connector Type: RJ45
• Cable Category: Cat6A (Augmented Category 6)
• Shielding Type: STP (Shielded Twisted Pair)
• Mounting Type: Flush Mount
• Color: White (RAL 9003)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Termination Type: Tool-less IDC
• Wiring Standard: T568A/B
• Standard Compliance: ISO/IEC 11801, TIA/EIA-568-C.2, EN 50173
• Flammability Rating: UL94-V0
• Operating Temperature: -10 to 60 °C
• Humidity Range: 10-90% non-condensing
• Dust Protection: Integrated Dust Cover
• Compatibility: S-One Connectors
• Design: Straight Outlet

Recommendations

For optimal performance, pair with Schneider Electric Actassi S-One patch panels and connectors. Ensure proper grounding of the STP cabling system to maximize shielding effectiveness.
