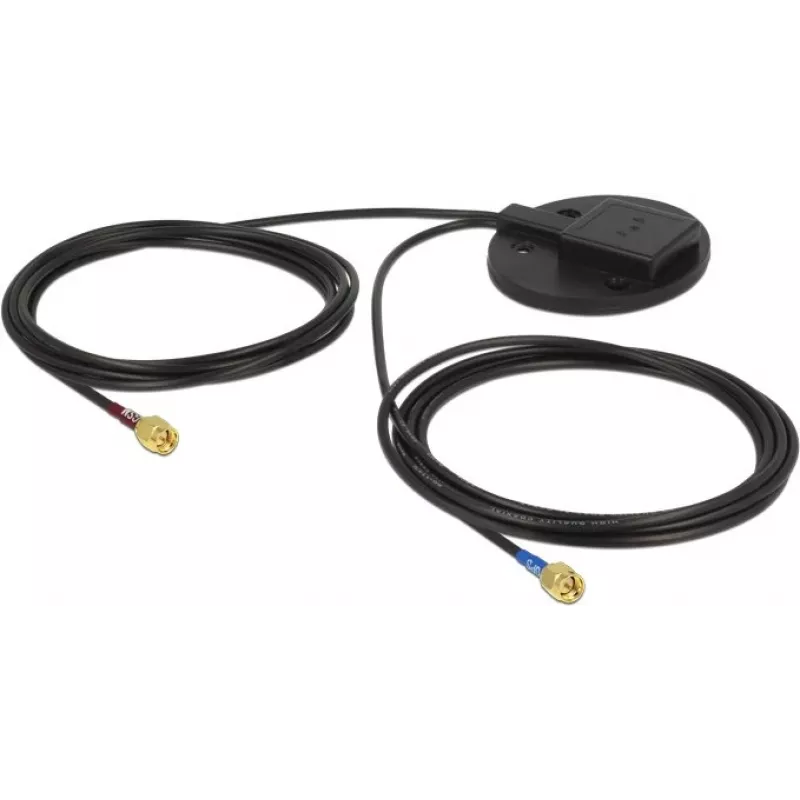

Satellite antenna Navilock 89489 Black

The Navilock 89489 Black satellite antenna is a compact multi-band antenna designed for reliable reception and transmission. It combines a GPS patch antenna for receiving GNSS/GPS signals with a physically separated PIFA antenna for GSM/UMTS/LTE transmit and receive, offering a maximum gain of 28 dBi and a VSWR of 1.5. The antenna measures 7.7 cm in diameter and 14 mm in height and is built for durable performance in mobile and fixed installations.

Advantages

This antenna provides high gain (up to 28 dBi) and low VSWR (1.5) for efficient signal reception. Its dual, physically separated transmitting and receiving units reduce interference between GNSS and cellular functions. The compact form factor (7.7 cm diameter, 14 mm height) enables installation in space-constrained environments while the robust construction ensures long-term reliability.

Suitable for

Key specifications

How to use

Mount the Navilock 89489 antenna on a suitable surface ensuring clear sky view for optimal GPS reception and minimal obstructions for cellular signals. Connect the antenna to the appropriate GNSS and cellular receivers using compatible cables and connectors. Position and orient the antenna per device manufacturer guidelines to achieve best signal strength and ensure secure mechanical fastening to prevent movement.

Recommendations

For best performance, install the antenna where it has an unobstructed view of the sky and away from strong local RF sources; follow grounding and cable routing practices recommended for your equipment to minimize signal loss and interference.
