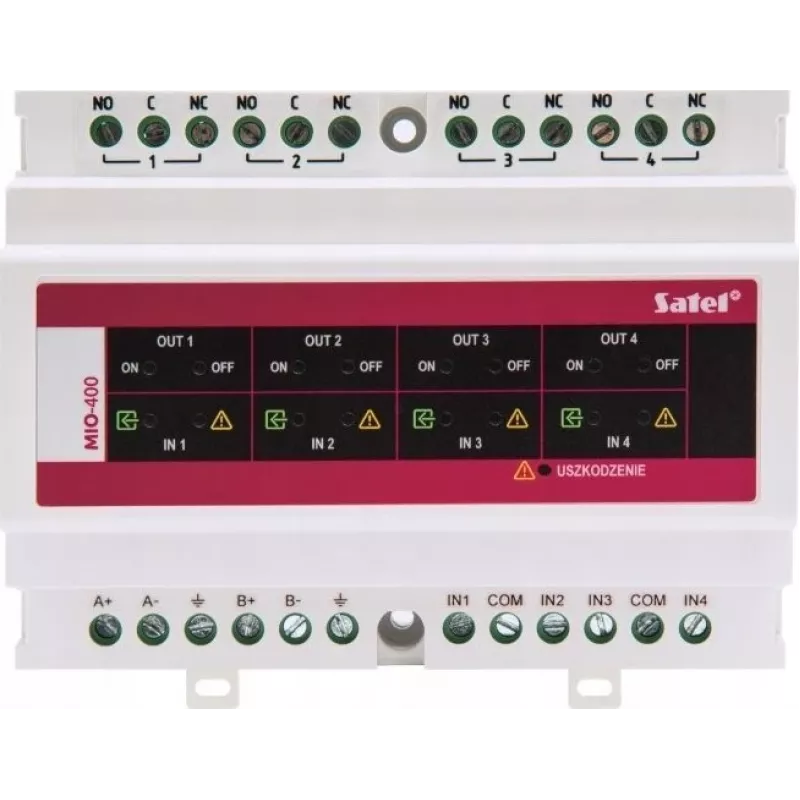

SATEL Conventional Input and Output Module (for Addressable Control Panel) MIO-400

The SATEL MIO-400 is a conventional input and output module designed for integration with SATEL addressable fire alarm control panels. It provides four supervised conventional inputs for connecting fire detectors and manual call points, along with two potential-free relay outputs for controlling external devices. The module is software-configurable via the control panel and supports surface or DIN rail mounting.

Advantages

Reliable monitoring of conventional detection zones within an addressable system; flexible relay outputs for auxiliary control; easy configuration without physical addressing; compact design for space-saving installation.

Suitable for

• Fire alarm systems requiring expansion with conventional detection zones
• Integration of conventional detectors (smoke, heat, manual call points) into SATEL addressable panels
• Control of external equipment such as door releases, dampers, or signaling devices

Key specifications

• Module Type: Conventional Input/Output Module
• Number of Conventional Inputs: 4
• Input Line Supervision: Yes (EOL resistor monitoring)
• Number of Relay Outputs: 2
• Relay Output Type: Potential-free (dry contact)
• Relay Contact Rating: 30 V DC / 1 A
• Power Supply: From addressable loop
• Quiescent Current Consumption: 0.5 mA
• Alarm Current Consumption: 1.5 mA (with relays active)
• Operating Temperature Range: -10°C to +55°C
• Relative Humidity: 25% to 93% (non-condensing)
• Enclosure Material: Plastic
• Mounting: Surface mount or DIN rail
• Standards Compliance: EN 54-18
• Addressing Method: Software configurable via control panel

Recommendations

Use with SATEL addressable panels such as CSP-1004, CSP-1008, or CSP-1016. Ensure proper EOL resistor values as specified by the panel manufacturer. For outdoor installations, protect from direct moisture exposure.
