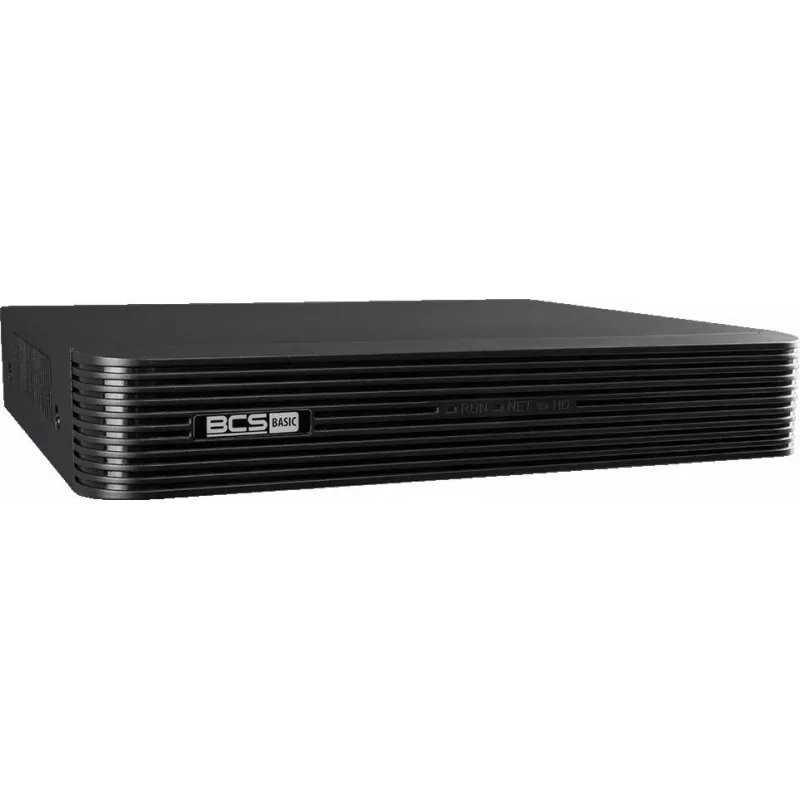

BCS BASIC BCS-B-NVR1601 16-Channel 4K NVR Recorder

The BCS BASIC BCS-B-NVR1601 is a high-performance 16-channel network video recorder (NVR) designed for reliable 24/7 surveillance. Supporting up to 8MP (4K) resolution recording, this NVR delivers crisp and detailed video footage. With H.265+ compression, it optimizes storage and bandwidth without compromising quality. Ideal for small to medium-sized security systems, it offers flexible recording modes and remote access via the BCS Manager mobile app.

Advantages

• 16-channel recording with 8MP (4K) resolution support
• H.265+/H.265/H.264+/H.264 compression for efficient storage
• Single SATA HDD bay supporting up to 8TB for extensive recording
• Simultaneous HDMI and VGA outputs for flexible monitoring
• Remote access via BCS Manager app for iOS and Android
• Embedded Linux OS for stable and secure operation

Suitable for

• Retail stores and shops requiring multi-camera surveillance
• Office buildings and small business security systems
• Warehouses and storage facilities
• Residential properties with multiple IP cameras
• Educational institutions and public facilities

Key specifications

• Brand: BCS
• Model: BCS-B-NVR1601(2.0)
• Video Input Channels: 16
• Max Recording Resolution: 8MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• HDD Bays: 1 SATA (up to 8TB)
• Video Outputs: 1x HDMI (up to 4K), 1x VGA
• Audio: 1x RCA In, 1x RCA Out
• Network: 1x RJ-45 10/100 Mbps Ethernet
• USB Ports: 2x USB 2.0
• Power Supply: DC12V/2A
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• Simultaneous Playback: 16ch@720P / 4ch@1080P / 1ch@8MP
• Operating System: Embedded Linux
• Mobile App: BCS Manager
• Recording Modes: Manual, Schedule, Motion Detection, Alarm

Recommendations

For optimal performance, pair this NVR with BCS IP cameras and use high-quality CAT5e or CAT6 Ethernet cables. Ensure the HDD is compatible and properly installed. Regular firmware updates are recommended to maintain security and functionality.
