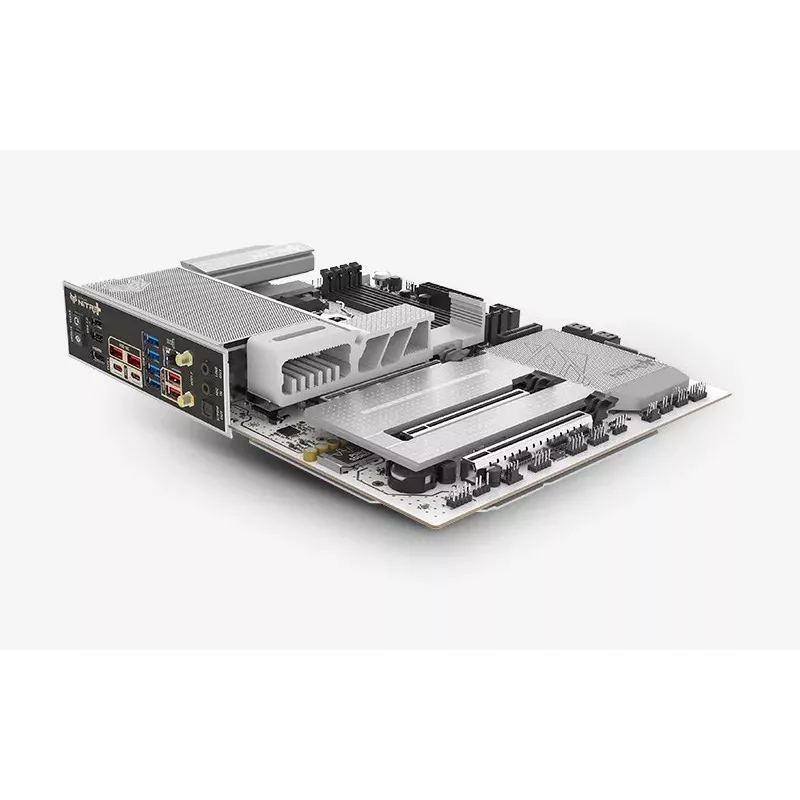

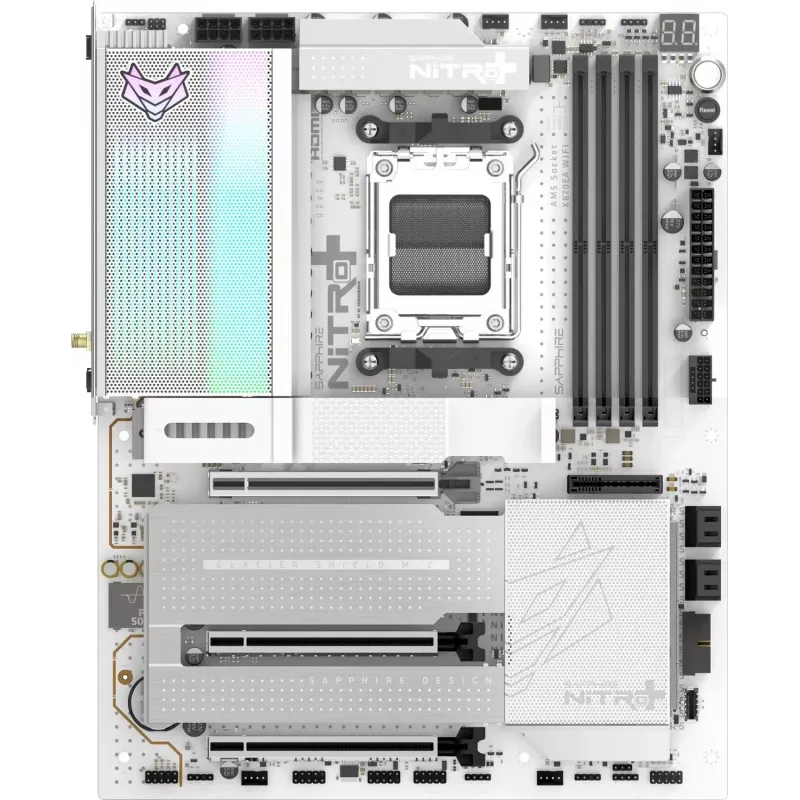

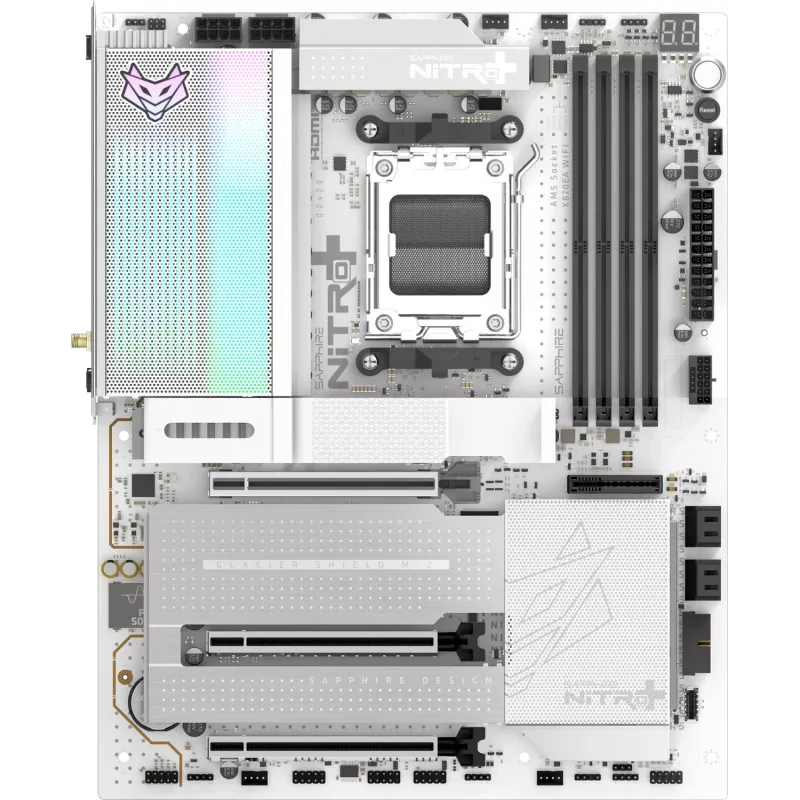

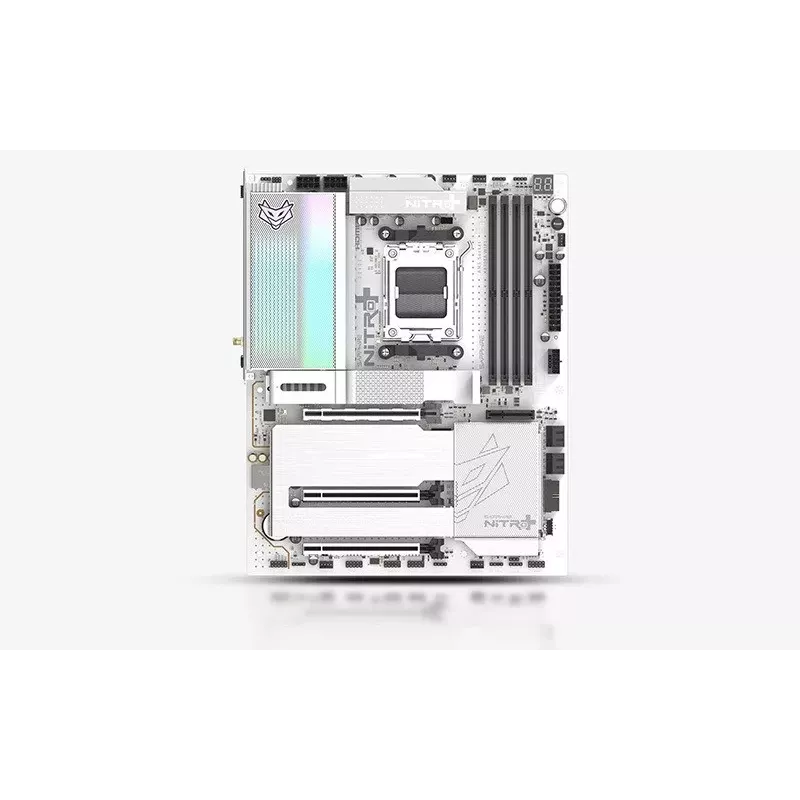

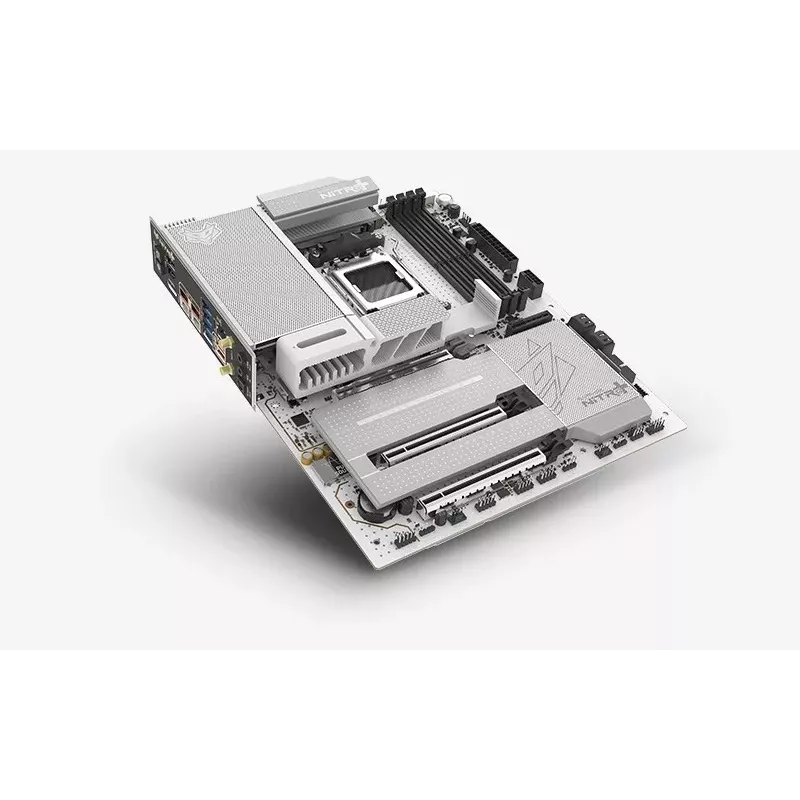

SAPPHIRE NITRO+ X870EA PHANTOMLINK P.E Mainboard, AMD X870E, Socket AM5, DDR5, Wi-Fi 7, White/Black

The SAPPHIRE NITRO+ X870EA PHANTOMLINK P.E is a premium ATX motherboard designed for AMD Ryzen 7000/8000/9000 series processors on the AM5 socket. Featuring the AMD X870E chipset, it supports DDR5 memory up to 7600+ MHz and offers cutting-edge connectivity including PCIe 5.0, Wi-Fi 7, and Bluetooth 5.3. Its distinctive white and black design, enhanced VRM, and comprehensive cooling make it ideal for high-performance builds.

Advantages

Unlock the full potential of your AMD Ryzen processor with robust power delivery and advanced thermal management. The NITRO+ series delivers exceptional stability for gaming, content creation, and overclocking. With Wi-Fi 7 and 2.5 Gigabit Ethernet, enjoy ultra-fast networking. The sleek white/black aesthetic stands out in any build.

Suitable for

• Enthusiast gamers seeking top-tier performance
• Content creators requiring high-speed storage and memory
• PC builders wanting a distinctive white/black theme
• Overclockers needing robust VRM and cooling

Key specifications

• Chipset: AMD X870E
• CPU Socket: AMD AM5
• Memory: 4 x DIMM, DDR5, up to 192GB, 7600+ MHz (OC)
• PCIe: 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4
• Storage: 1 x M.2 PCIe 5.0, 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s
• Networking: 2.5 Gigabit Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.3
• Audio: Realtek ALC4080, 7.1-channel
• Form Factor: ATX
• Colour: White/Black

Recommendations

Pair with an AMD Ryzen 9000 series processor and high-speed DDR5 RAM for a future-proof system. Ensure your case supports ATX and has adequate airflow for optimal VRM cooling.
