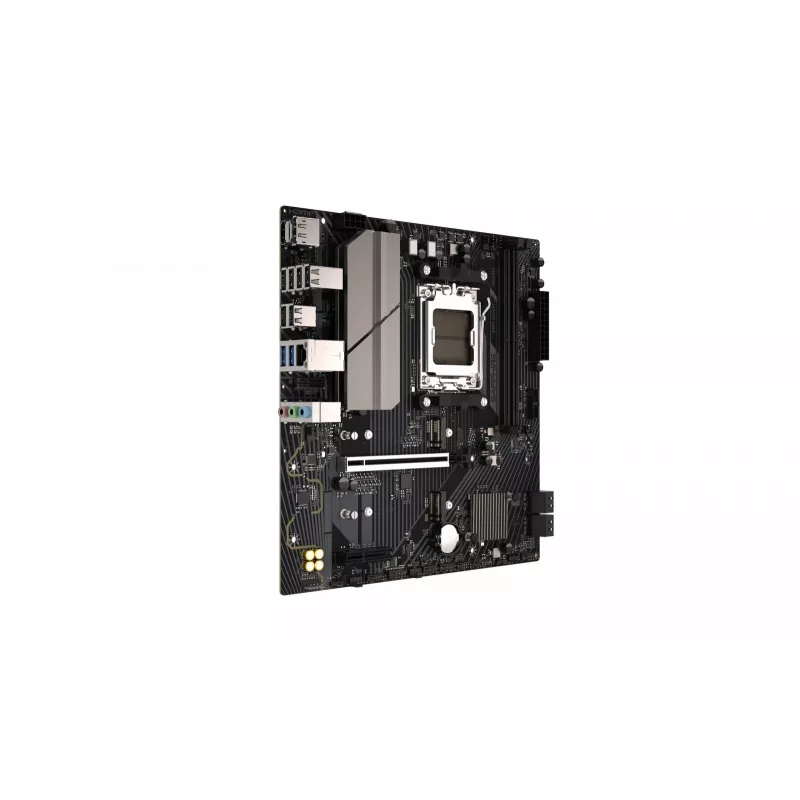

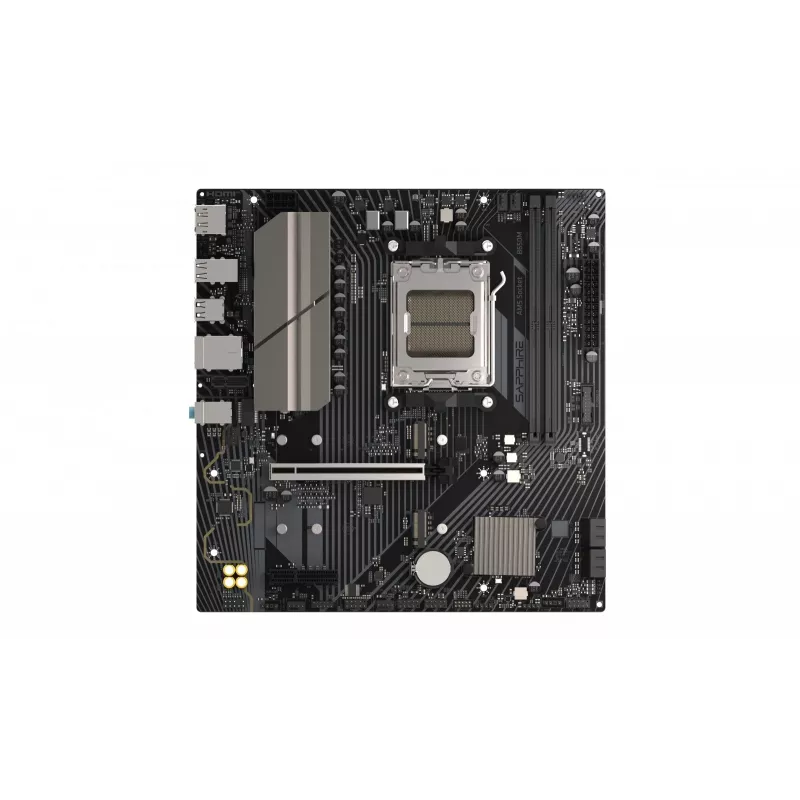

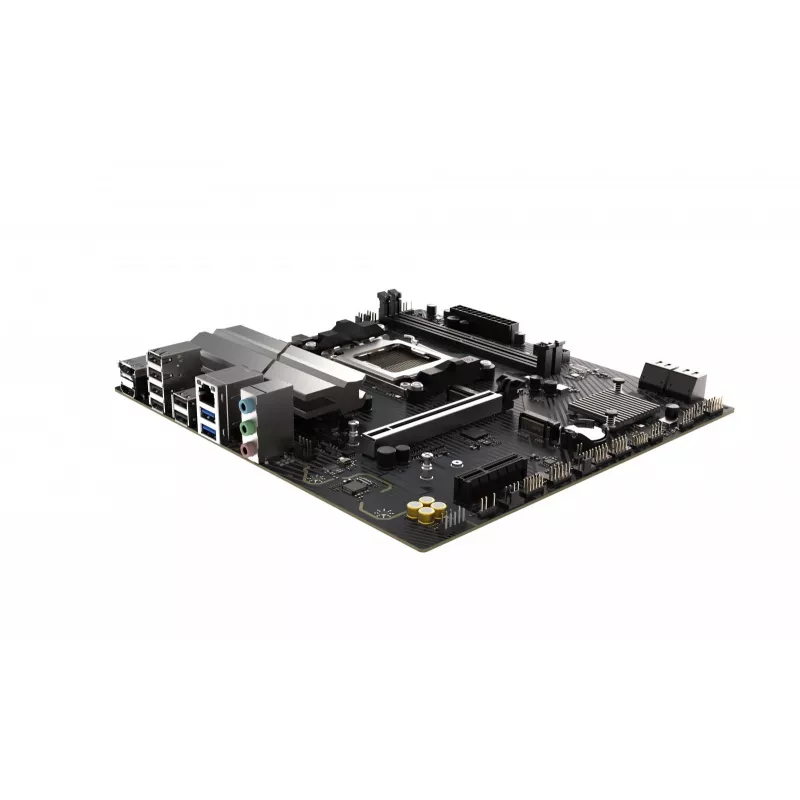

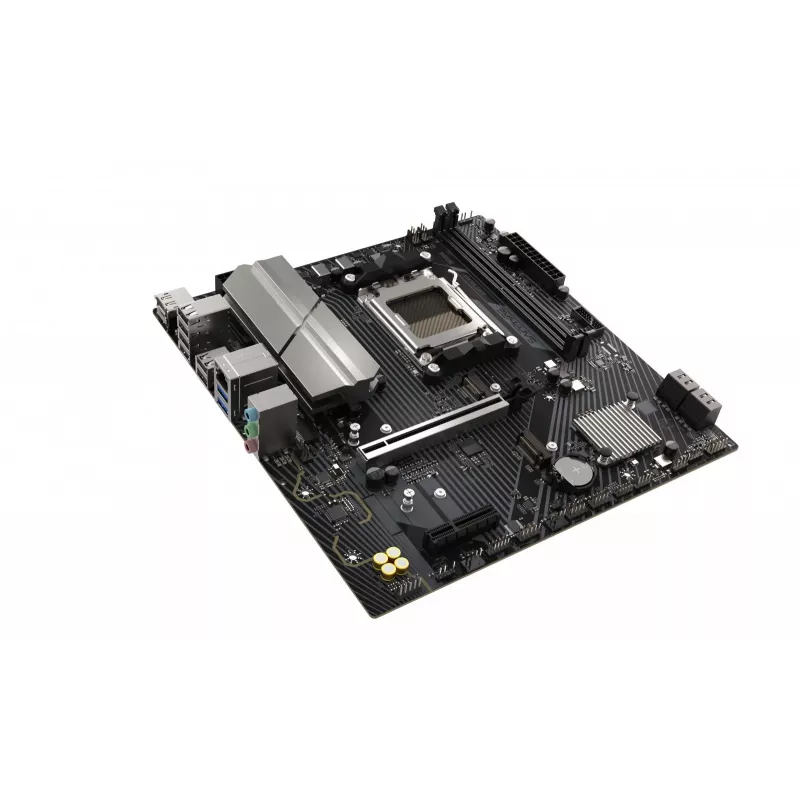

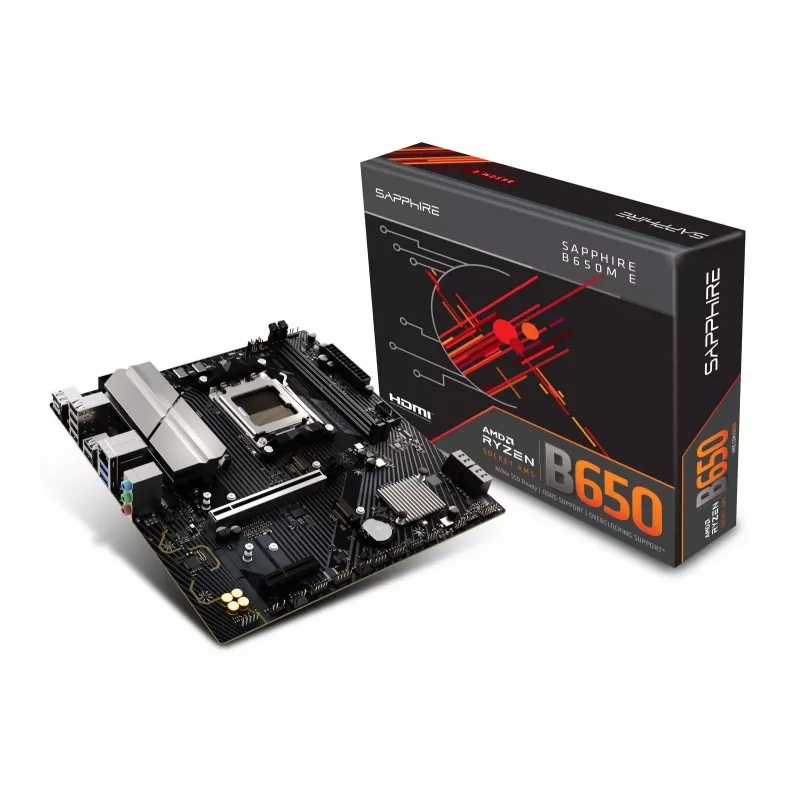

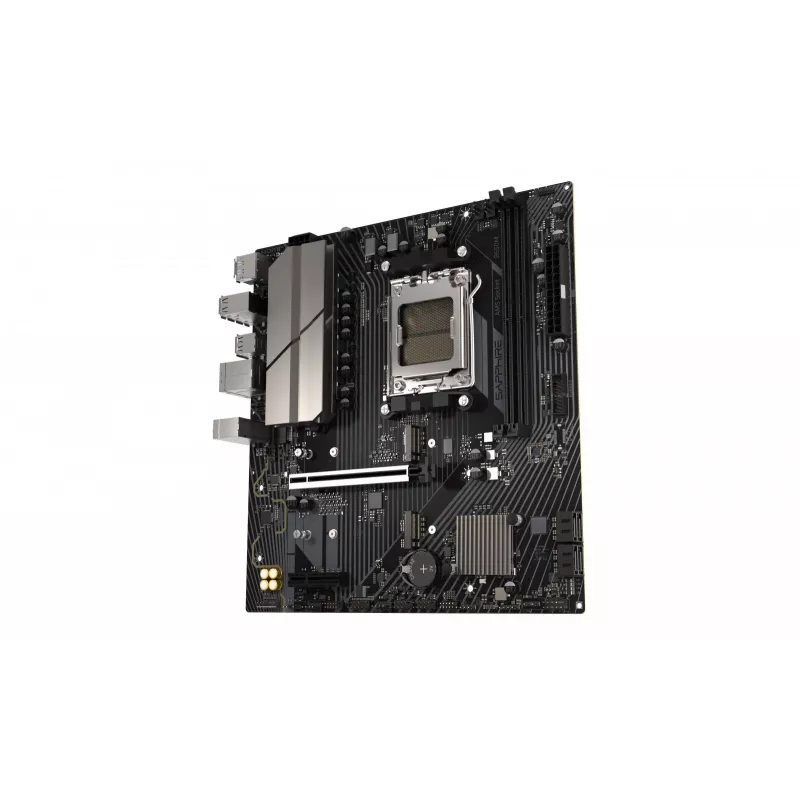

Motherboard Sapphire B650M-E (AMD B650) micro ATX, Socket AM5, DDR5, 2x DIMM, 96GB, 2x M.2 (PCIe5/4), 4x SATA III, 2.5Gb LAN

The Sapphire B650M-E is a micro ATX motherboard with an AMD B650 chipset and Socket AM5, compatible with AMD Ryzen 7000, 8000, and 9000 series processors. It supports DDR5 memory across two DIMM slots for up to 96 GB, and provides PCIe 4.0 x16 graphics support plus PCIe 5.0 M.2 storage compatibility. The board includes SATA III ports for additional drives, USB Type-A connectivity and a 2.5 Gigabit Ethernet port for wired networking.

Advantages

This motherboard offers stable power delivery with a 6+2+1 phase CPU power design and 60A per phase, plus enhanced cooling for VRM, M.2, and PCH areas. Dual-channel DDR5 memory support with up to 7600 MHz overclocking potential and support for PCIe 4.0 and PCIe 5.0 storage provide a balance of performance and future-proofing. Integrated SAPPHIRE CORE BIOS and onboard 2.5 Gb Ethernet ensure reliable system management and fast network connectivity.

Suitable for

• Compact gaming builds with AM5 Ryzen CPUs
• Productivity and office PCs requiring fast wired networking
• Systems that use PCIe 5.0 NVMe drives for high-speed storage

Key specifications

• Form factor: Micro ATX
• Chipset: AMD B650
• Processor socket: Socket AM5 (AMD Ryzen 7000/8000/9000 Series)
• Memory: DDR5, 2 DIMM slots, up to 96 GB, dual-channel, up to 7600 MHz (OC)
• Expansion: PCIe 4.0 x16
• Storage interfaces: PCIe 5.0 M.2 support, PCIe 4.0, SATA III; up to 6 storage drives supported
• Audio: Realtek ALC897, 5.1 channels
• Networking: 2.5 Gigabit Ethernet
• Other: Clear CMOS jumper, SAPPHIRE CORE BIOS

How to use

Install the CPU into the AM5 socket and fit the cooler according to the cooler manufacturer's instructions. Insert DDR5 modules into the two DIMM slots to enable dual-channel operation and install the graphics card into the PCIe 4.0 x16 slot if required. Mount M.2 NVMe and SATA drives in their respective connectors, connect power and front-panel cables, and complete the initial setup by entering the SAPPHIRE CORE BIOS to configure boot order, memory settings and storage options.

Recommendations

For stable operation and best performance, use a compatible AM5 CPU cooler, install memory in recommended slots for dual-channel mode, keep BIOS updated to the latest SAPPHIRE CORE BIOS version, and use a quality power supply that meets system power requirements.
