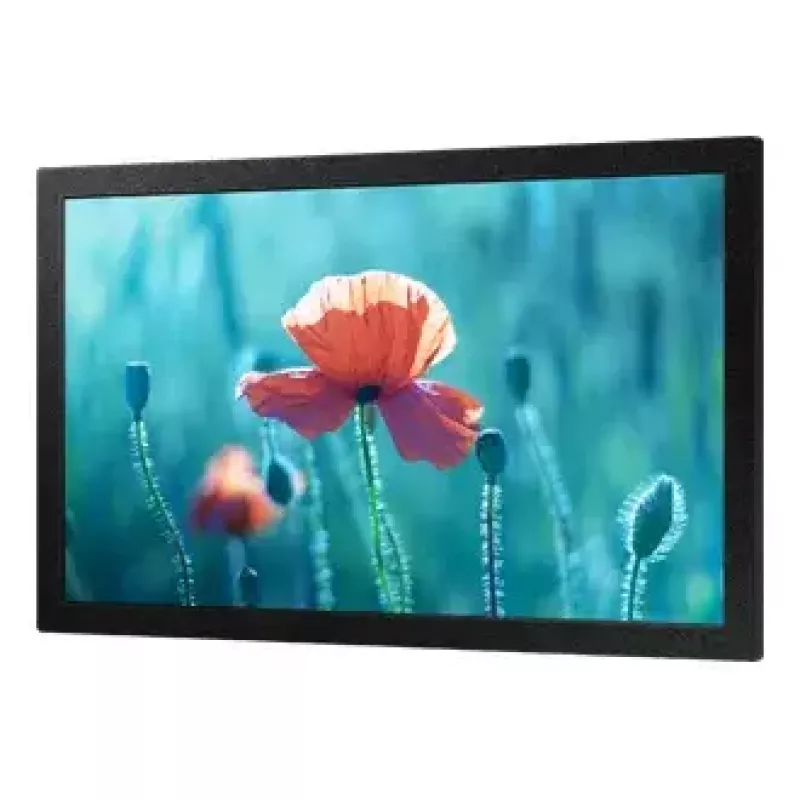

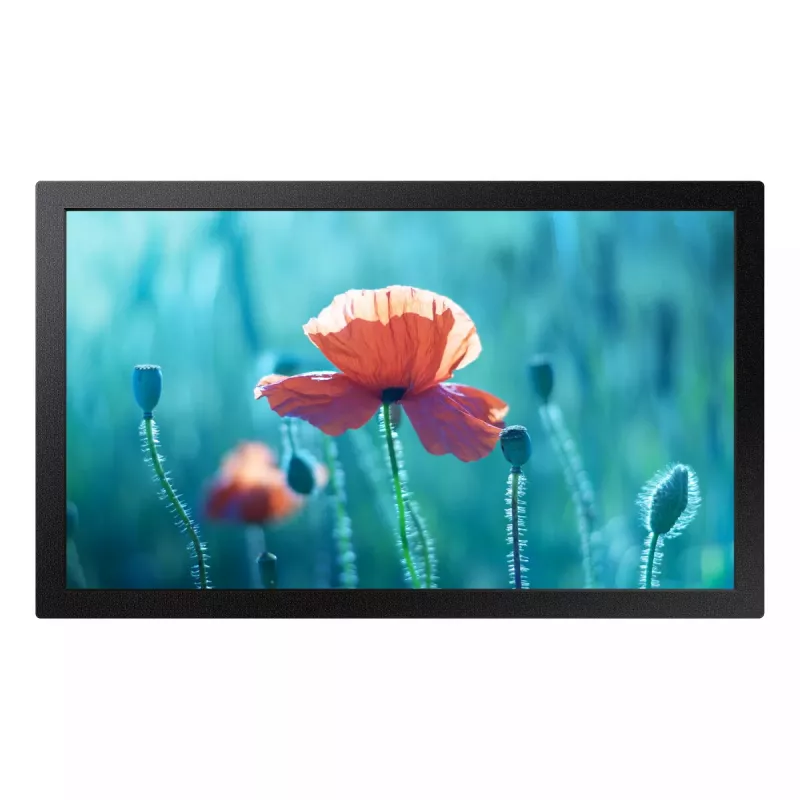

Samsung QB13R-M Digital signage flat panel 33 cm (13 inch) LCD Wi-Fi 500 cd/m² Full HD Black Built-in processor Tizen 4.0 16/7

The Samsung QB13R-M is a 13" digital signage flat panel with LCD technology and Full HD 1920 x 1080 resolution. Designed for commercial environments, the panel provides 500 cd/m² brightness, an ADS panel for wide viewing angles and consistent colour reproduction, and a compact flat form factor in black. Built-in Tizen 4.0 enables local content playback and networked management, while Wi‑Fi connectivity simplifies integration into existing signage systems. The display supports 16/7 operation for extended daily use and includes VESA mounting for flexible installation.

Advantages

The QB13R-M combines a high-resolution Full HD panel with a compact 13" form factor, offering clear image detail and readable text at close viewing distances. With an ADS panel and a typical contrast ratio of 800:1, the display delivers stable colours and viewing uniformity across a range of angles. A brightness level of 500 cd/m² improves visibility in well-lit interiors. Integrated Tizen 4.0 and Wi‑Fi reduce the need for external media players and allow straightforward content updates and scheduling. The flat black housing and VESA compatibility make mounting and integration into kiosks, shelves or wall displays simple and unobtrusive.

Suitable for

• Retail shelf-edge and product information displays
• Point-of-sale promotions and menu boards in small spaces
• Interactive kiosk integration and information terminals
• Office signage, room scheduling panels and narrow-corridor displays

Key specifications

• Display diagonal: 13 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: ADS (wide viewing angles)
• Display technology: LCD
• Brightness: 500 cd/m²
• Pixel pitch: 0.153 x 0.153 mm
• Response time: 30 ms
• Contrast ratio (typical): 800:1
• Screen shape: Flat
• VESA mounting: supported
• Product colour: Black
• Operating mode: 16/7

How to use

Mount the panel using a compatible VESA bracket or place it in a dedicated enclosure. Connect power and configure network settings to enable Wi‑Fi connectivity. Use the built-in Tizen 4.0 platform to upload media files, schedule playlists and configure playback settings through the display’s management interface or compatible content management software. Position the display at an appropriate viewing distance for 13" screens and adjust brightness and colour settings to match ambient lighting conditions.

Recommendations

For reliable operation, place the QB13R-M in indoor environments with controlled temperature and avoid direct sunlight on the screen. Use the integrated scheduling features to limit continuous playback intensity when possible, and ensure regular firmware updates via the network to maintain security and compatibility with content management tools.
