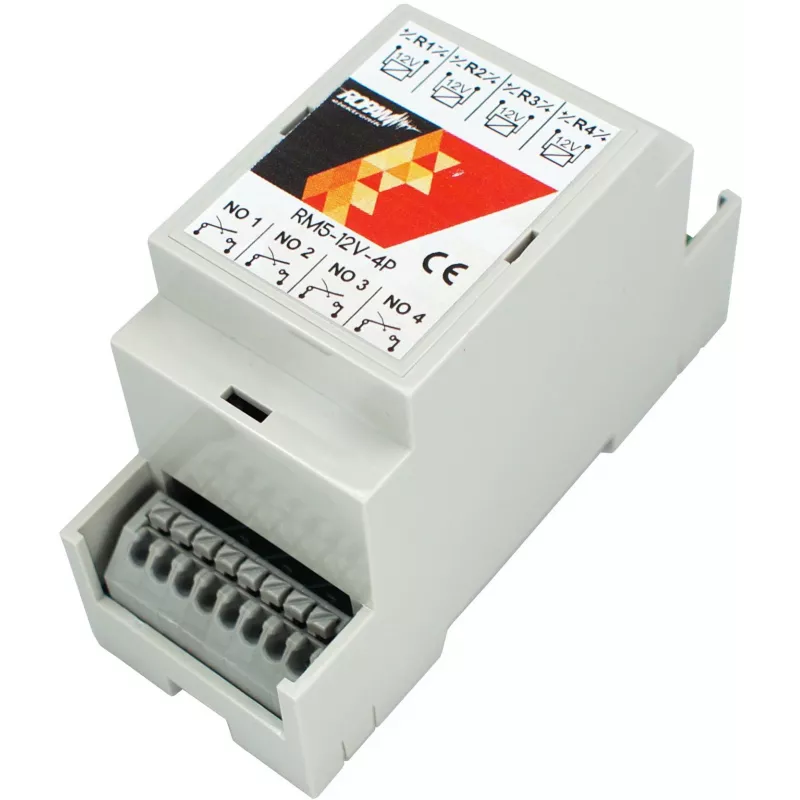

ROPAM RM5-12V-4P 4-Channel 12V DC SPDT Relay Module with LED Indicators

The ROPAM RM5-12V-4P is a high-quality 4-channel relay module designed for reliable switching in industrial and automation applications. Each relay features SPDT (Single Pole Double Throw) contacts, capable of switching up to 5A resistive load at 250V AC or 30V DC. The module operates on a 12V DC coil voltage and includes four LED indicators for easy status monitoring. With screw terminals and DIN rail or screw mount options, it offers flexible installation. The robust ABS housing ensures durability, while the AgSnO2 contacts provide excellent performance and long electrical life.

Advantages

Compact 4-channel design saves space in control panels. LED indicators provide immediate visual feedback on relay status. High dielectric strength (4000V AC coil to contact) ensures safety and reliability. Suitable for a wide operating temperature range (-25°C to +55°C).

Suitable for

• Industrial automation and control systems
• PLC output expansion
• Signal switching and isolation
• Home automation projects

Key specifications

• Number of Channels: 4
• Relay Type: SPDT
• Coil Voltage: 12V DC
• Max Switching Current: 5A (resistive)
• Max Switching Voltage: 250V AC / 30V DC
• Max Switching Power: 1250VA AC / 150W DC
• Contact Material: AgSnO2
• Mounting: DIN Rail / Screw Mount
• Terminals: Screw Terminals
• LED Indicators: 4x (one per relay)
• Operating Temperature: -25°C to +55°C
• Coil Power Consumption: ~0.45W per relay
• Insulation Resistance: >100 MΩ at 500V DC
• Dielectric Strength (Coil to Contact): 4000V AC (1 min)
• Dielectric Strength (Open Contacts): 1000V AC (1 min)
• Electrical Life: 100,000 operations (at rated load)
• Mechanical Life: 10,000,000 operations
• Housing Material: ABS Plastic

Recommendations

For optimal performance, ensure the coil voltage is stable at 12V DC. Use appropriate wire gauges for screw terminals. This module is ideal for switching low-power AC or DC loads; for inductive loads, consider adding snubber circuits.
