ROLINE USB 3.2 Gen 1 Hub 4 Ports with Repeater black 10 m

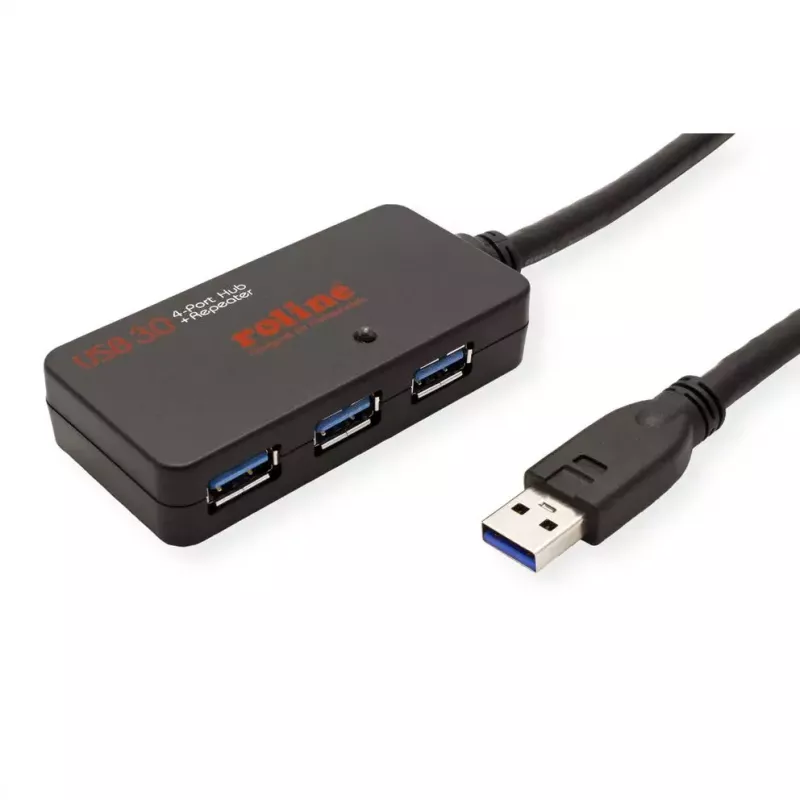

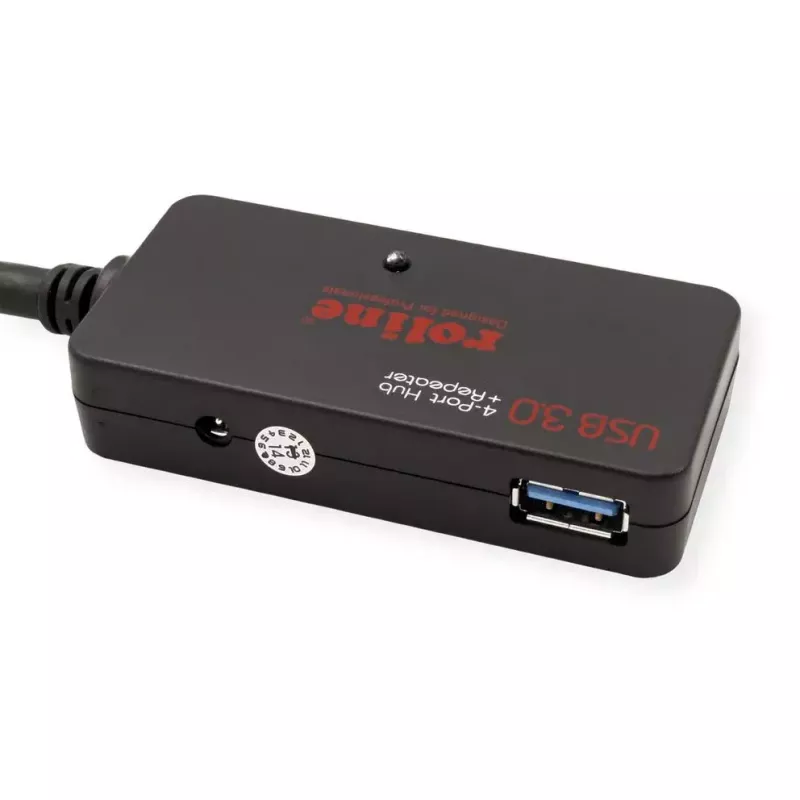

The ROLINE USB 3.2 Gen 1 Hub 4 Ports with Repeater (10 m) is a compact USB hub that extends the distance between a computer and USB peripherals. It provides four USB 3.2 Gen 1 Type-A ports and uses an active repeater cable to allow a connection length of up to 10 m. Power is normally supplied from the PC via the USB interface, and an optional external 5 V DC, 3.5 A power adapter can be connected when additional power is required. The hub is finished in black and has a small footprint (40 x 81 x 17 mm).

Advantages

This hub supports USB 3.2 Gen 1 data rates (up to 5000 Mbit/s) on all downstream ports and includes an active repeater cable to maintain signal integrity over a 10 m distance. It accepts power from the host USB port but also provides the option to connect an external 5 V DC, 3.5 A power supply for power-hungry devices. The compact and lightweight design makes it easy to place near devices that need to be connected further away from the PC.

Suitable for

• Connecting printers, scanners or external drives located further from the PC
• Expanding USB ports for workstations with limited local ports
• Temporary setups where devices must be placed at a distance (e.g., office desks, meeting rooms)

Key specifications

• Brand: ROLINE
• Model: 12.04.1098
• Interface (host): USB 3.2 Gen 1 (Type-A)
• Hub interfaces: 4 × USB 3.2 Gen 1 (Type-A)
• Data transfer rate: up to 5000 Mbit/s
• Cable/repeater length: 10 m (active repeater cable)

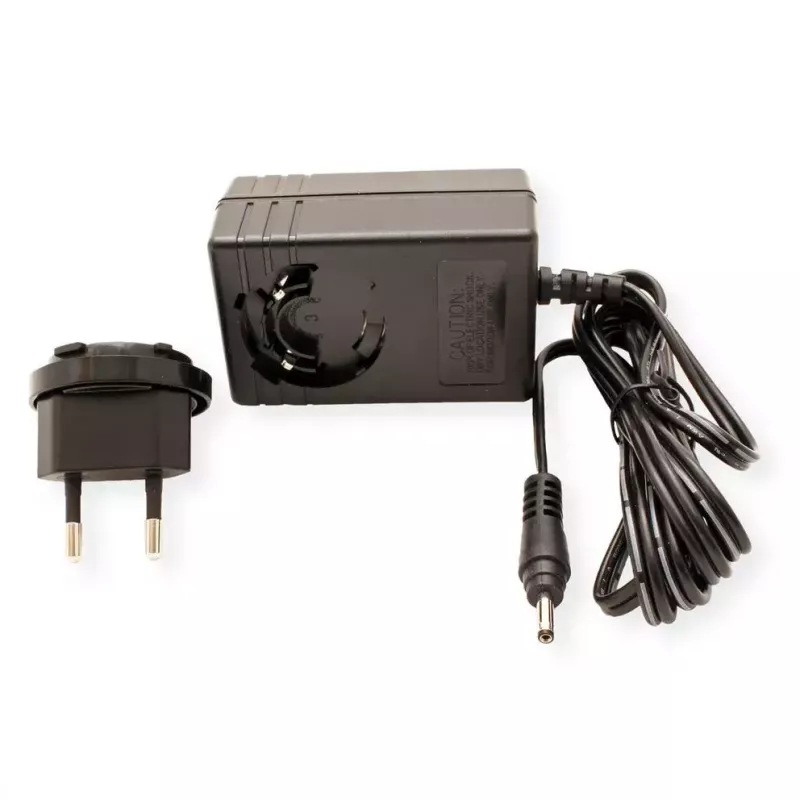

• Power: bus-powered via USB; optional external 5 V DC, 3.5 A adapter
• Colour: Black
• Dimensions: 40 × 81 × 17 mm
• EAN: 7630049619968
• Weight: 0.761 kg

How to use

Connect the hub’s host USB Type-A plug to a computer USB 3.2 Gen 1 port using the attached 10 m repeater cable. Plug USB peripherals into the hub’s four Type-A ports. If connected devices require more power than the host provides, connect an optional 5 V DC, 3.5 A power adapter to the hub’s power input. The hub is plug-and-play on most operating systems and does not require additional drivers for basic USB storage and input devices.

Recommendations

Place the hub near the cluster of devices you want to connect at distance and avoid sharp bends in the 10 m repeater cable to preserve signal quality. Use the optional external power adapter when connecting multiple high-power devices (e.g., external hard drives, printers) to ensure stable operation.
