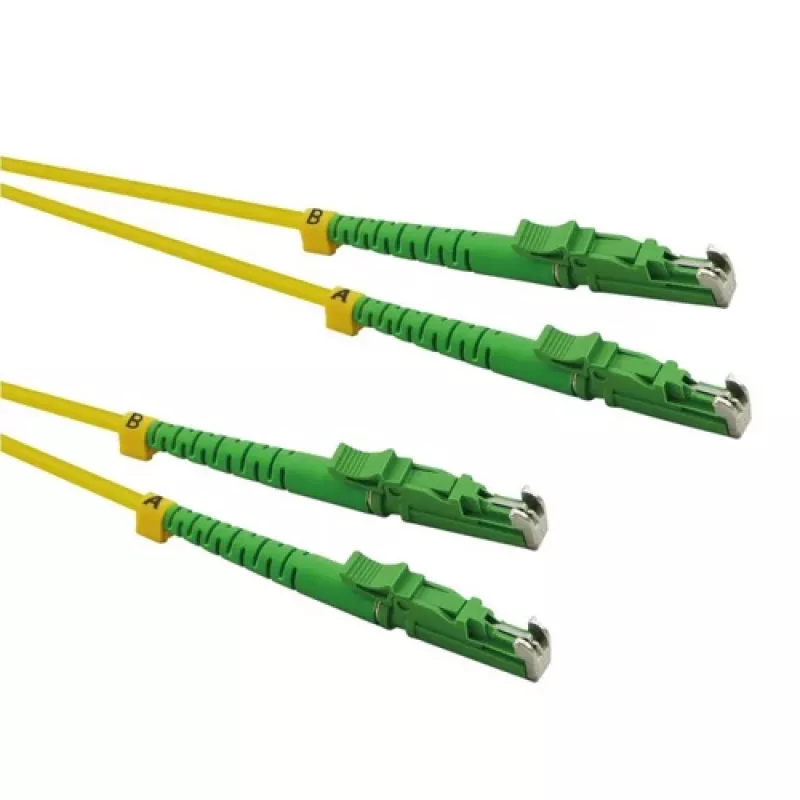

ROLINE Patch Cable LSH/APC Single-Mode OS2 1m Yellow

The ROLINE Patch Cable LSH/APC Single-Mode (M) is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. Featuring LSH/APC (E2000/APC) connectors on both ends, this simplex cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, FTTH, and LAN applications.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.25 dB and return loss ≥60 dB. The APC polish minimizes back reflection, while the LSZH jacket provides safety in confined spaces. Single-mode OS2 fiber supports long-distance transmission with minimal attenuation.

Suitable for

• Data center patching
• Telecommunications networks
• FTTH installations
• Local area networks (LAN)

Key specifications

• Connector Type: LSH/APC (E2000/APC) to LSH/APC (E2000/APC)
• Fiber Mode: Single-Mode OS2
• Fiber Diameter: 9/125 µm
• Cable Length: 1.0 m
• Cable Construction: Simplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.25 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Ferrule Material: Zirconia Ceramic
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid bending beyond the minimum bend radius.
