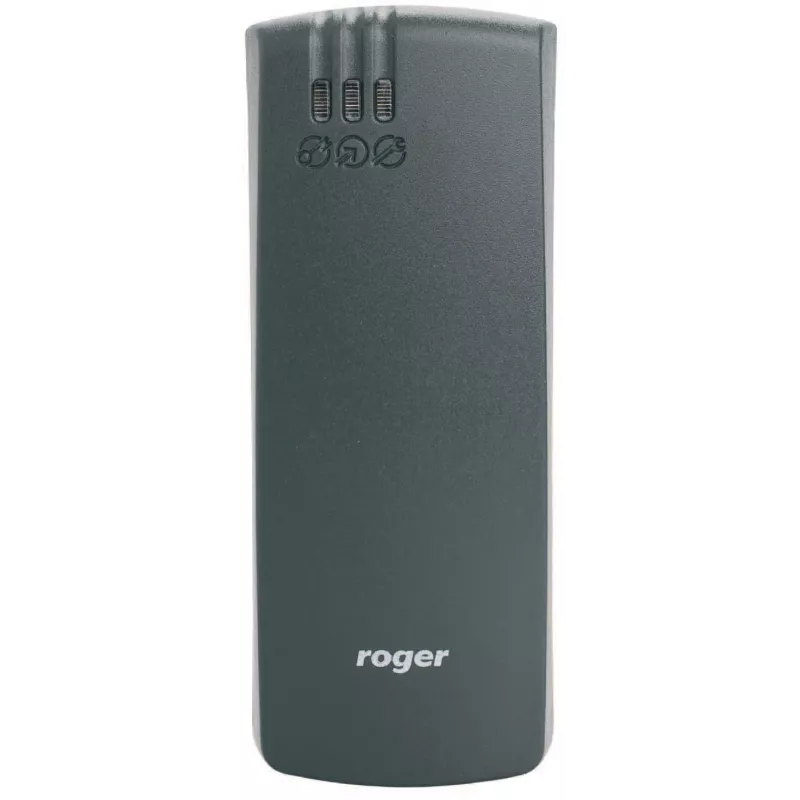

ROGER PRT62LT Proximity Reader EM 125 kHz & MIFARE 13.56 MHz RS485/Wiegand IP65

The ROGER PRT62LT is a versatile proximity reader designed for access control systems. It supports both EM 125 kHz and MIFARE 13.56 MHz technologies, making it compatible with a wide range of transponders including Unique, HITAG, Q5, Classic, DESFire, Plus, Ultralight, and NFC. With an IP65 rating and robust polycarbonate housing, it is suitable for indoor and outdoor use. The reader communicates via RS485 (RACS CLK Protocol) or Wiegand interface and features a two-color LED and buzzer for visual and audio feedback.

Advantages

Dual-frequency support ensures compatibility with existing and future credentials. The IP65 rating provides protection against dust and water, ensuring reliable operation in harsh environments. Surface mount design simplifies installation. The reader can operate as a terminal in RACS 5 system or standalone, offering flexibility for various applications.

Suitable for

• Access control systems for commercial buildings
• Office entrances and restricted areas
• Industrial facilities requiring durable readers
• Integration with RACS 5 or Wiegand-based systems

Key specifications

• Reading Technology: EM 125 kHz & MIFARE 13.56 MHz
• Communication Interface: RS485 (RACS CLK Protocol), Wiegand
• Power Supply: 10-15V DC
• Max Current Consumption: 100 mA
• Operating Temperature: -25°C to +55°C
• IP Rating: IP65
• Housing Material: Polycarbonate
• Max EM Reading Range: 10 cm
• Max MIFARE Reading Range: 5 cm
• Output Type: 2 x Open Collector (30V/1A)
• Input Type: 2 x NO/NC
• Max Users (Standalone): 16,000
• Max Events (Standalone): 32,000

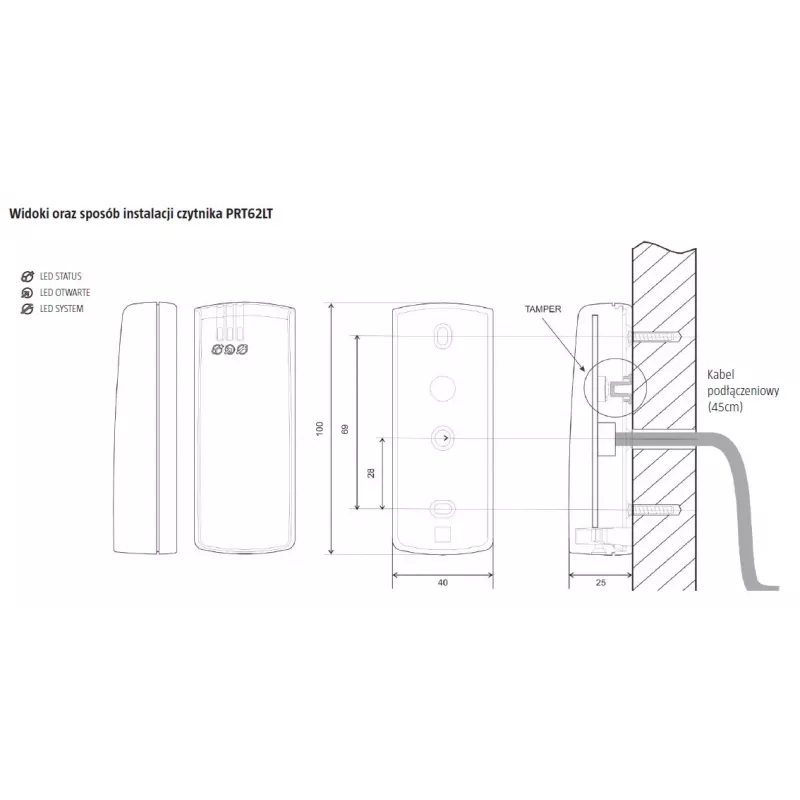

• Mounting Type: Surface Mount

Recommendations

For optimal performance, use with ROGER RACS 5 controllers. Ensure power supply is within 10-15V DC. The reader is not PoE compatible; use separate power.
