ROGER PRT12EM-G Proximity Reader 125 kHz EM4100 Wiegand/Dallas IP67 Grey

The ROGER PRT12EM-G is a robust proximity reader designed for access control systems. It operates at 125 kHz and supports EM4100, EM4102, and TK4100 compatible transponders. With a reading range of up to 10 cm, it provides reliable identification for secure entry. The reader features a Wiegand 26-66 bit and Dallas (DS1990A emulation) output interface, making it compatible with a wide range of controllers. Its IP67 rating ensures protection against dust and water, suitable for outdoor and harsh environments.

Advantages

The PRT12EM-G offers high durability with an ABS plastic housing and an optical tamper switch for added security. The two-color LED and buzzer provide clear visual and audible feedback. Its surface mount design and pre-wired 0.5 m cable simplify installation. The reader operates on a 10-15V DC power supply with low current consumption (max 50 mA), making it energy-efficient.

Suitable for

• Access control systems in commercial buildings
• Industrial facilities requiring robust outdoor readers
• Integration with third-party controllers supporting Wiegand or Dallas protocols
• Secure entry points where tamper detection is critical

Key specifications

• Reading Technology: EM 125 kHz
• Supported Transponders: EM4100, EM4102, TK4100 compatible
• Reading Range: Up to 10 cm (depending on transponder)
• Output Interface: Wiegand 26-66 bit, Dallas (DS1990A emulation)
• Power Supply: 10-15V DC
• Current Consumption: Max. 50 mA
• Operating Frequency: 125 kHz
• Indicators: Two-color LED (red/green), Buzzer
• Ingress Protection: IP67
• Operating Temperature: -25°C to +60°C
• Housing Material: ABS Plastic

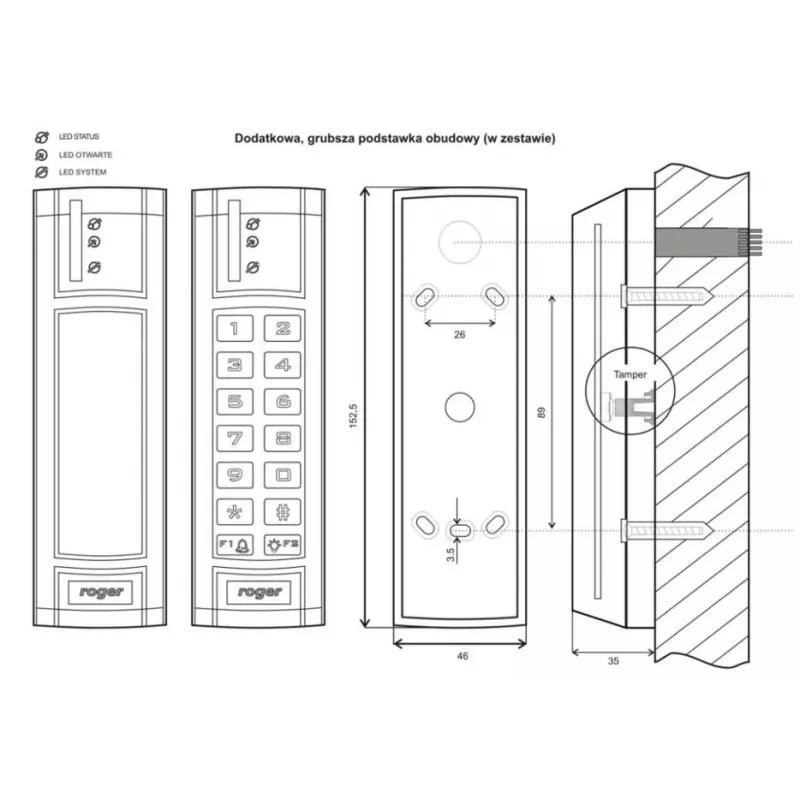

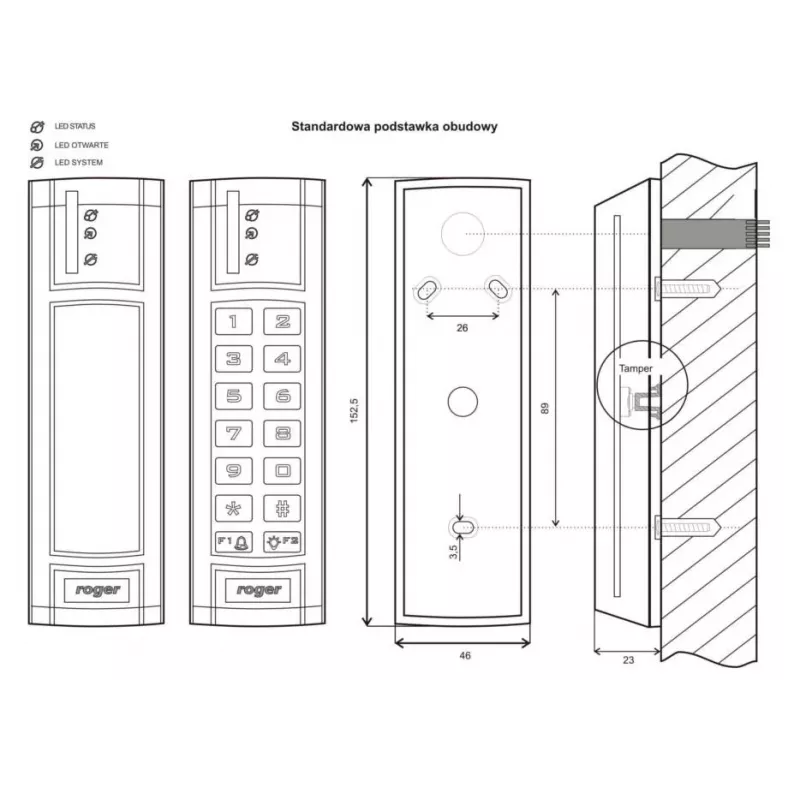

• Mounting Type: Surface Mount
• Tamper Protection: Optical tamper switch
• Cable Length: 0.5 m (pre-wired)
• Color: Grey
• Certifications: CE

Recommendations

For optimal performance, use with ROGER access control panels or any controller with Wiegand/Dallas input. Ensure proper mounting and cable connections to maintain IP67 integrity.
