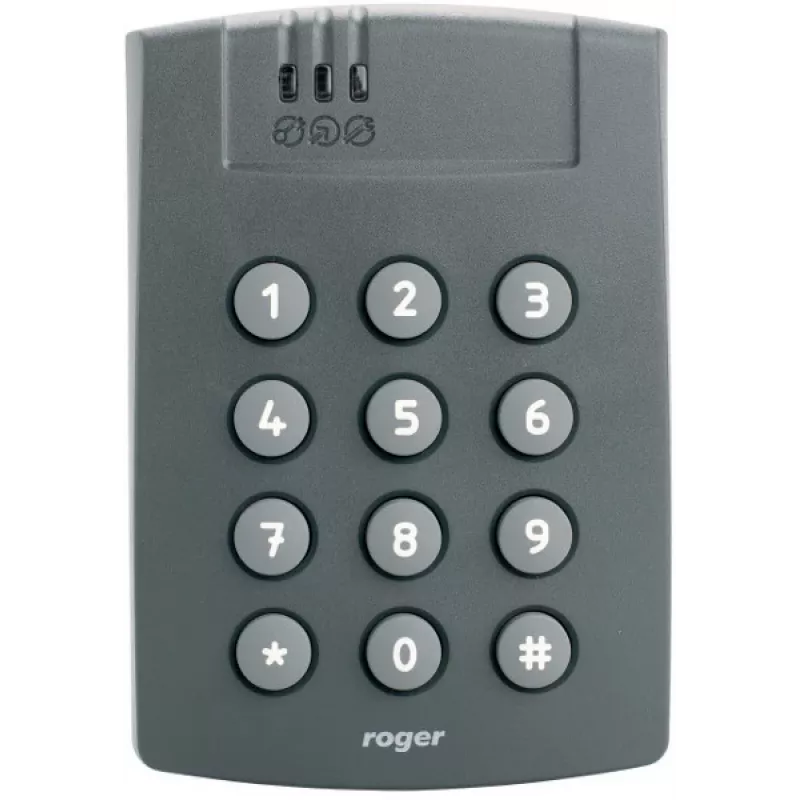

ROGER MCT64E-IO Proximity Reader EM 125 kHz RS485 Wiegand IP65

The ROGER MCT64E-IO is a compact and versatile proximity reader designed for access control systems. It supports EM 125 kHz transponders and offers multiple communication interfaces including RS485 (RACS 5), Wiegand, and Data/Clock, making it compatible with a wide range of controllers. With its robust IP65-rated housing, it is suitable for both indoor and outdoor installations.

Advantages

Flexible configuration via jumpers or RACS 5 software, dual LED indicators and buzzer for clear user feedback, and two configurable inputs and outputs for integration with external devices.

Suitable for

• Access control systems in commercial buildings
• Secure entry points in industrial facilities
• Integration with ROGER RACS 5 or third-party controllers

Key specifications

• Transponder Technology: EM 125 kHz
• Reading Range: Up to 10 cm
• Communication Interfaces: RS485 (RACS 5), Wiegand, Data/Clock
• Inputs: 2 (NO/NC configurable)
• Outputs: 2 (Open Collector, 30V/1A)
• Power Supply: 10-15 VDC
• Current Consumption: Max. 100 mA
• Ingress Protection: IP65
• Operating Temperature: -25°C to +55°C
• Housing Material: Polycarbonate
• Indicators: 2x LED (Red/Green), Buzzer
• Mounting: Surface Mount

Recommendations

For optimal performance, use with ROGER RACS 5 controllers. Ensure proper sealing of cable entries to maintain IP65 rating.
