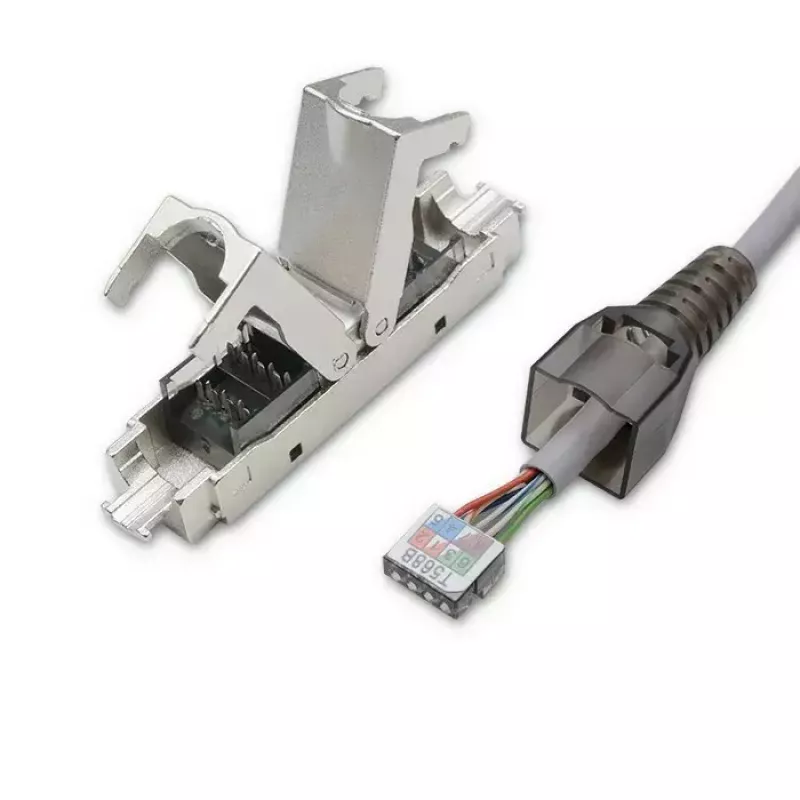

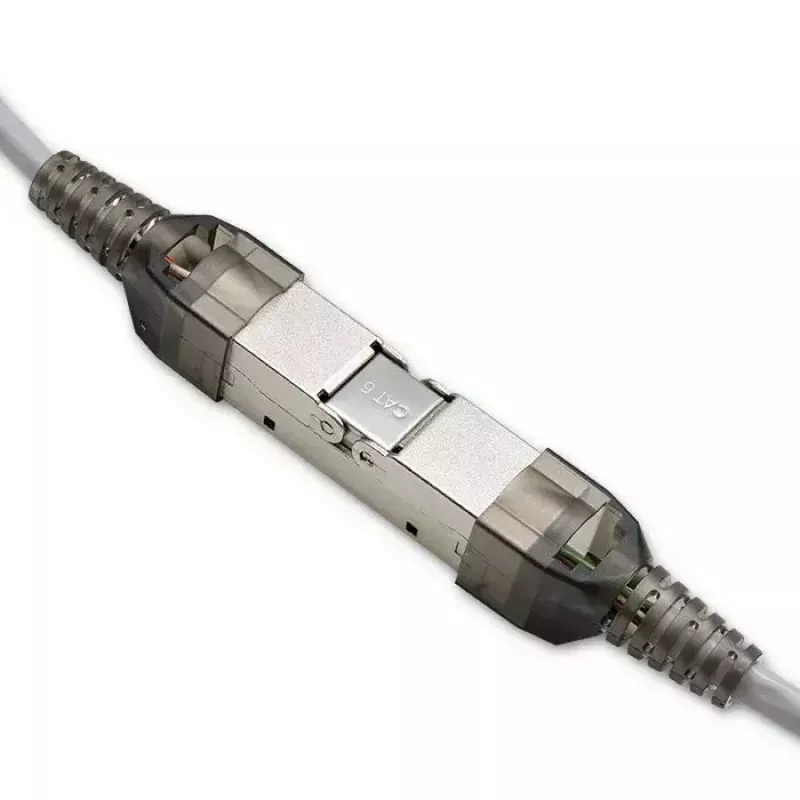

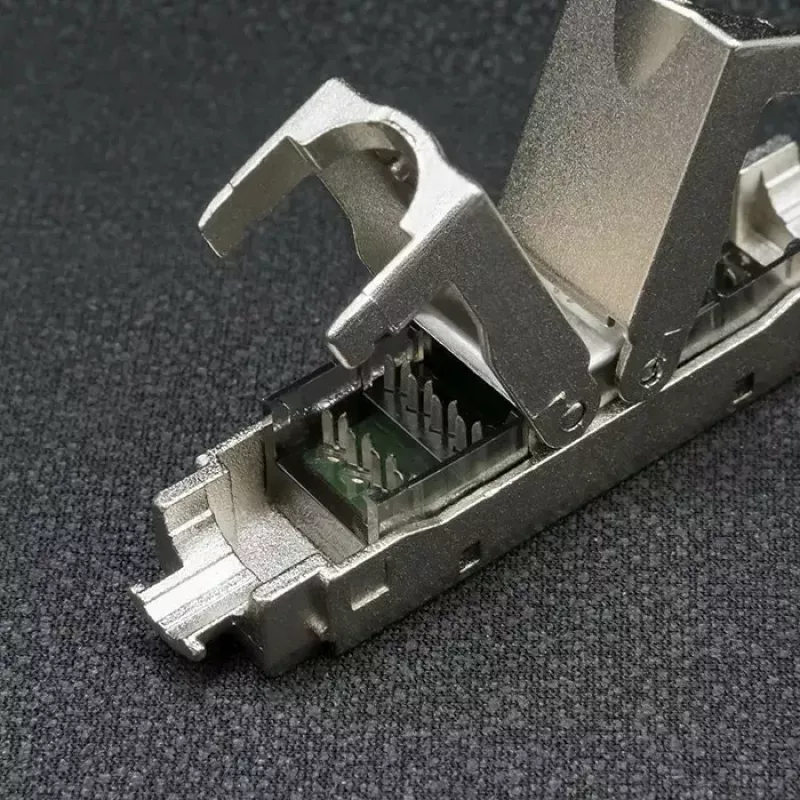

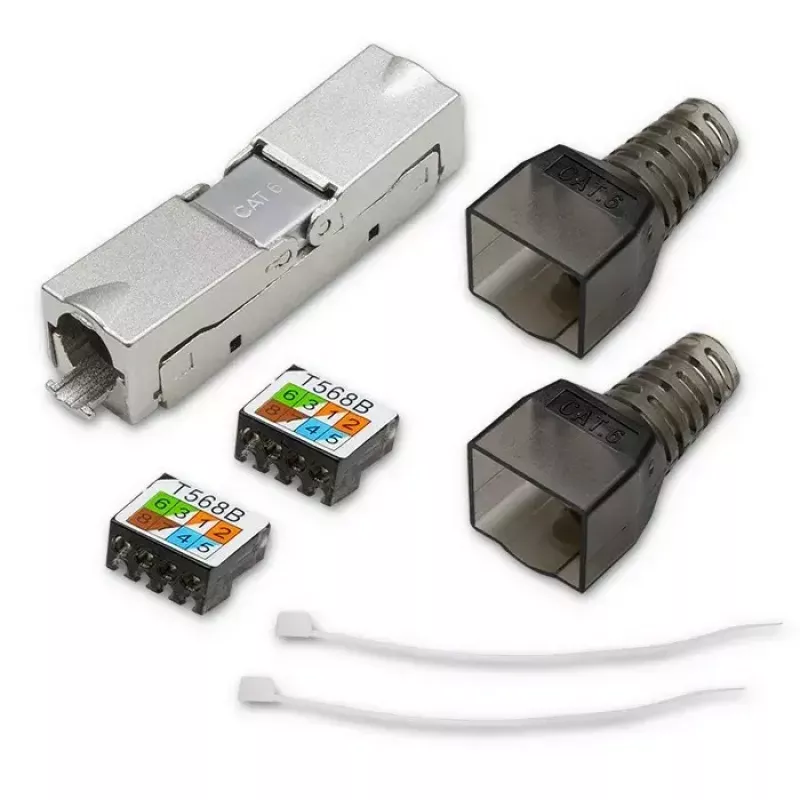

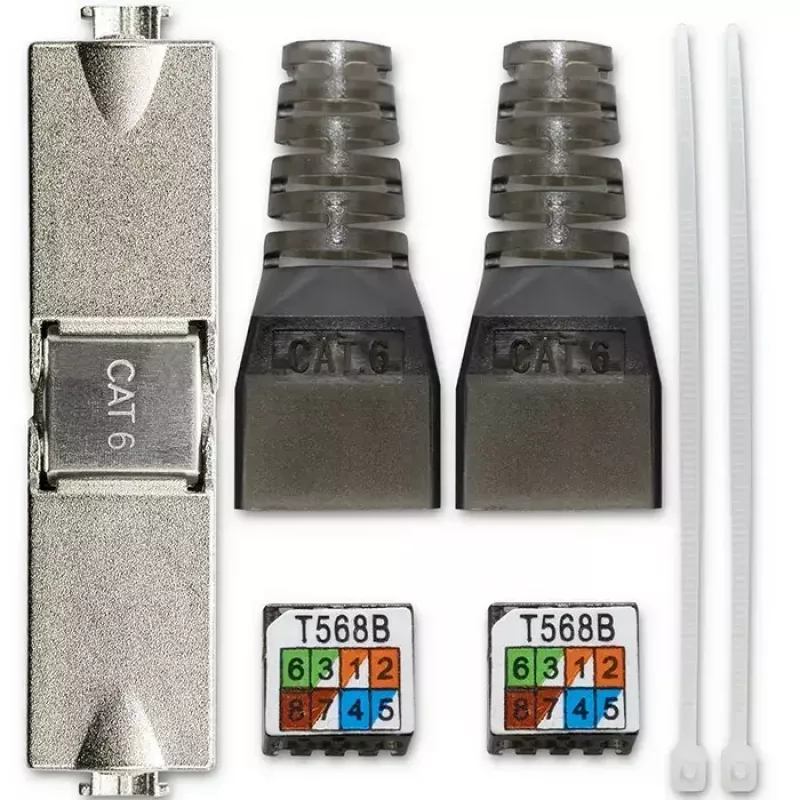

RJ45 toolless plug QOLTEC 54540 CAT6 STP for shielded Ethernet cables

Toolless RJ45 plug QOLTEC 54540 CAT6 STP is a connector designed for terminating shielded CAT6 Ethernet cables without the need for crimping tools. The plug preserves cable shielding and provides a reliable RJ45 connection for network installation, patch leads and repairs. Its toolless assembly simplifies field work and small-scale installations while maintaining the electrical and mechanical characteristics required for CAT6 STP cabling.

Advantages

The toolless design enables fast termination of shielded Ethernet cables, reducing time spent on assembly and minimizing the need for specialized equipment. The CAT6 STP form factor supports full pair shielding to reduce electromagnetic interference and maintain signal integrity. The plug provides a stable mechanical grip on the cable and a standard RJ45 interface for compatibility with switches, routers and patch panels. Materials and contact arrangement are chosen to meet the performance expectations of CAT6 installations.

Suitable for

• Field termination of shielded CAT6 cables without crimping tools
• Creating or repairing short patch leads in office or home networks
• On-site network maintenance where preserving cable shielding is important
• Small installations and quick network extensions

Key specifications

• Category: CAT6, shielded twisted pair (STP) compatible
• Connector type: 8P8C (RJ45) male
• Assembly: toolless termination, no crimping tool required
• Shielding retention: maintains foil/braid continuity to the connector body
• Contact arrangement: standard 8-conductor layout for Ethernet up to CAT6 performance
• Suitable conductor sizes: typical CAT6 stranded/solid conductors
• Use environment: indoor network installations (office, home, server rooms)

How to use

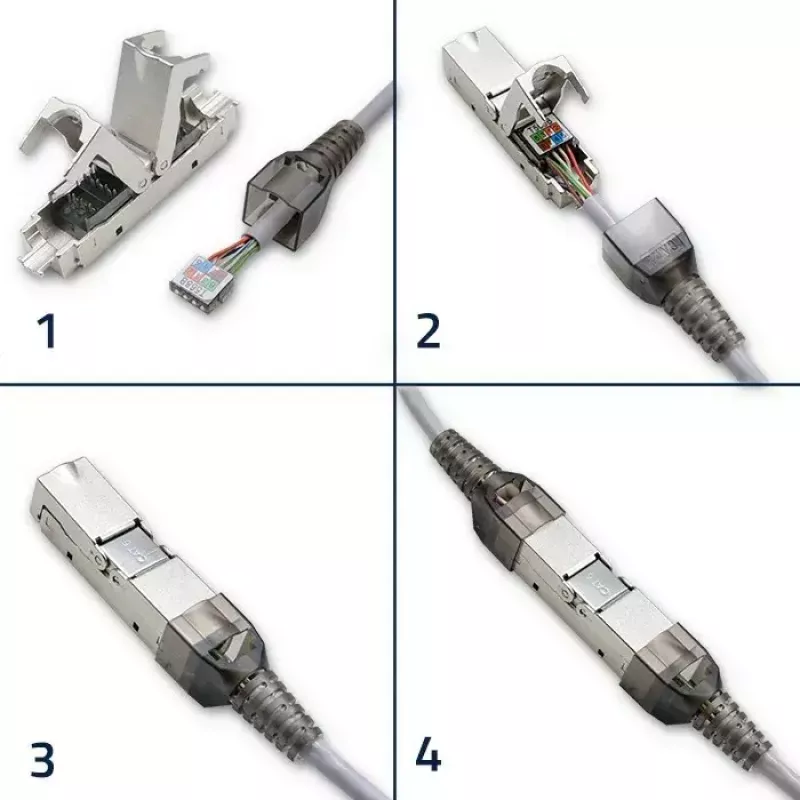

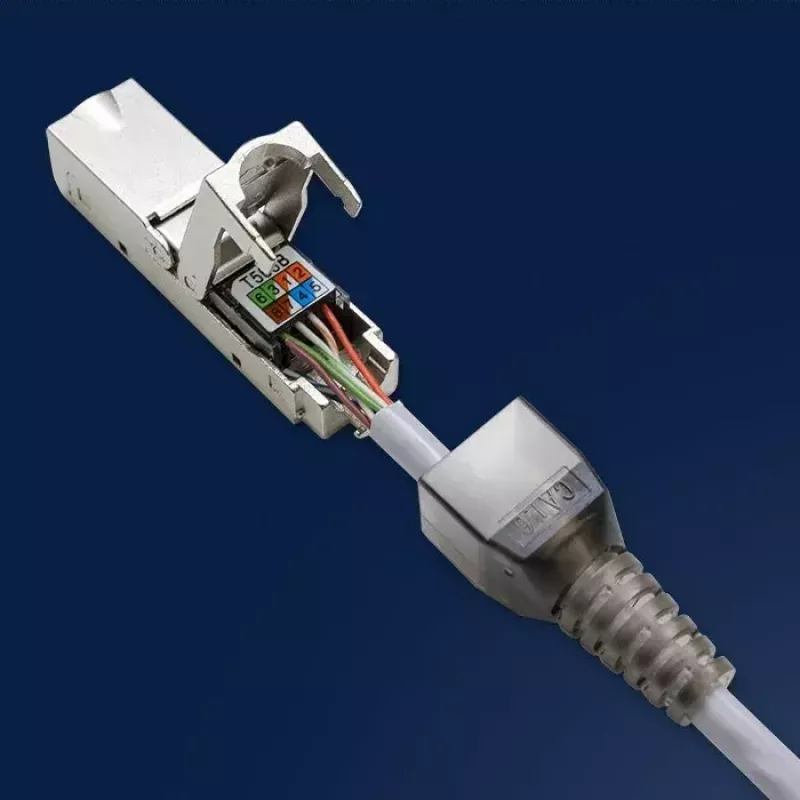

Prepare the shielded CAT6 cable by removing the outer jacket to the recommended length, exposing the foil or braid and the insulated conductors. Untwist pairs only as much as necessary for termination. Slide the connector over the cable end so that shielding makes contact with the plug's shield retention feature and arrange conductors in the correct order for the chosen wiring standard (TIA/EIA 568A or 568B). Engage the toolless mechanism according to the manufacturer's assembly steps until the contacts secure the conductors and the shield is fixed. Verify mechanical retention by a gentle pull test and test the connection with a cable tester to confirm signal continuity and pair integrity.

Recommendations

Use the plug with properly prepared shielded CAT6 cables and follow the wiring standard consistently. Avoid excessive untwisting of pairs and ensure the shield is adequately connected to the plug body to preserve EMI protection. Verify performance after termination with a suitable network tester and limit use to appropriate indoor-rated installations.
