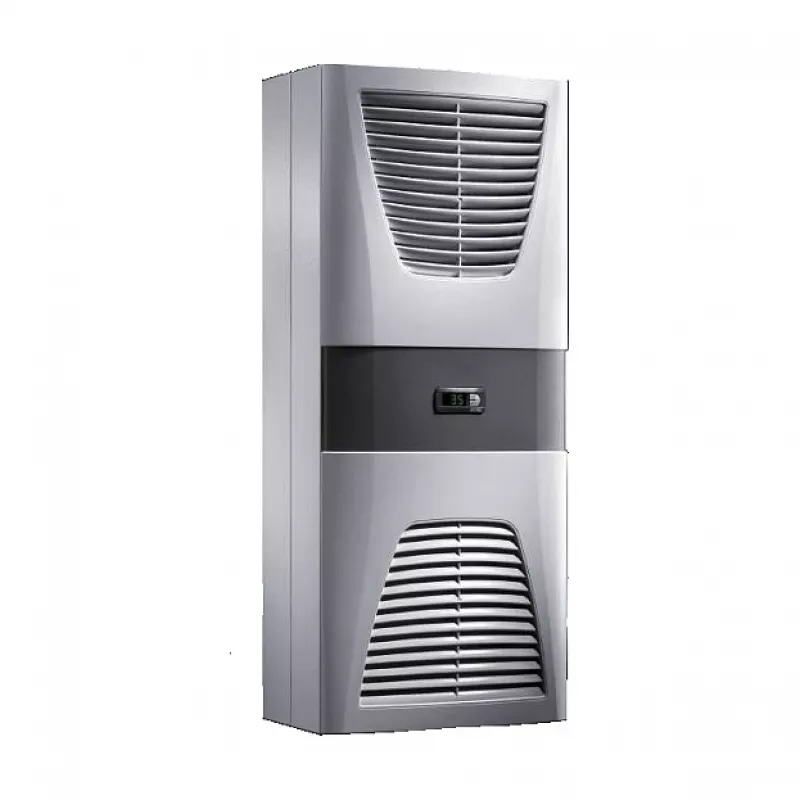

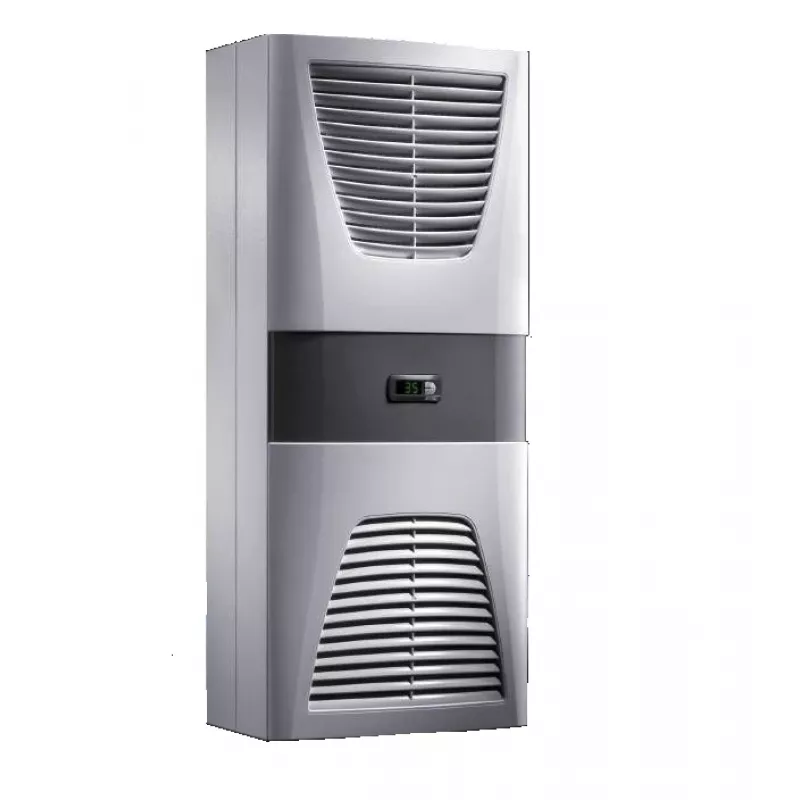

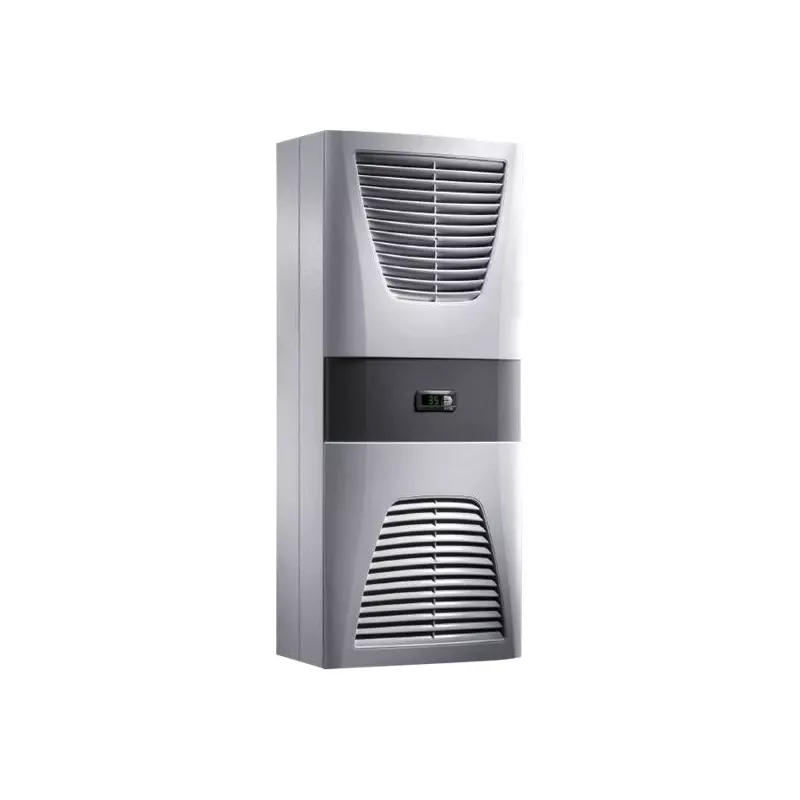

Rittal Blue e Wall-Mounted Cooling Unit 1500W with e-Comfort Controller

Delivering 1500 W of cooling power at L35 L35, the Rittal Blue e Wall-Mounted Cooling Unit keeps sensitive electronics at optimal temperatures even under demanding conditions. Its e-Comfort Controller provides advanced diagnostics and remote monitoring, ensuring your enclosure climate is always under control.

Overview

The Rittal Blue e series represents the pinnacle of enclosure climate control, combining robust construction with smart technology. This wall-mounted cooling unit operates on 230 V single-phase power and consumes a maximum of just 0.8 kW, offering an impressive energy-to-cooling ratio that reduces operational costs without compromising performance.

What stands out

• High cooling capacity of 1500 W (L35 L35) and 1200 W (L35 L50) for demanding applications.
• e-Comfort Controller provides advanced diagnostics and remote monitoring capabilities.
• Dual-circuit airflow (700 m³/h internal, 800 m³/h external) ensures optimal heat exchange.
• Robust sheet steel housing with RAL 7035 light grey finish, suitable for industrial environments.
• IP54 internal and IP34 external protection, guarding against dust and water splashes.

Technical details

• Rated Operating Voltage: 230 V, 1~
• Frequency: 50 Hz / 60 Hz
• Max. Power Consumption: 0.8 kW
• Refrigerant: R134a, 500 g
• Controller: e-Comfort Controller
• Mounting: Wall-mounted
• Housing Material: Sheet steel
• Colour: RAL 7035 (Light Grey)
• IP Protection: Internal IP54, External IP34
• Operating Temperature Range: +10 °C to +55 °C
• Air Throughput (Internal Circuit): 700 m³/h
• Air Throughput (External Circuit): 800 m³/h
• Sound Pressure Level: 66 dB(A)
• Approvals: UL/cUL Recognized, TÜV, GOST, cULus, EAC

Our verdict

The Rittal Blue e Wall-Mounted Cooling Unit is a reliable and efficient solution for industrial enclosure climate control, combining high cooling capacity with smart monitoring and robust construction.
