Riser Card PCI Express x1 to x16 DeLOCK 85762

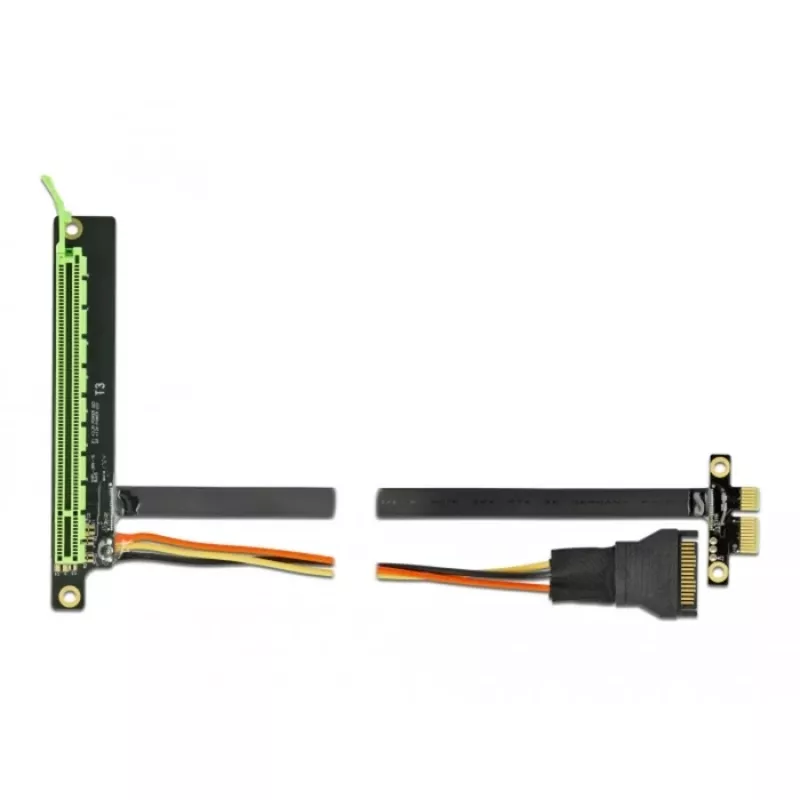

This PCI Express riser card by DELOCK (model 85762) adapts a PCIe x1 host slot to a PCIe x16 output connector. A flexible 30 cm cable connects the two ends and enables space-saving installation and improved airflow inside the computer case. The product is internally mounted and comes in black and green colour options.

Advantages

The flexible 30 cm cable allows versatile positioning of the PCIe x16 card while reducing strain on the motherboard slot. Internal design facilitates tidy cable routing and better cooling. The adapter preserves PCIe signal compatibility between the host x1 interface and the x16 card connector.

Suitable for

• Installing a PCIe x16 card where space around the motherboard slot is limited
• Rearranging components to improve airflow in a PC case
• Compact or custom builds that require angled or displaced GPU/Riser placement

Key specifications

• Host interface: PCIe (x1)
• Output interface: PCIe (x16 connector)

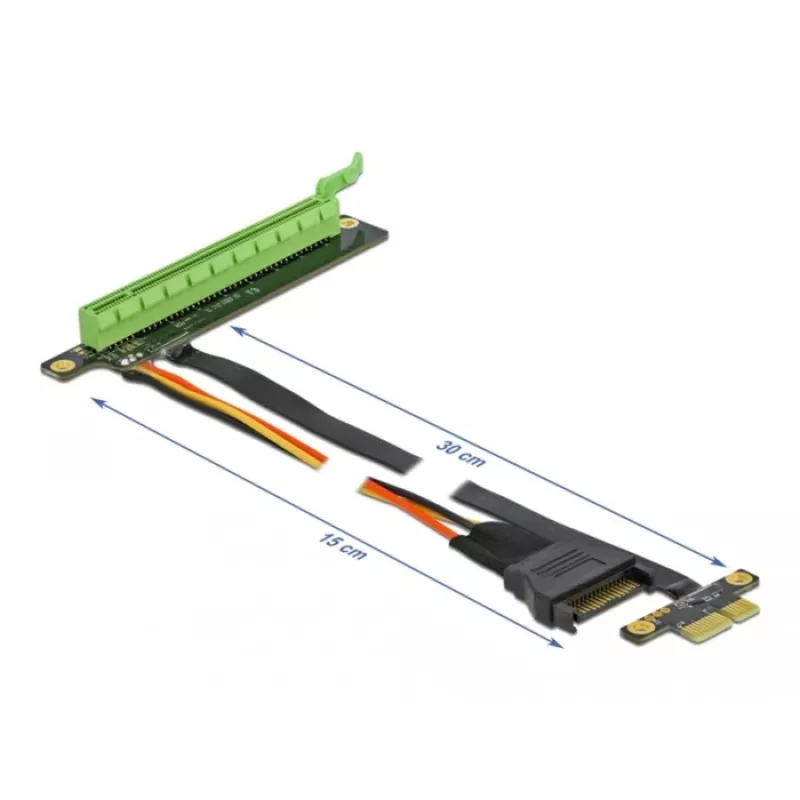

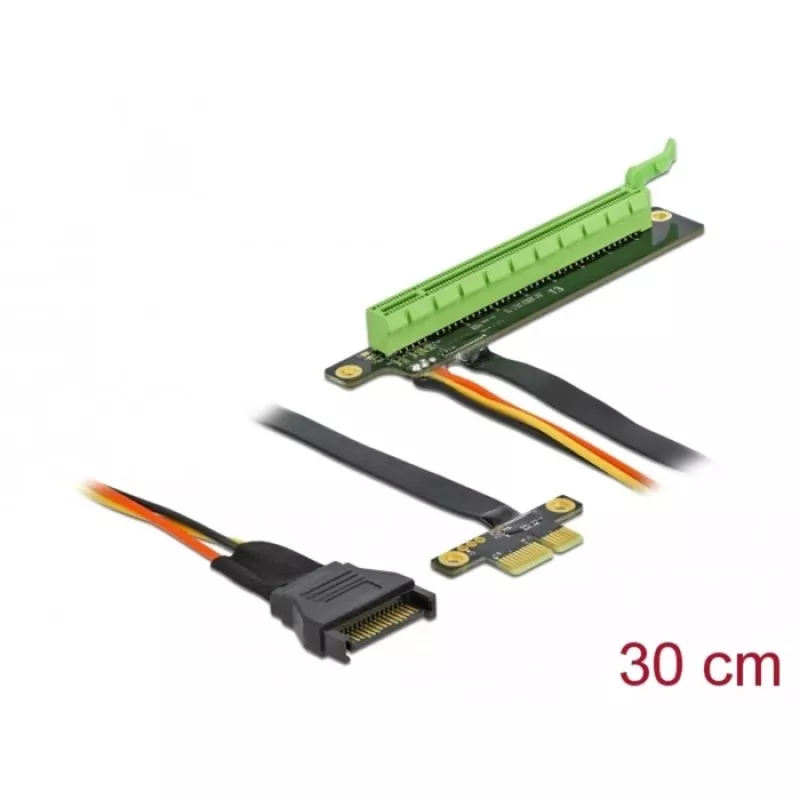

• Cable length: 30 cm (flexible)
• Mounting: Internal
• Product colours: Black, Green
• Manufacturer: DELOCK, MPN 85762, EAN 4043619857623

How to use

Power off the computer and disconnect it from mains. Insert the riser card’s PCIe x1 edge into the corresponding motherboard slot and secure it if required. Connect the PCIe x16 card into the riser’s output connector. Route the flexible cable in the case to avoid sharp bends and to maintain clearance for other components. Reassemble the case, reconnect power and boot the system to verify the device is recognized.

Recommendations

Use the riser in compatible systems only; ensure the motherboard supports PCIe x1 devices and that the installed card does not exceed the case’s thermal or power limits. Avoid excessive cable bending and secure the board to prevent movement during operation.
