DeLOCK Riser Card PCI Express x1 male to x1 slot 90° angled with FPC cable 30 cm

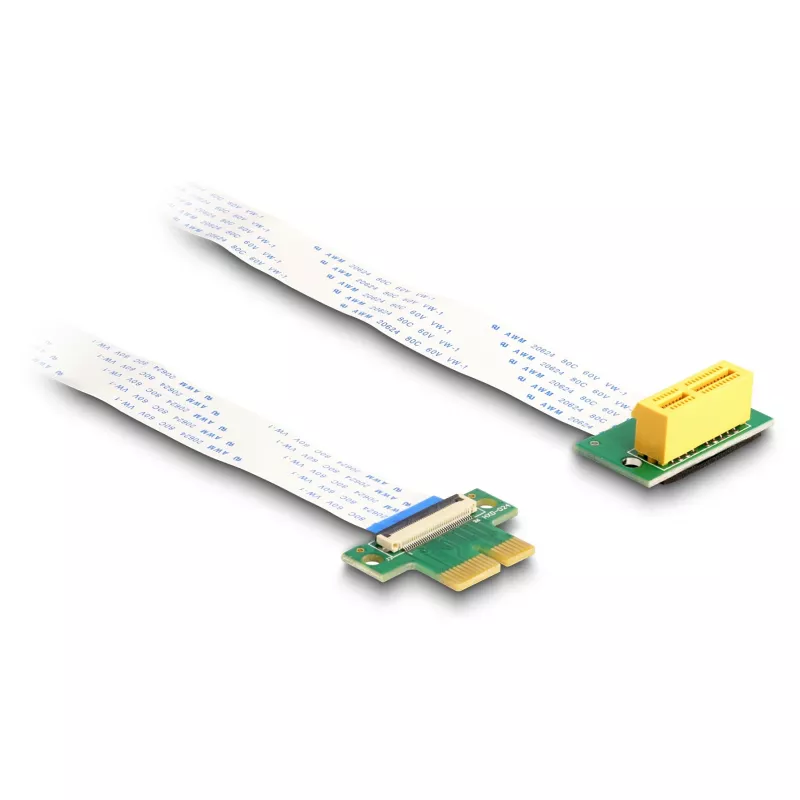

The DeLOCK Riser Card PCI Express x1 male to x1 slot 90° angled with FPC cable 30 cm is a compact adapter that lets you connect a PCI Express x1 card where direct insertion is not possible. It features a PCI-E x1 male connector and a 90° angled PCI-E x1 slot connected by a 30 cm ultra-flexible FPC (Flexible Printed Circuit) cable, enabling space-saving installation inside the computer case. The product is CE certified and designed for reliable signal transmission in constrained layouts.

Advantages

The FPC cable construction uses a flexible printed circuit instead of conventional copper wires, providing exceptional bendability while remaining robust. The 90° angled slot and 30 cm cable length allow installation in tight enclosures or non-standard orientations without stressing the slot or card connections. The adapter has a white housing and standard PCI-E x1 interface compatibility.

Suitable for

Key specifications

How to use

Power off the computer and disconnect it from the mains before installation. Insert the PCI-E x1 male connector of the riser card into the motherboard x1 slot, then secure or position the 90° angled slot in the desired orientation inside the case. Insert the PCI-E x1 card into the angled slot until it is fully seated. Reconnect power and test the system to confirm the card is recognized. Avoid sharp bends and excessive twisting of the FPC cable during installation.

Recommendations

Ensure the system is powered down and grounded when handling internal components. Keep the FPC cable gently routed with gradual curves and avoid pinching to maintain signal integrity and mechanical longevity.
